| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $182.27 | $178.55 | $172.97 | $165.53 | Contact US |

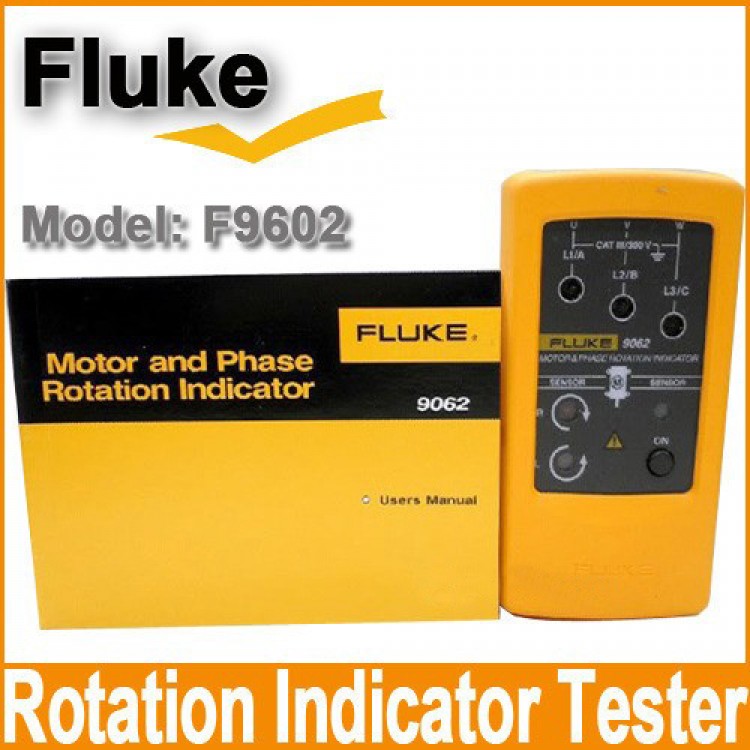

New Fluke F9062 Motor Phase Rotation Indicator Meter Tester
Purpose made for commercial and industrial environments, the fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible.
Main Features:
- 3 phase indication
- Indication of phase rotation
- Indication of motor rotation direction
- Contact free determination of the rotation direction of running motors
Specifications:
|
Technical Specifications |
|
|
Voltage range |
Up to 400 V |
|
Phase Display |
120-400 V AC |
|
Frequency range |
2-400 Hz |
|
Operating timer |
Continuous |
|
Environmental Specifications |
|
|
Operating temperature |
0 °C to 40 °C |
|
Operating Altitude |
Up to 2000m |
|
Humidity (Without Condensation) |
15 % to 80 % |
|
Dust/water resistance |
IP 40 |
|
Safety Specifications |
|
|
Electrical Safety |
EN 61010, |
|
EN 61557-7 |
|
|
Overvoltage category |
CAT III, 300 V |
Package Including:
- 1 x Fluke 9062 Phase Rotation Indicator Tester
- 3 x Test Leads
- 3 x Test Probes
- 3 x Alligator Clips
- 1 x English Manual
