Tags: I350T4V2BLK
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $52.70 | $51.63 | $50.02 | $47.86 | Contact US |
Description:
- Based on the new Intel I350-T4V2 Gigabit Ethernet Controller,the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM System x are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters.These adapters showcase the industry's first fully integrated,multi-port PCIe 2.1 GbE controllers,providing a smaller footprint and lower power dissipation.
- In addition,these adapters offer advanced features,including support for multi-core processors and server virtualization,as well as a scalable PCI Express 2.1 interface.Intel's first eco-friendly,halogen-free design combines low power use and low cost for one of the best price to performance ratios in a multi-port solution that is available today.
Specification:

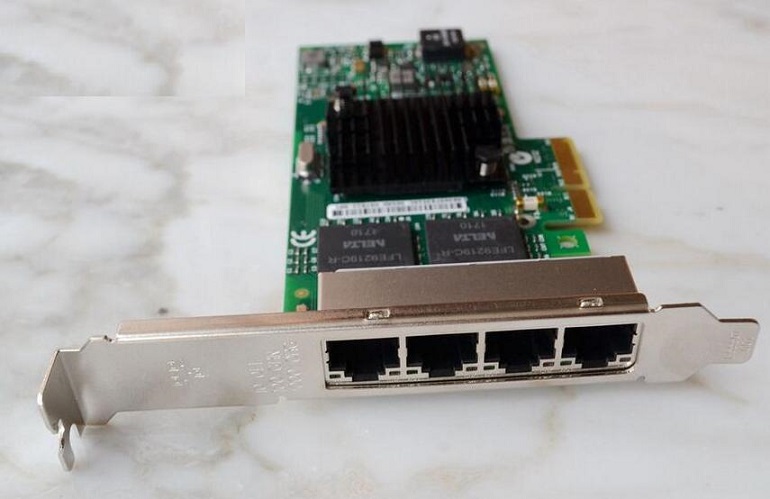

- Four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- Based on Intel I350-T4V2 ASIC (quad-port MAC/PHY controller)
- PCIe 2.1 x4 host interface
- Low-profile card form factor
- Wake on LAN support
- Preboot eXecution Environment (PXE) boot support
- VLAN support with VLAN tag insertion,stripping,and packet filtering for up to 4096 VLAN tags
- ISCSI boot support (built-in software iSCSI initiator)
- ISCSI support with native operating system initiators
- Jumbo frame support
- Intel I/O Acceleration Technology (I/OAT) acceleration
- Intel Virtual Machine Device Queues (VMDq) support for VMware with eight queues per port
- TCP/IP checksum offload
- TCP/IP segmentation offload/large-send offload support

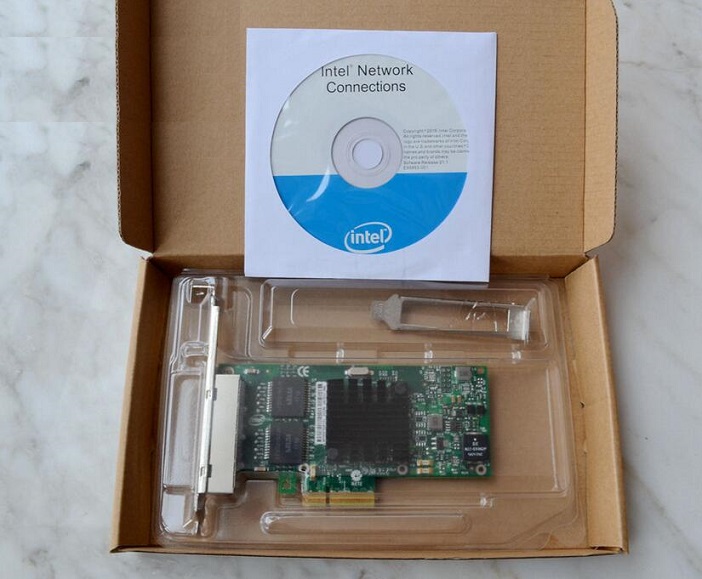

Package List:

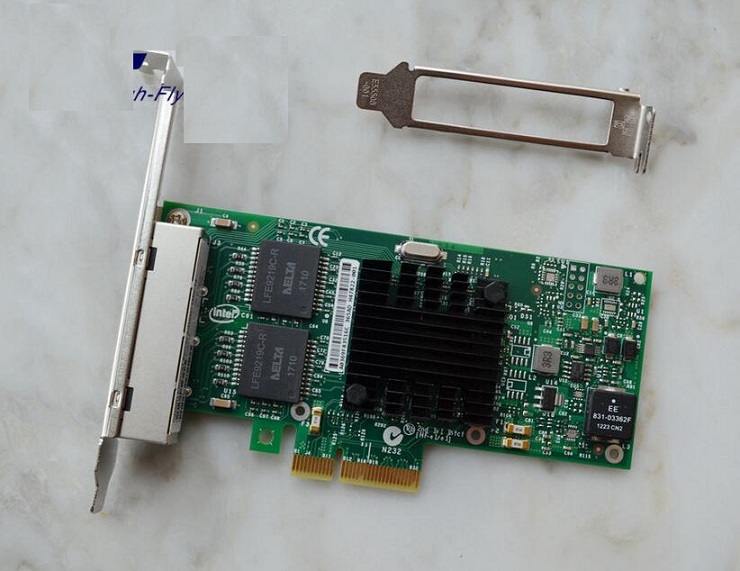

- 1 x Intel Server Adapter I350-T4V2 4-Port PCI-Express Card
- 1 x CD driver
- 1 x Standard low profile bracket
- 1 x Standard high profile bracket
