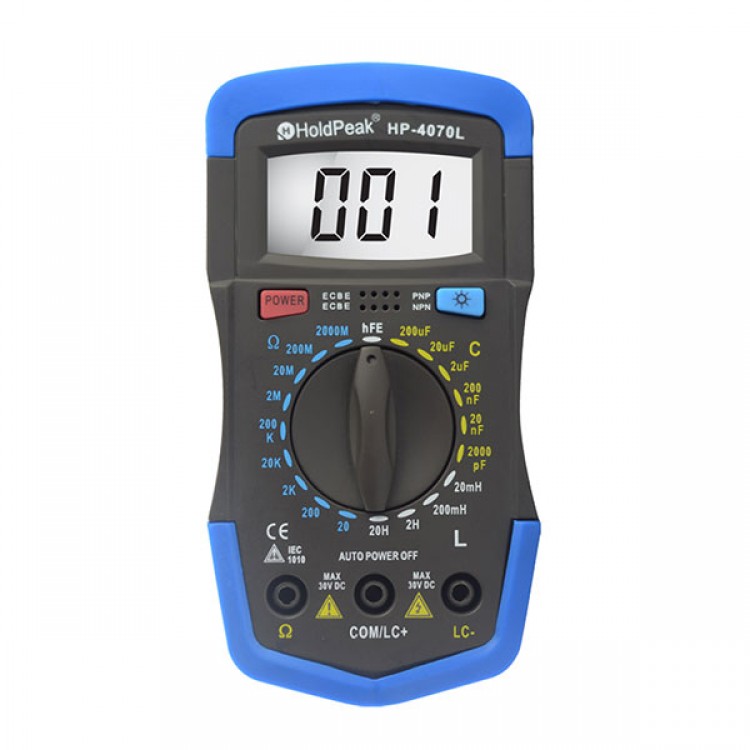

NEW LCR Meter Inductance Capacitance Resistance Multimeter Ohm Inductor CAP Test
Introduction:
- Streamlined appearance design, beautiful shape, firm structure, convenient operation and complete function , good for measuring the resistance, capacitance, inductance, triode HFE test, and have the backlight configuration, overload protection function, is the ideal choice of fieldwork, LABS, factories, schools and electronic amateur
Function |
Measurement Range |
Accuracy |
Resistance |
20Ω |
±(1.2%+30) |
200Ω/2KΩ/20KΩ/200KΩ |
±(1.0%+20) |
|
2MΩ/20MΩ |
±(2.0%+25) |
|
200MΩ |
±(5.0%+25) |
|
2000MΩ |
||
Capacitance |
2000PF |
±(2.5%+30) |
20nF/200nF |
±(2.5%+25) |
|
2μF/20μF |
±(2.5%+30) |
|
200μF |
±(7.0%+50) |
|
Inductance |
20mH/200mH/2H/20H |
±(2.5%+25) |
Backlight, Transistor test, Auto-power off, Measurement selector |
√ |
|
Maximum Display |
1999 |
|
LCD Dimension |
60*54mm |
|
Input Impedance |
10mΩ |
|
Power Supply |
9V battery (6F22) |
|
Color |
Blue+ dark grey |
|
Machine Dimension |
143*75*32mm(include the protecting jacket) |
|
Accessories |
Test probe, protecting jacket, instruction book |
|
Weight |
200g |
Specification:
Product Name: LCR meter
Product Model: 4070L
Feature
CE certification
LCD high accuracy and unit symbol display
Accuracy dial gear, durable in use
Protecting jacket, antislip and shockproof, comfortable hand feeling
Auto power-off function
