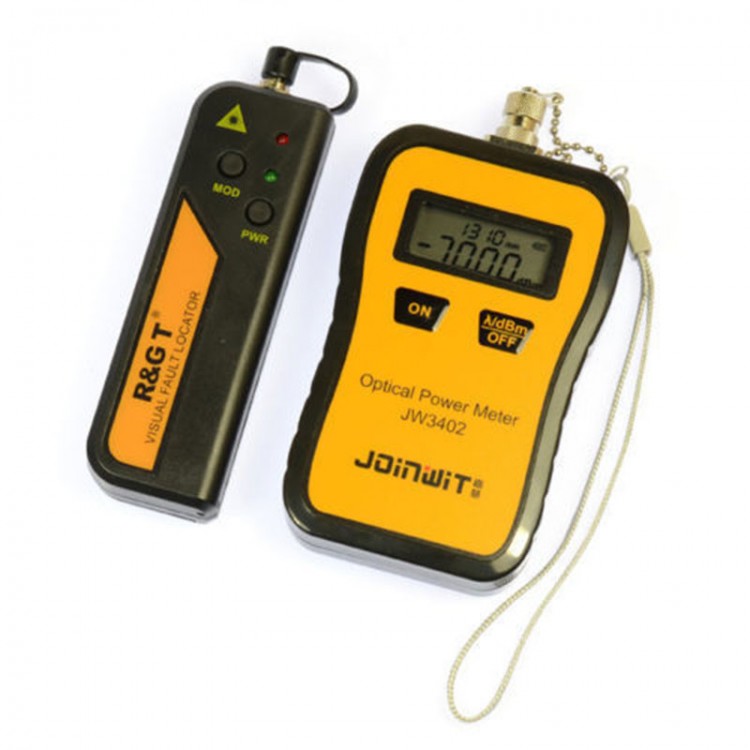

New Optical Power Fiber Meter 10mW Visual Fault Locator Fiber Optic Cable Tester

Availability: In stock, usually dispatched in 1 business day

Price:$39.99
Price in reward points: 400 Reward Points: 4

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$39.19	$38.39	$37.19	$35.59	Contact US

Product details
Reviews (0)

Features

Self-calibration function.

High performance import laser detector.

High sensitivity and large dynamic range

0.01 dBm precision

Automatically converted Range

Small size, light weight, high reliability

Battery-powered, convenient field work

Line display or relative loss displayed.

Applications

Fiber optic production and research

Testing and maintenance of fiber-optic network

Teaching and testing in optical communication

Specification

JW3402 Mini Optical Power Meter

Type	JW3402A
Wavelength(nm)	850,1300,1310,1490,1550,1625nm
Detector	InGaAs
Measurement Range (dBm)	-70~+6
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625nm
Resolution(dB)	0.01
Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3xAAA)Without Batteries
Battery Operating Time	360 hours with three 1.5V batteries
Operating Temperature(°C)	-10 ~ +60
Storage Temperature(°C)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	105X65X20
Weight(g)	90

10mW 650nm Pen-type Visual Fault Fiber

The 650nm Pen-type Visual Fault Finder is specially designed for field personnel who need an efficient and

economical tool for fiber tracing, fiber routing and continuity cheching in an optical network during and after installation.

It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR

2.5mm universal connector

Operates either in CW or Pulsed

Constant output power

Lower Battery warning

Long battery life(up to 60 hours)

Specifications:

Wavelength	650nm±10nm
Emitter Type	FP-LD laser
Output power	10mW
connector	2.5mm universal adapter
Working mode	Both CW and Pules available
Operating temperature	-10~+45 °C
Storage temperature	-40~+70 °C
Power	2pcs AA battery (not include)
Working hours	≥ 60
Weight	100g (excluding batteries)
Dimension (mm)	220 X 27

Package Includes:

1 x Optical Power Meter
1 x Black Carry Bag
1 x User Manual
1 x Fiber Checker
1 x Black bag
