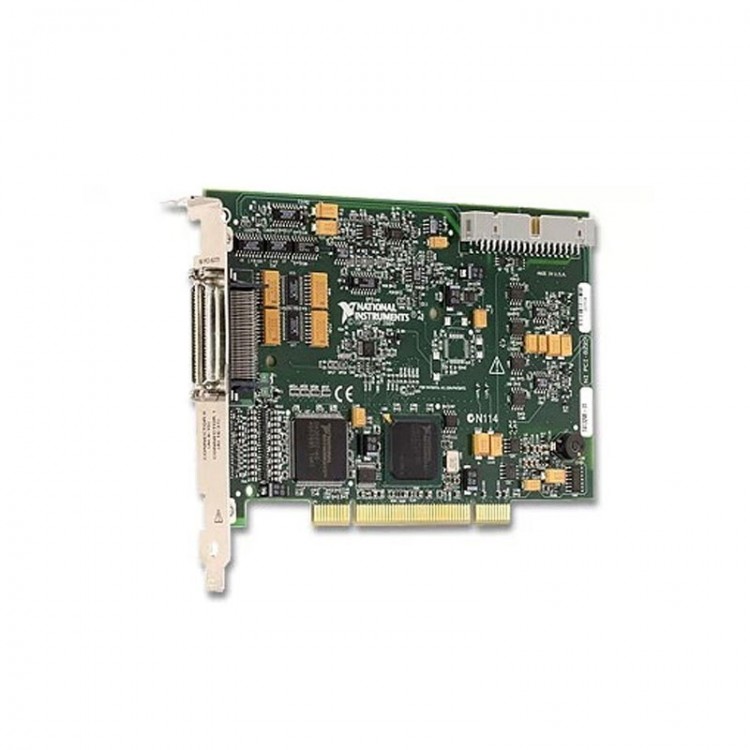

New PCI-6229 DAQ Data Acquisition Card 16Bit 32 Channel Analog Input 779068-01 for NI National Instrument

New PCI-6229 DAQ Data Acquisition Card 16Bit 32 Channel Analog Input 779068-01 for NI National Instrument

Description:
- The NI PCI-6229 is a low-cost multifunctional M-series data acquisition (DAQ) card that is optimized for applications requiring cost control. You can also consider a high-speed M-series device with a sampling rate of 5 times or a high-precision M-series device with a resolution of 4 times and outstanding measurement accuracy.

Features:
- 4-channel 16-bit analog output (833 kS/s)
- Up to 48 digital I/O; 32-bit counter; digital trigger
- Correlated DIO (32 clock lines, 1 MHz)
- For NIST calibration certification and over 70 signal conditioning options
- For NI-DAQmx driver software and for NI LabVIEW SignalExpress interactive data recording software

Driver software:
- M-series devices can be used on a variety of operating systems, and there are three driver software options, including for NI-DAQmx, for NI-DAQmx Base, and measurement hardware for DDK. For NI M-Series device is not compatible with traditional for NI-DAQ (Legacy) drivers.

Application software:
- Each M-series data acquisition device includes a copy for NI LabVIEW SignalExpress, enabling you to quickly acquire, analyze, and display data without programming. In addition to LabVIEW SignalExpress, M-series data acquisition devices are also compatible with the following application software versions (or higher) for NI - for LabVIEW 7.x, for LabWindows/CVI 7.x, or Measurement Studio 7.x; Or for LabVIEW with real-time module 7.1. For NI M-Series data acquisition devices are also compatible with Visual Studio. NET, C/C++, and Visual Basic 6.

Specification:
- Product model: PCI-6229
- Product series: Multifunctional DAQ
- Bus type: PCI
- Product No.: 779068-01
- Operating system/object: for Mac OS, for Windows, real-time system, for Linux
- For LabVIEW RT support: Yes
- DAQ Product Family: M-Series
- Measurement type: Quadrature encoder, digital, voltage, frequency
- Isolation type: None
- The consistency with RoHS instructions: Yes

Analog Input:
- Number of channels: 32, 16
- Single ended channel: 32
- Differential Channel: 16
- Resolution: 16 bits
- Sampling rate: 250 kS/s
- Analog input voltage: 10 V
- Voltage range: - 10 V - 10 V
- Accuracy of voltage range: 3100 μ V
- Sensitivity of voltage range: 97.6 μ V
- Low voltage range: - 200 mV - 200 mV
- Accuracy in small voltage range: 112 μ V
- Sensitivity in small voltage range: 5.2 μ V
- Number of ranges: 4
- Synchronous sampling: No
- Storage on the board: 4095 samples

Analog output:
- Number of channels: 4
- Resolution: 16 bits
- Analog input voltage: 10 V
- Voltage range: - 10 V - 10 V
- Accuracy of voltage range: 3230 μ V
- Low voltage range: - 10 V - 10 V
- Accuracy in small voltage range: 3230 μ V
- Frequency range: 833 kS/s
- Single channel current drive capability: 5 mA

Digital I/O:
- Bidirectional channel: 48
- Input channel only: 0
- Output channel only: 0
- Timing: software, hardware
- Clock rate: 1 MHz
- Logic level: TTL
- Input current: leakage current, source current
- Output current: leakage current, source current
- The programmable input filter: Yes
- Support programmable power on status: Yes
- Single channel current drive capability: 24 mA
- Total current drive capacity: 448 mA
- Watchdog timer: No
- Supports handshake I/O: No
- Support mode I/O: Yes
- Input range: 0 V - 5 V
- Output range: 0 V - 5 V

Counter/Timer:
- Number of counters/timers: 2
- Number of DMA channels: 2
- Buffer operation: Yes
- Short pulse interference cancellation: Yes
- GPS synchronization: No
- Range: 0V - 5V
- Signal source frequency: 80 MHz
- Pulse generation: Yes
- Resolution: 32 bits
- Time base stability: 50 ppm
- Logic level: TTL

Physical standards:
- Length: 15.5cm
- Width: 9.7cm
- I/O connector: 68-pin VHDCI female

Timing/triggering/synchronization:
- Trigger: Number
- The synchronization bus (RTSI): Yes

Package Included:
- 1 x Data Acquisition Card
