Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $156.70 | $153.50 | $148.71 | $142.31 | Contact US |

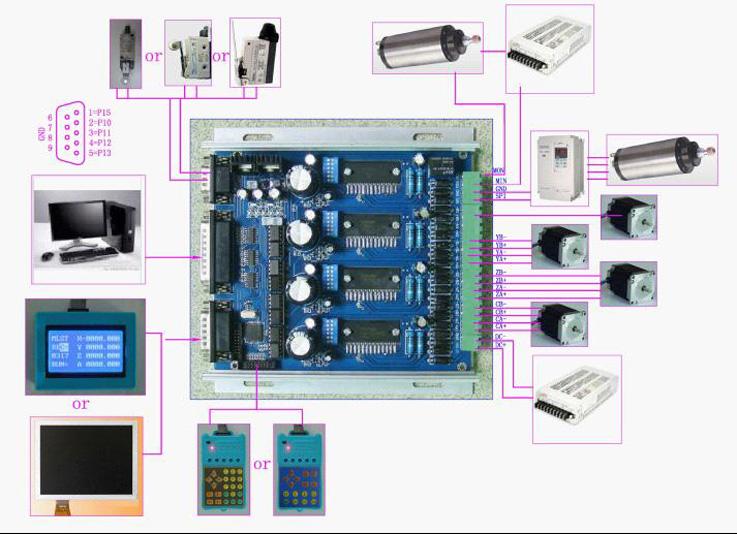

Pro CNC TB6560 4 Axis Stepper Motor Driver + LCD Display + Handle Controller for CNC Engraving Machine
Features:
-1: Pulse can be equipped with an external handle with digital display, with the handle can automatically switch the computer and handle control, mutual non-interference, and automatically shielded handle control functions automatically detect the computer-controlled movement, a few significant track record computer data and handle control of mobile data
-2:Computer path track record of running in the computer processing time can be record keeping, processing data offline automatically repeat the processing run.
- 3:Manually move the processing and record keeping, traceability records manually move the machine data, and automatically repeat the processing run manually move the path.
- 4:Manual data input processing path, and automatically run the input path
- 5:The driver XYZ-axis or Z axis of the knife can be done automatically, without the operation of complex computer software
- 6: Up to 3.5A stepper motor drive current, adjustable.
- 7: Up to 16 segments, higher accuracy, and run more smoothly.
- 8:Overload flow through the temperature automatic protection function, and fully protect your computer and peripherals
- 9: Bipolar constant-current chopper drive, low speed creeping phenomenon, noise, non-resonant region.
- 10: Closed optical isolation, two-stage signal processing, to fully protect your computer and equipment.
- 11:A the road 0-10V/PWM speed control signal output
- 12: Rd input control, you can set the limit, stop, which is divided into the knife
Package List:
- 1 * 4 Axis CNC Stepper Motor Driver TB6560 + LCD Display + Handle Controller
- 1 * DB25 Parallel Cable
- 6 * Terminal
- 1 * CD
