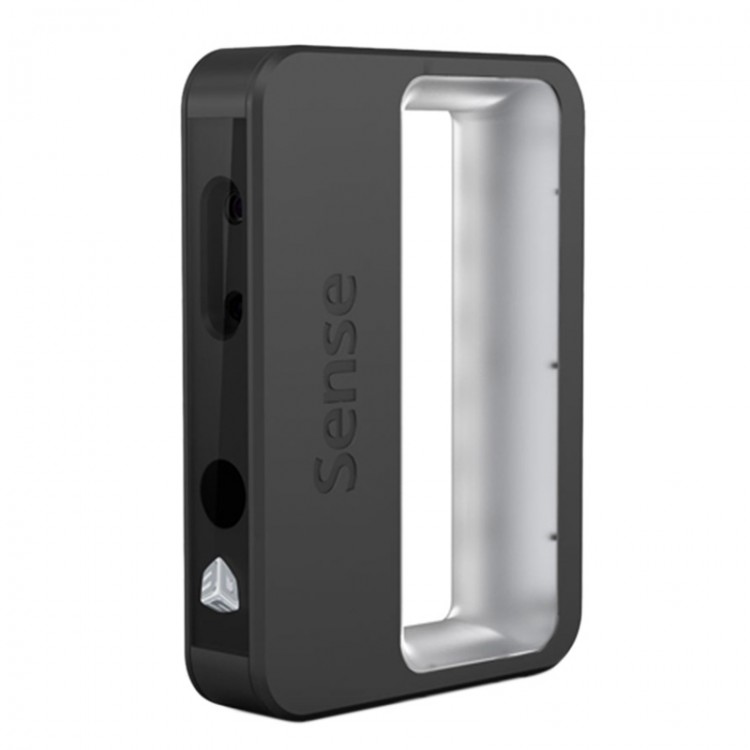

New Sense 3D Scanner 3D Systems Portrait Scanner Still Scanning Support MAC

New Sense 3D Scanner 3D Systems Portrait Scanner Still Scanning Support MAC

Parameters:
1:Product size: 17.8x12.9x3.3cm
2: Automatic recognition of object sizes, such as: books, engine, head / body, high 3 meters to the scene.
3: Suggest environment: indoor light is best, using the proposed halogen lamps, does not recommend the sun.
4: Laser light is safe class 1 laser
5: Sense resolution: 20000 - 400000 triangles
6: Operating system: Windows 7, Windows 8, Windows 8.1.
7: connection: USB 2.0/3.0
8: Output formats: STL and PLY (color data)
9: Power: 2.25W
10: Recommended computer configuration: Intel i5 CPU, 2GB memory, 1280x1024 display, 4GB hard disk.
11: Scan size:: 0.2m x 0.2m x 0.2m minimum, maximum: 3m x 3m x 3m
12: Precision: XY axis resolution: 0.9mm when 0.5 meters, 0.5 meters depth resolution when: 1mm
13: Resolution of image: 240(w) x 320(h) px

Parameters:
- Supported operating systems:
  Windows 7 (32-bit or 64-bit)
  Windows 8  (32-bit or 64-bit)
  Mac OS X 10.8 or later
- Maximum power consumption: 2.25 watts
- Scan volume: Min: 0.2m x 0.2m x 0.2m; Max: 3m x 3m x 3m
- Dimensions: 5.08(w) x 7.08(h) x 1.3(d) inches; 12.9(w) x 17.8(h) x 3.3(d) cm
- Operating range: Min: 0.35m; Max: 3m
- Depth image size: 240(w) x 320(h) px
- Field of view: Horizontal: 45°; Vertical: 57.5°; Diagonal: 69°
- Spatial x/y resolution @ 0.5m: 0.9mm
- Depth resolution @ 0.5m:  1mm
- Operating temperature: 10-40° C
- Data interface: USB 2.0/USB 3.0
- Data format: 16 bit
- Maximal Image Throughput: 30 fps
- USB Cord Length: 213cm
- Color Image Size: 240(w) x 320(h) px
- Hardware recommendations:
  Intel  Core i5™ or equivalent processor
  RAM: 2 GB minimum
  1280 x 1024 minimum screen resolution
  Color: 32-bit
  4 GB available hard disk space

Package included:
- 1 x New Sense 3D Scanner
