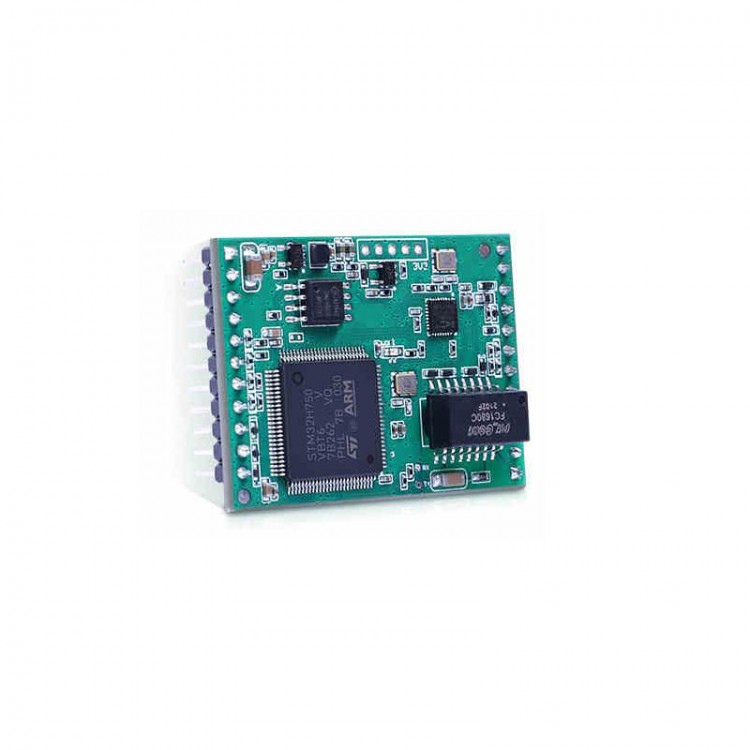

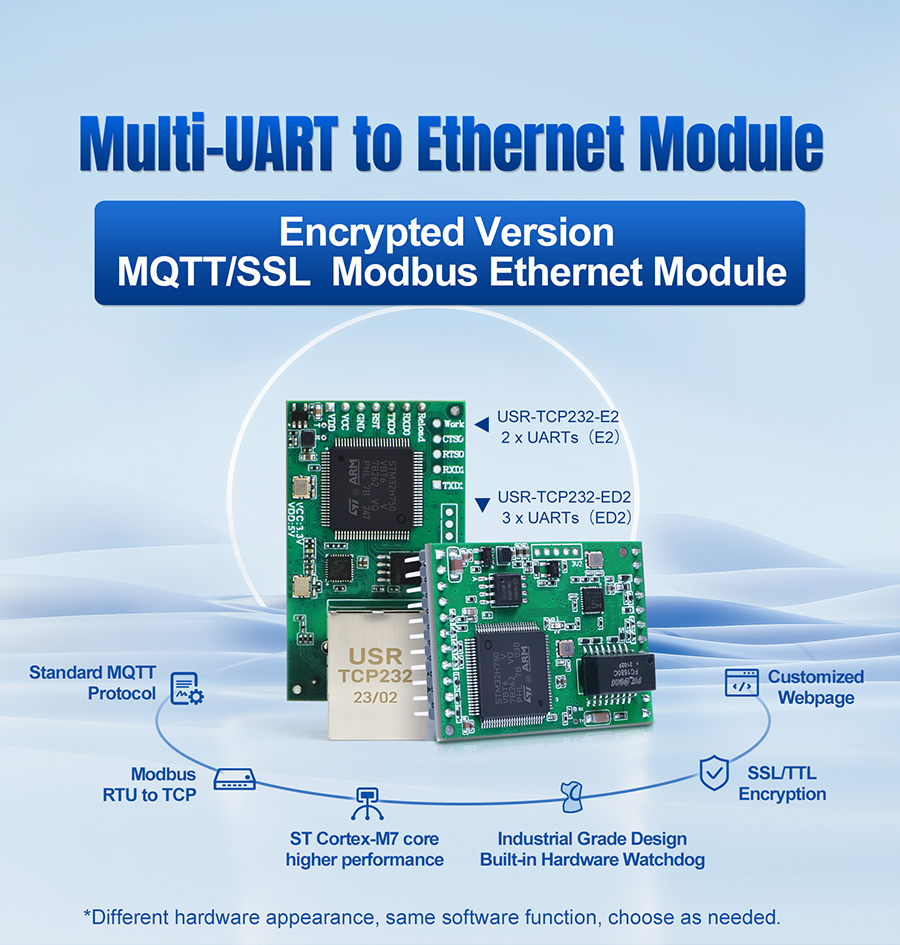

New USR-TCP232-ED2-H7 Ethernet Module 3-Channel Industrial TTL Serial to Ethernet Converter Module Support for TCP Server
Description:

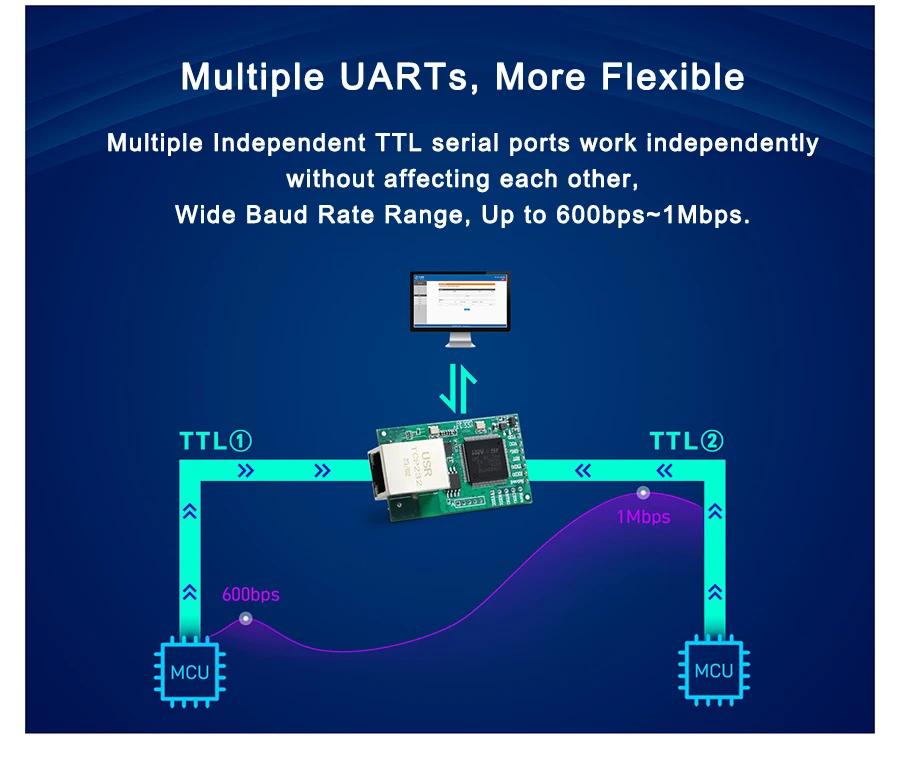

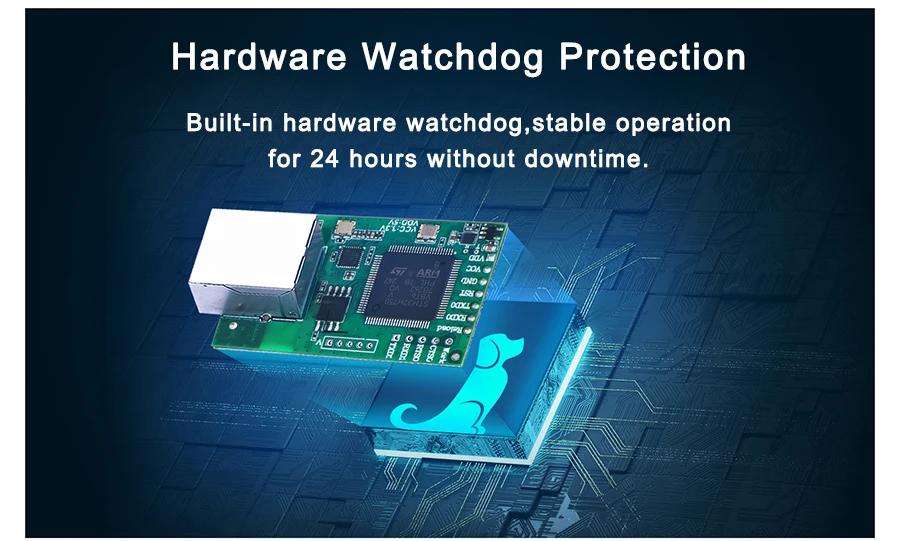

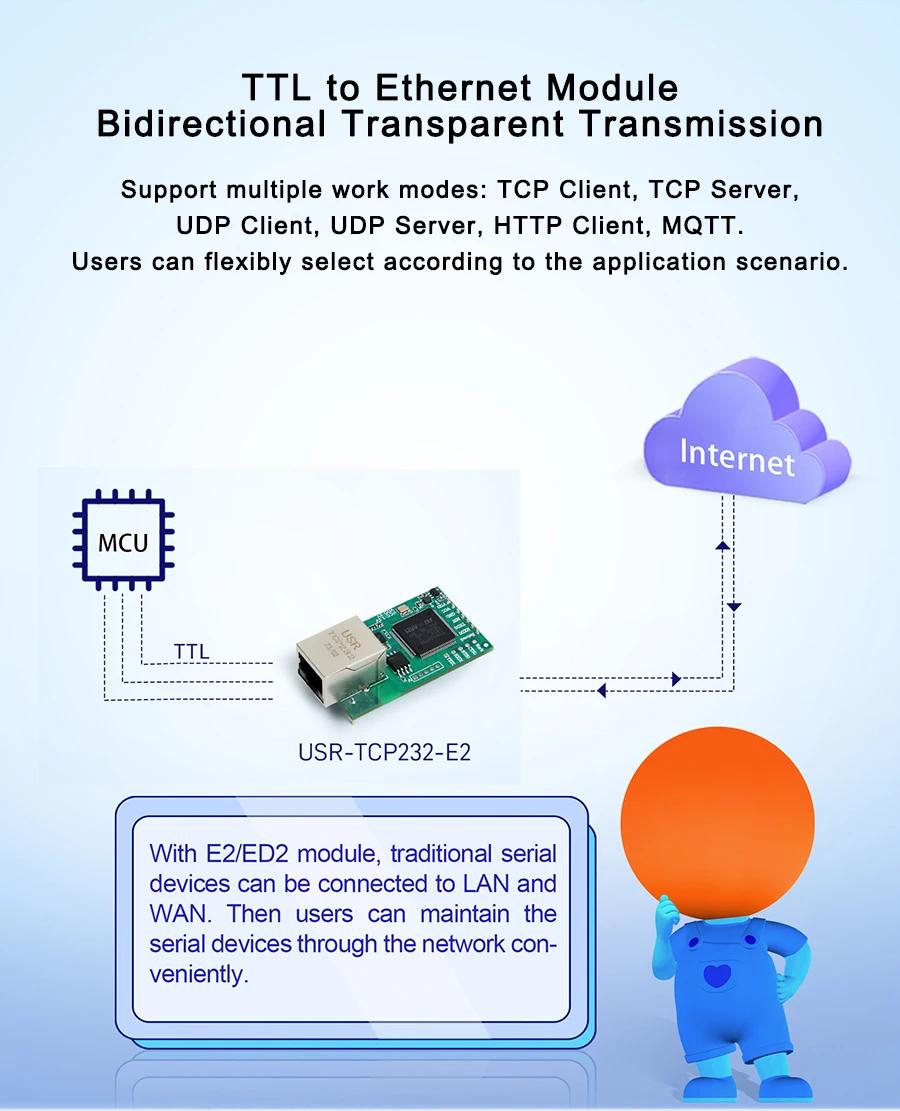

- USR-TCP232-ED2 is a triple UART to Ethernet converter module, industrial design, built-in fully optimized TCP/IP protocol stack, stable and reliable; supports virtual serial port VCOM; supports DNS domain name resolution, Keep-alive mechanism, hardware watchdog.
Features:
- Support TCP server, TCP client and UDP, HTTP operating modes.
- Support RS-485 enable pin of an external RS-485 transceiver.
- Support flow control CTS/RTS, XON/XOFF.
- 10/100Mbps Ethernet interface.
- Flexible data packet condition for the serial interface.
- Support DHCP to configure IP address and other network configuration parameters.
- Support DNS for remote server domain name lookup.

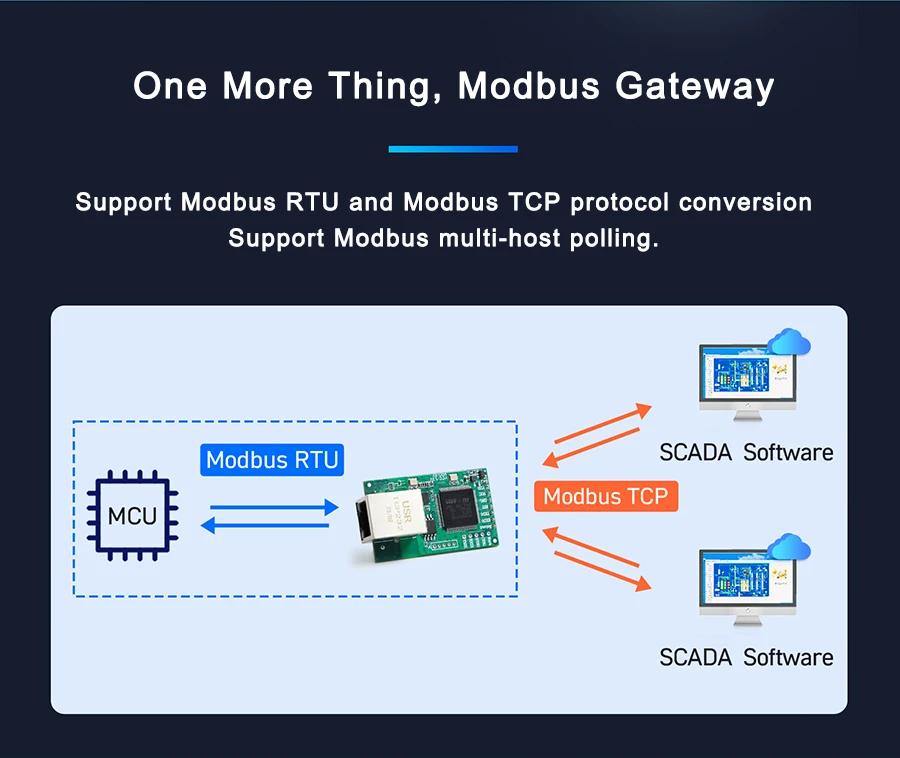

- Support Modbus RTU to Modbus TCP/UDP.
- Support Modbus over TCP/UDP.

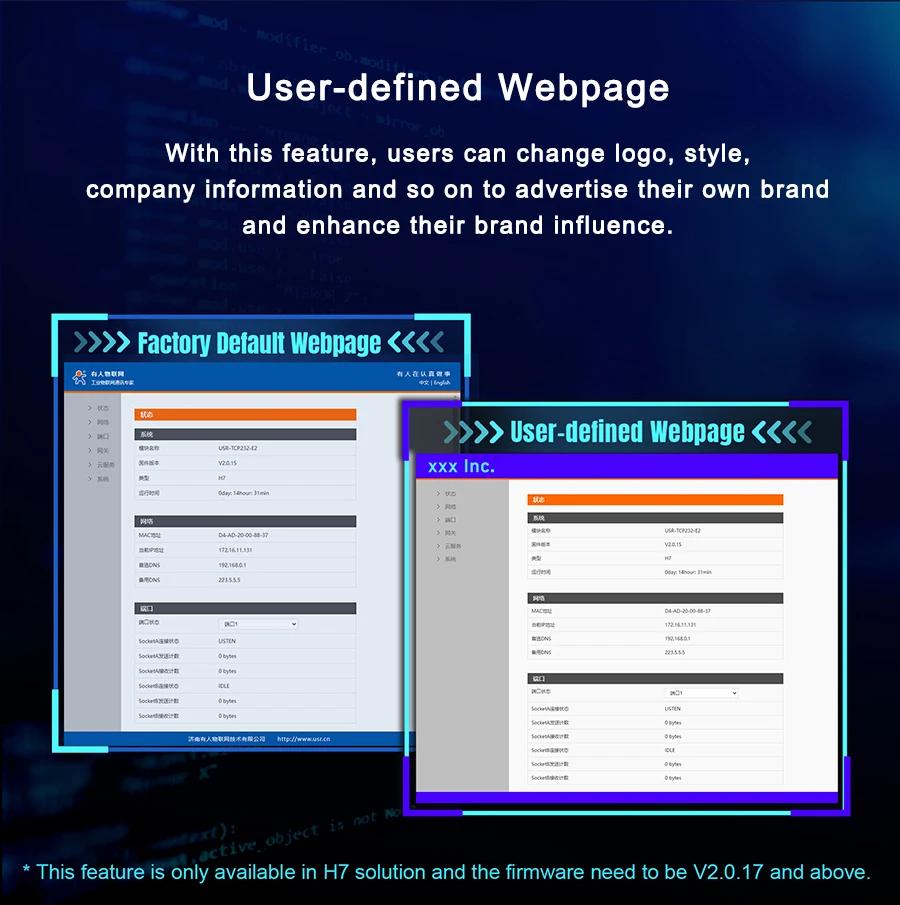

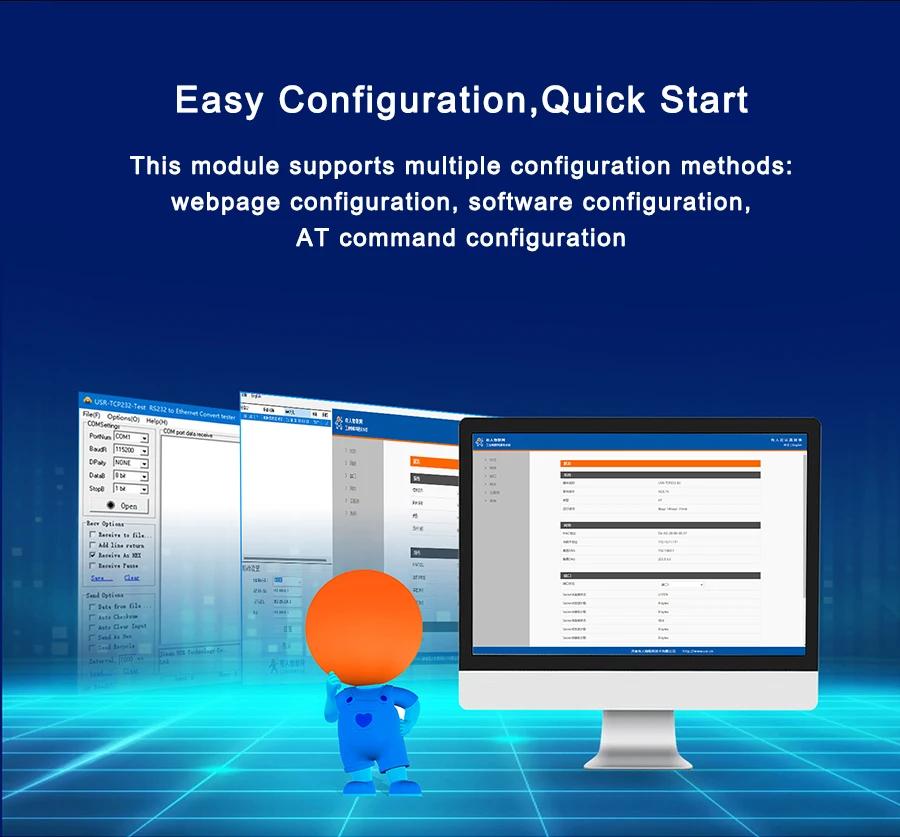

- Support three configuration method: serial AT command, PC software and web page.
- Support local firmware upgrade by PC software.
- Support “Keep-Alive” to guarantee TCP connection.
- Support user password authorization for security.
- Industrial temperature range (-40℃ ~ +85℃).
Package Included:
- 1 x Ethernet Converter Module
