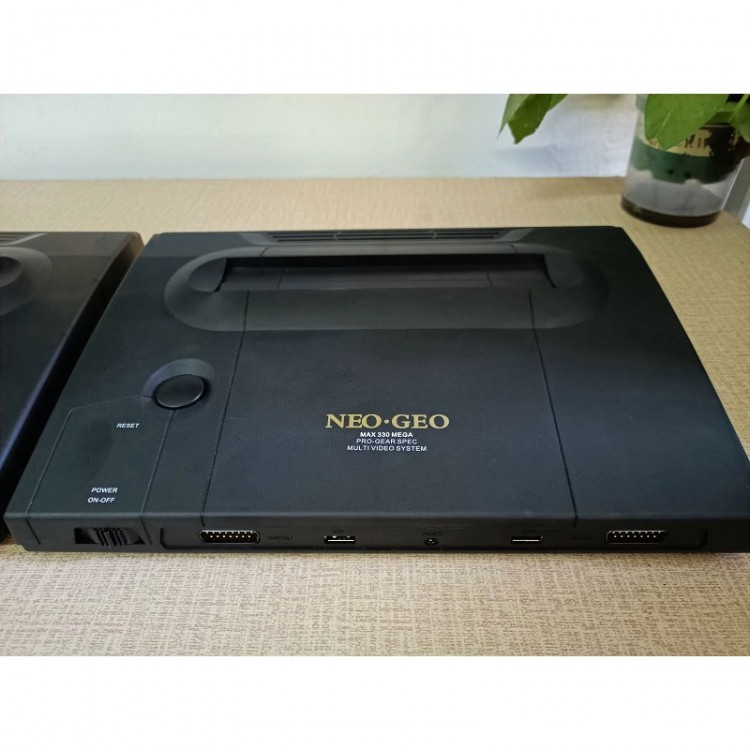

New Version for SNK NEOGEO MVS Game Console High Performance without Adjustment of Screen Position (Transparent Black)

New Version for SNK NEOGEO MVS Game Console High Performance without Adjustment of Screen Position (Transparent Black)

Features:
- MVS changed the stereo output
- Using BIOS version4.0, you can set arcade or AES mode, cheat function, etc. When starting the BIOS screen (to insert the card), press the handle ABC to enter the BIOS setting. Press BCD to enter the tuning mode to set the difficulty, etc. It is not complicated to explore by yourself. In the game, you can also press the start button + coin button to call out the menu to select the cheat function and reset and other functions.
- A variety of original video interface outputs are designed with full configuration: a micro video/S terminal/color difference component YCBCR/RGBS/SCART all original signals are original without any delay and other problems, and can be connected to TV/color monitor and other displays.
- USB interface, you can use for PS3/for PS4/for XBOX360/for XBOX360/for XBOX ONE handle or joystick. There are many handles and joysticks on the market that cannot be tested one by one. Generally, the ones that support for PS3/4 are selected.
- The DB15 interface supports NEOGEO handles and joysticks, and you can also make your own joysticks.
- The arcade board can be connected to the board through a 28-pin JAMMA extension cable. The mode switch on the back of the host can be played in JAMMA mode. It supports general 28-pin arcade board decks such as cps1/2/3, igs decks, atomiswve , 1945, etc.

Function of jamma board:
- Key setting: press the SET button to start, press the display light on the jamma board to set, the setting sequence is 123456, up and down, left and right, when the display is on, press the button you want to set, if the setting stops for 5 seconds, the setting is automatically saved .
- Burst setting: Press the handle or joystick start button + down + the button to be set, for example, to set the 4th button burst, press and hold the handle start button and the direction down and then press the 4 button, if you need to close the operation again That's it.
- Combination key setting: Press and hold the start key and then press left or right, there will be corresponding LED display on the jamma board.
- The jamma board can increase the cost of adjusting the screen position function plus 100 yuan, and can adjust the screen position up, down, left, and right, and correct some substrate synchronization problems such as screen distortion, unstable and black screen, etc.

Package Included:
- 1 x MVS host
- 1 x JAMMA Board (without adjust function of screen position)
- 1 x Prolonged Line
- 1 x 12V Power
- 1 x AV Cable
- 1 x S Terminal Cable
- 1 x Color Difference Component Line
