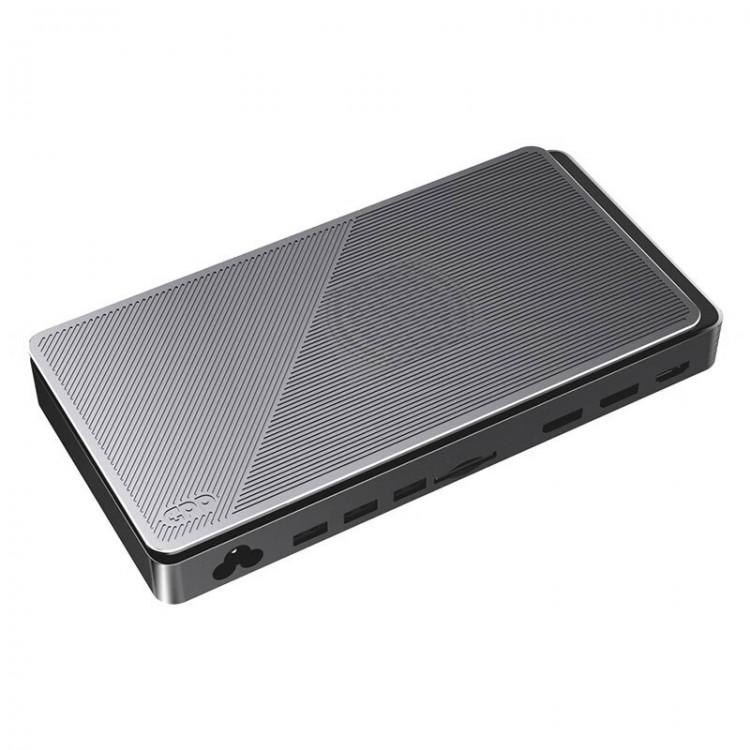

New Version GPD G1 Mobile Mini Graphic Card Dock for Thunderbolt4 GPU Expansion Dock USB4 40Gbps with Oculink Cable

New Version GPD G1 Mobile Mini Graphic Card Dock for Thunderbolt4 GPU Expansion Dock USB4 40Gbps with Oculink Cable

Graphics Chip Specification:
- Graphics processing unit: for AMD Radeon RX 7600M XT
- Architecture: RDNA 3.0
- Process size: 6nm
- Base clock: 1500MHz
- Game clock: 2300MHz
- Boost clock: 2615MHz
- Transistor count: 13.3B
- Stream processors: 4096
- Ray accelerators: 32
- TMUs: 128
- ROPs: 64
- FP16 (half): 42.84 TFLOPS
- FP32 (float): 21.42 TFLOPS
- FP64 (double): 669.4 GFLOPS
- Texture rate: 334.7GTexel/s
- Pixel rate: 167.4GPixel/s

Memory Specification:
- Memory type: GDDR6
- Memory clock: 2250MHz
- Memory bandwidth: 288.0GB/s (18Gbps)
- Memory size: 8GB

Graphics Port:
- Bus bandwidth: 63Gbps (PCIe 4 x 4 or PCIe 3.0 x 4)
- Bus port:
  Oculink (SFF-8612) female port x 1
  USB 4 x 1, supports providing 65W power to the main device, fast charging with PD protocol.

Video Port:
- HDMI-compatible: HDMI-compatible 2.1 x 1
- Display Port: DP 1.4a x 2

Data Port:
- USB Type-A: USB 3.2 x 3, only valid when connected to USB4 host device
- SD port: SD 4.0 x 1, only valid when connected to USB4 host device

Others:
- Power port: 1
- TGP toggle key: supports switching between quiet mode (60W) and normal mode (100W), allowing for seamless transitions during system operation or gaming.
- Cooling method: active cooling, air cooling
- TGP: 60 - 100W
- Size: 225 x 111 x 29.8mm
- Power supply wattage: built-in 240W GaN power supply
- Multi-screen design: supports up to three external screens
- Shell material: 6061 aluminum-magnesium alloy
- Weight: 0.92kg

Package Included:
- 1 x GPU Expansion Dock
- 1 x USB4 Cable
- 1 x Power Line
- 1 x User Manual
- 1 x Oculink Cable
