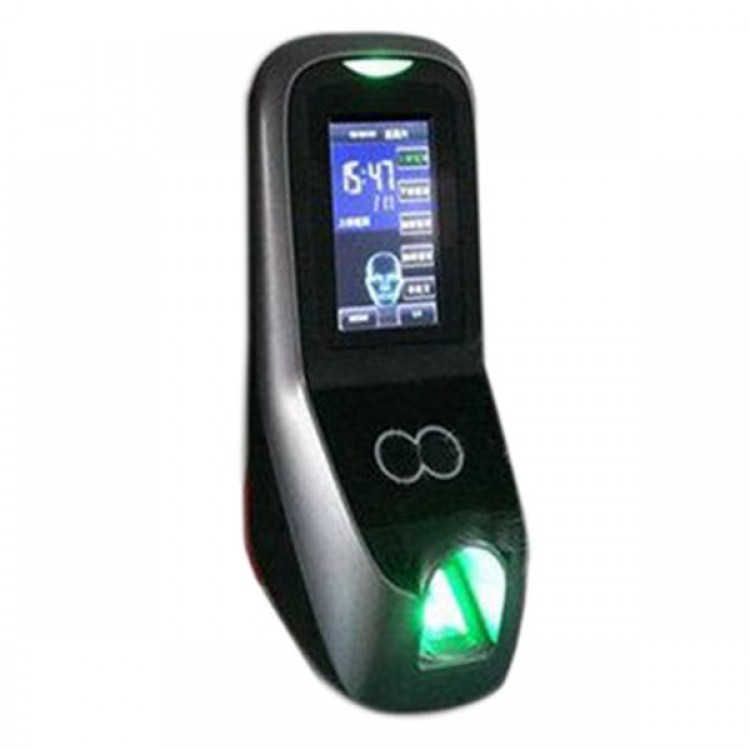

Newest ZKsoftware 3" Touch Screen Face Fingprint Time Attendace Multibio700

Newest ZKsoftware 3" Touch Screen Face Fingprint Time Attendace Multibio700

Features:
．Elegant ergonomic design
．Default verification mode is Fingerprint&Face, available to choose other 19 modes, such as RFID&Face, Face&PIN, Fingerprint only, RFID only.
．TCP/IP, RS232/485 communication and USB Host.
．3.0 inch TFT touch screen, T9 Input, 9 Digit User ID.
．2 user-defined function keys, the left one is for door belling, the right one is for shift of identification mode.
．Infra-red optical system enables user-identification in poorly lit environments.
．Wiegand input for working with wiegand reader, wiegand output for connecting to access control panel.
．Optional with ID card module or Mifare card module (available when using ZKFinger9.0 algorithm).
．Professional access control compatible with the 3rd party door sensor, alarm, exit button, wired bell and electric lock.
．50 time zones, 99 groups and 10 unlock combinations, anti-pass back and dismantle function.
① Date: The current date is displayed.
②Screen Shortcut Keys: Press these shortcut keys to display the attendance status. Users can customize the function of each shortcut key.
③Time: The current time is displayed. Both 12-hour and 24-hour time systems are supported.
④ Attendance Status: The current attendance status is displayed.
⑤ 1:1Switch Key: By pressing this key, you can switch to the 1:1verification modes, and enter the digital input interface

Function instruction:
The main menu includes nine sub menus:
Add User: Through this submenu, you can add a new user and input the information on the device,
including the user ID, name, fingerprint, face, card, password, rights, group No. and user access.
User Mgt.: Through this submenu, you can browse the user information stored on the device,
including the user ID, name, fingerprint, face, cardpassword, rights, group No. and user access.
Here you can also add, modify or delete a user’s information.
Comm.: Through this submenu, you can set related parameters for communication between the device and PC,
including the IP address, gateway, subnet mask, baud rate, device No. and communication password.
System: Through this submenu, you can set system-related parameters,
including the basic parameters, interface parameters, fingerprint, face and
attendance parameters, Keyboard definitions, Access settings, firmware update etc. to enable the device to
meet the user’s requirements to the greatest extent in terms of functionality and display.
Data Mgt.: Through this submenu, you can perform management of data stored on the device,
for example, deleting the attendance records, all data, clear administrator, restore to factory settings and query records.
Date/Time: Through this submenu, you can set the alarm time and duration, or set the Bell.
Auto Test: This submenu enables the system to automatically test whether functions of various modules are normal,
including the screen, sensor, voice, face, keyboard, clock tests and screen calibration.
Dn/Upload: Through this submenu, you can download user information and
attendance data stored in the device through a USB disk to related software or other fingerprint recognition equipment
Sys Info.: Through this submenu, you can browse the records and device information

Specifications:
