Nextion 4.3" Capacitive Touch Screen HMI Display Panel NX4827P043-011C Human Machine Interface
Description:

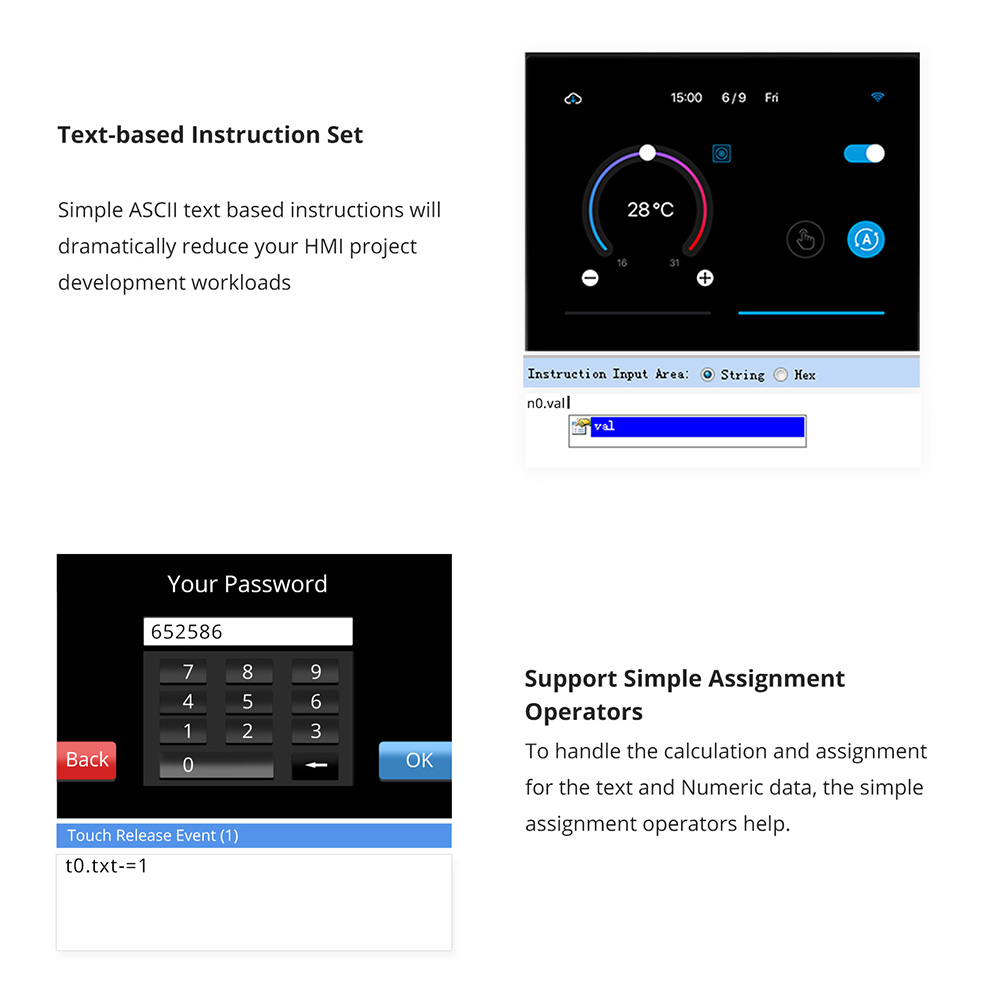

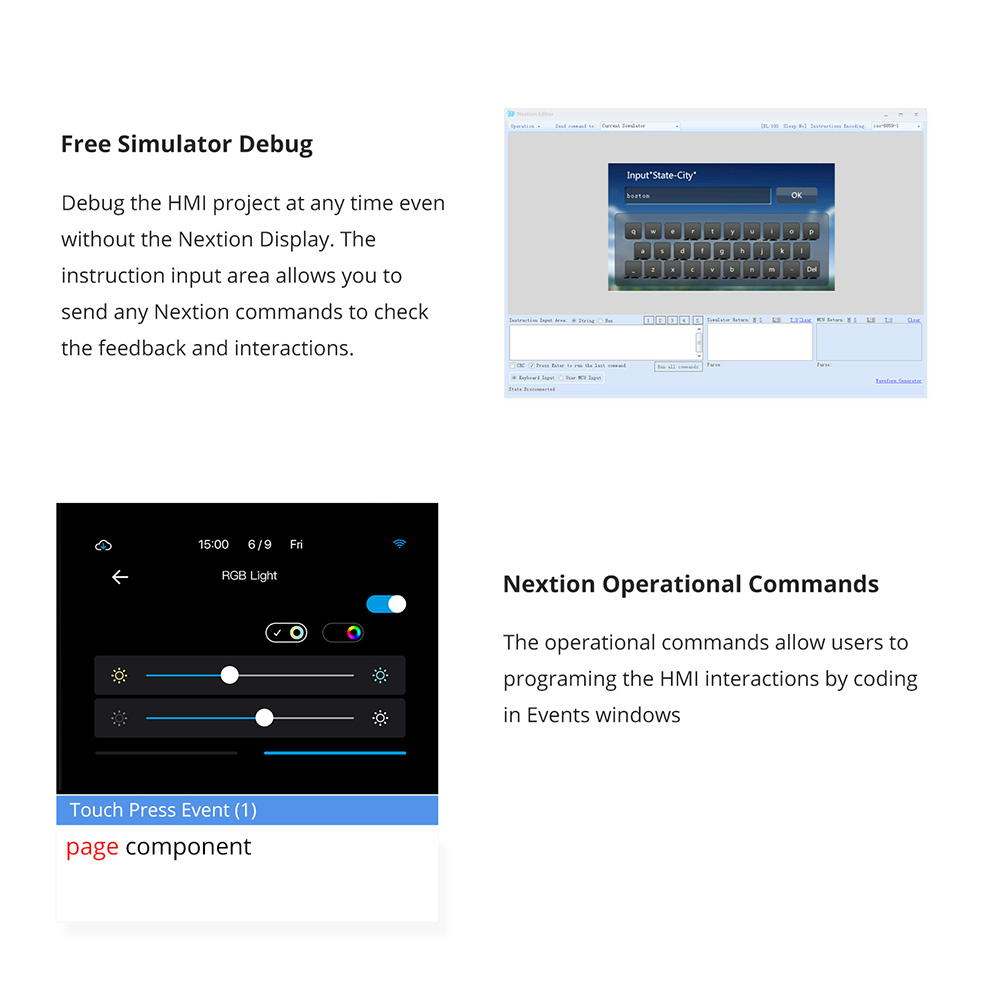

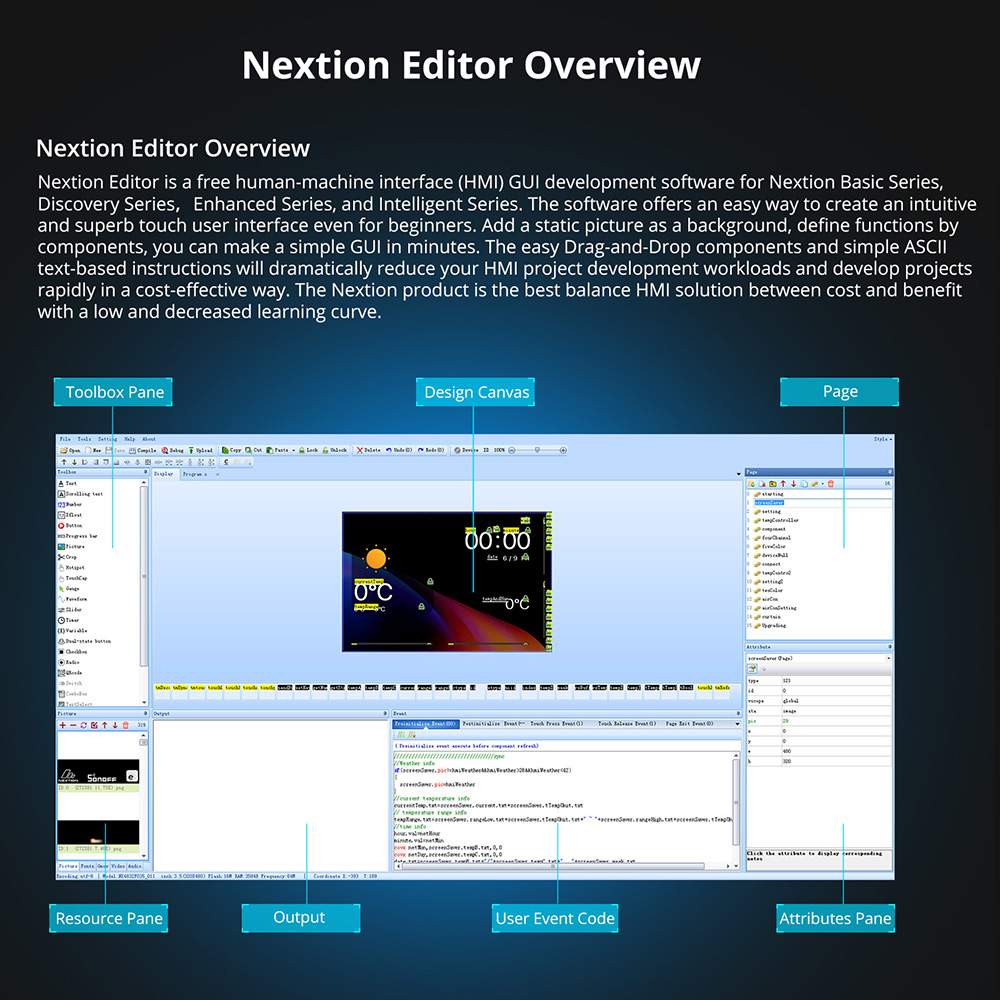

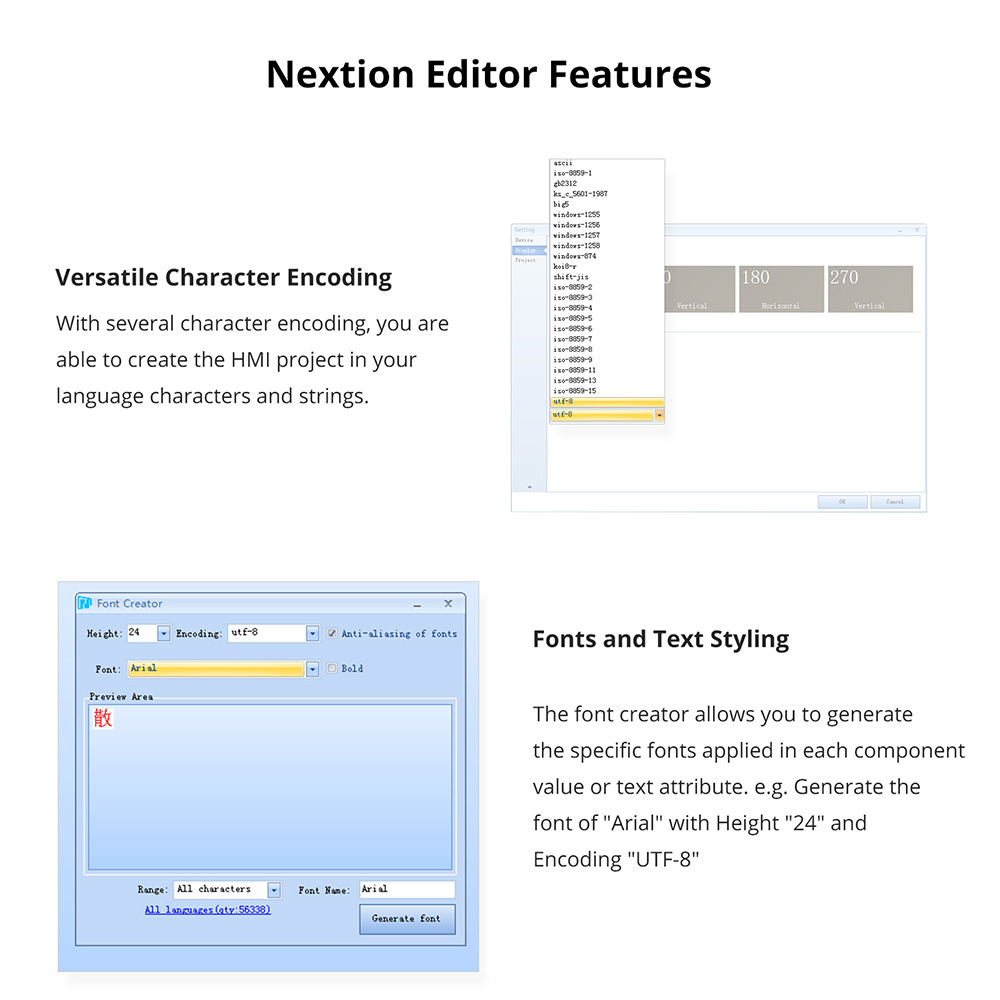

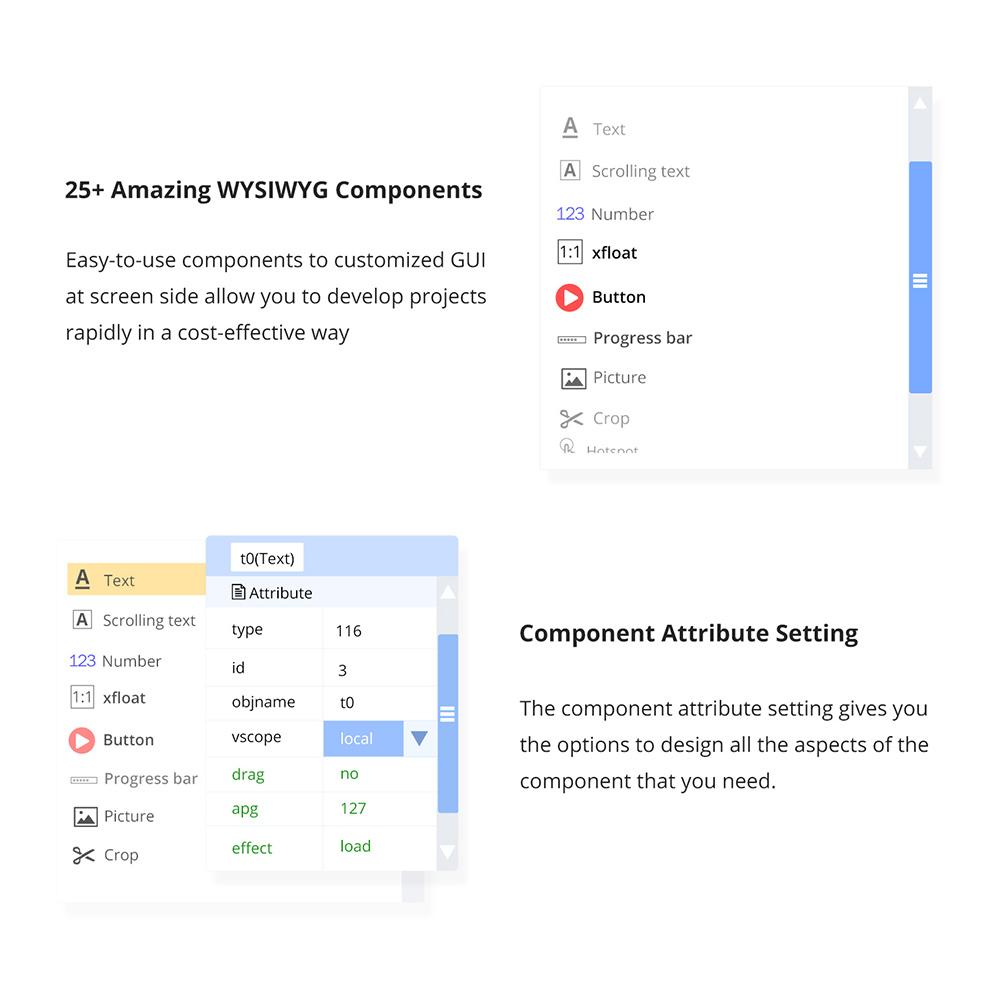

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

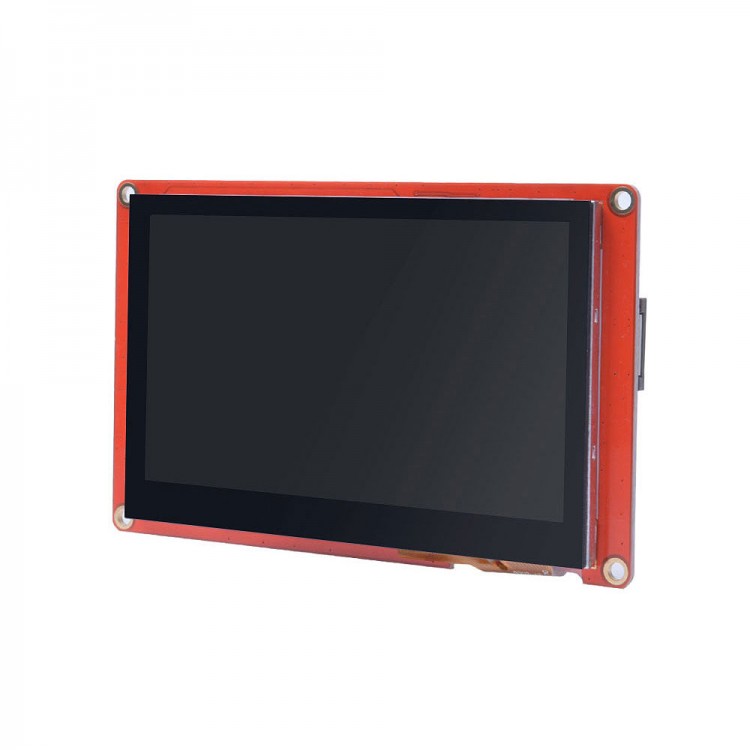

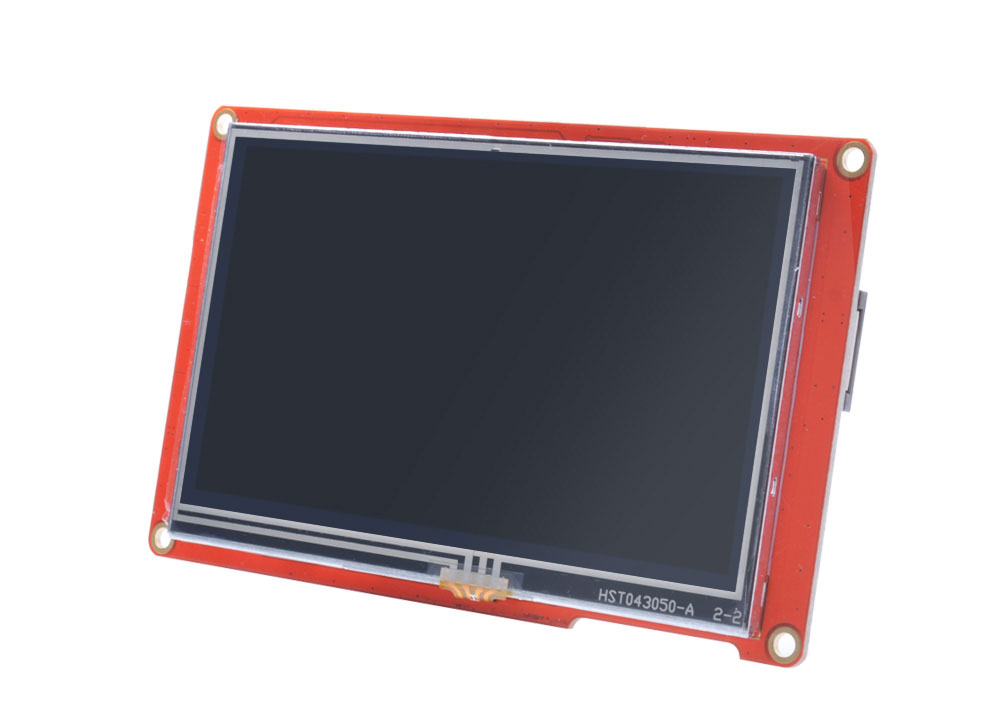

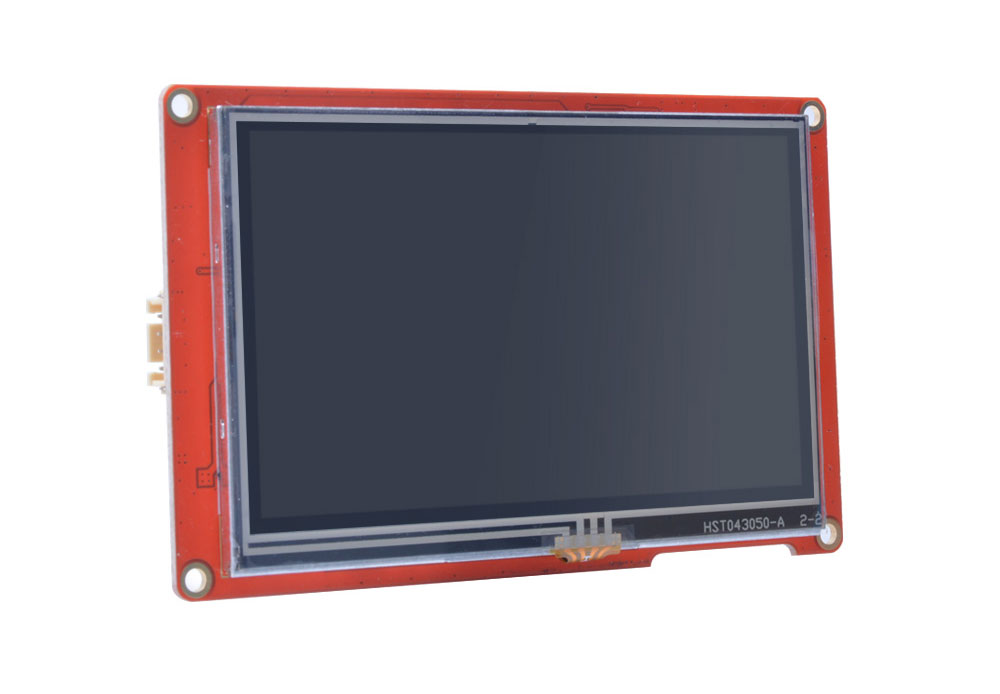

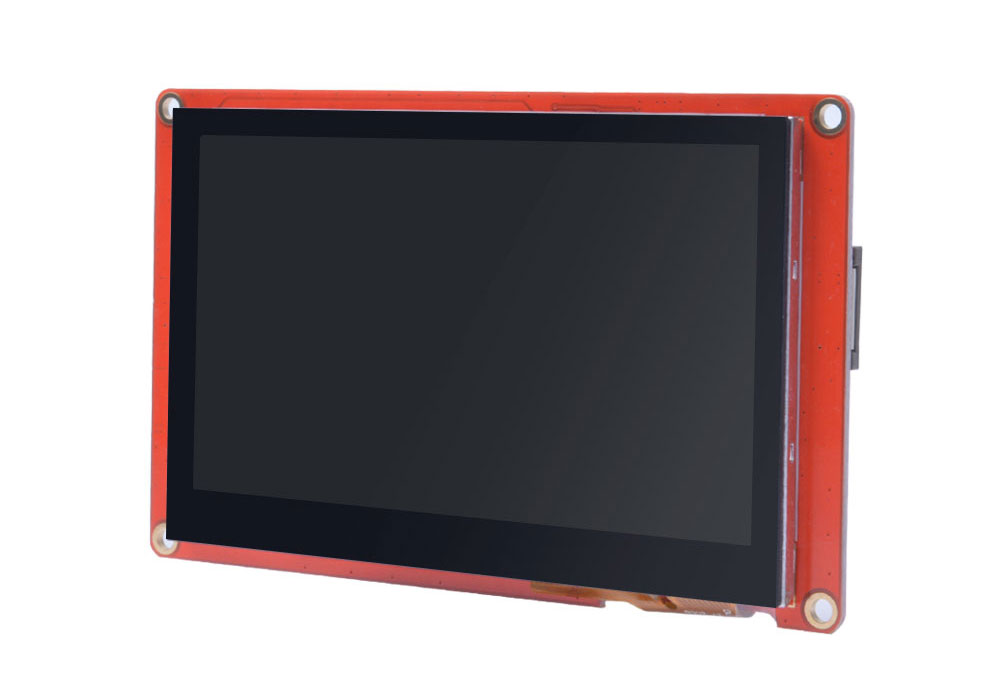

NX4827P043-011C is a Nextion Intelligent series 4.3'' capacitive HMI touchscreen without enclosure.

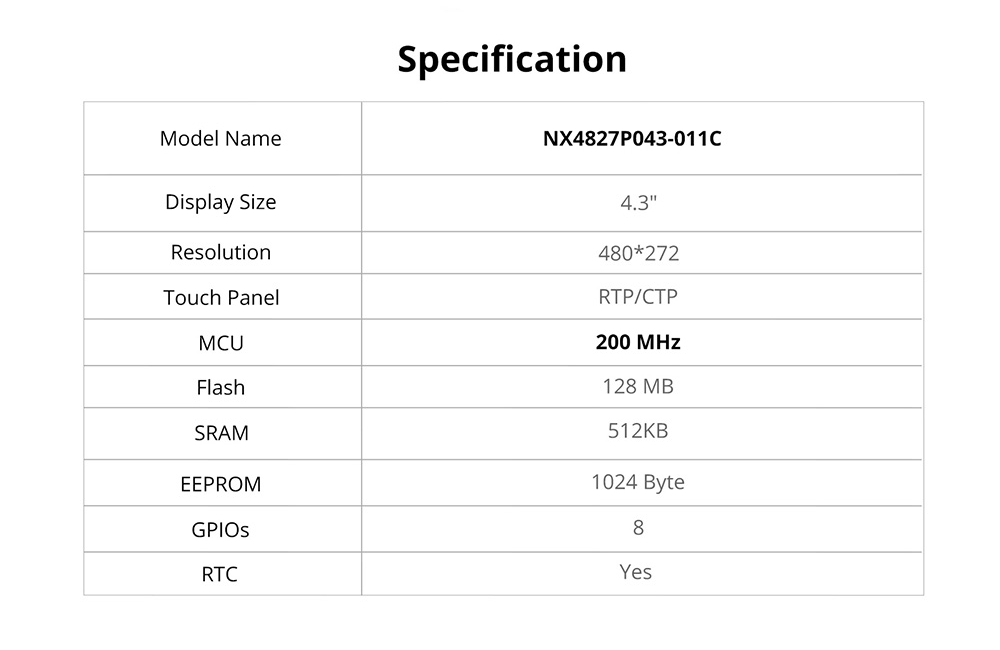

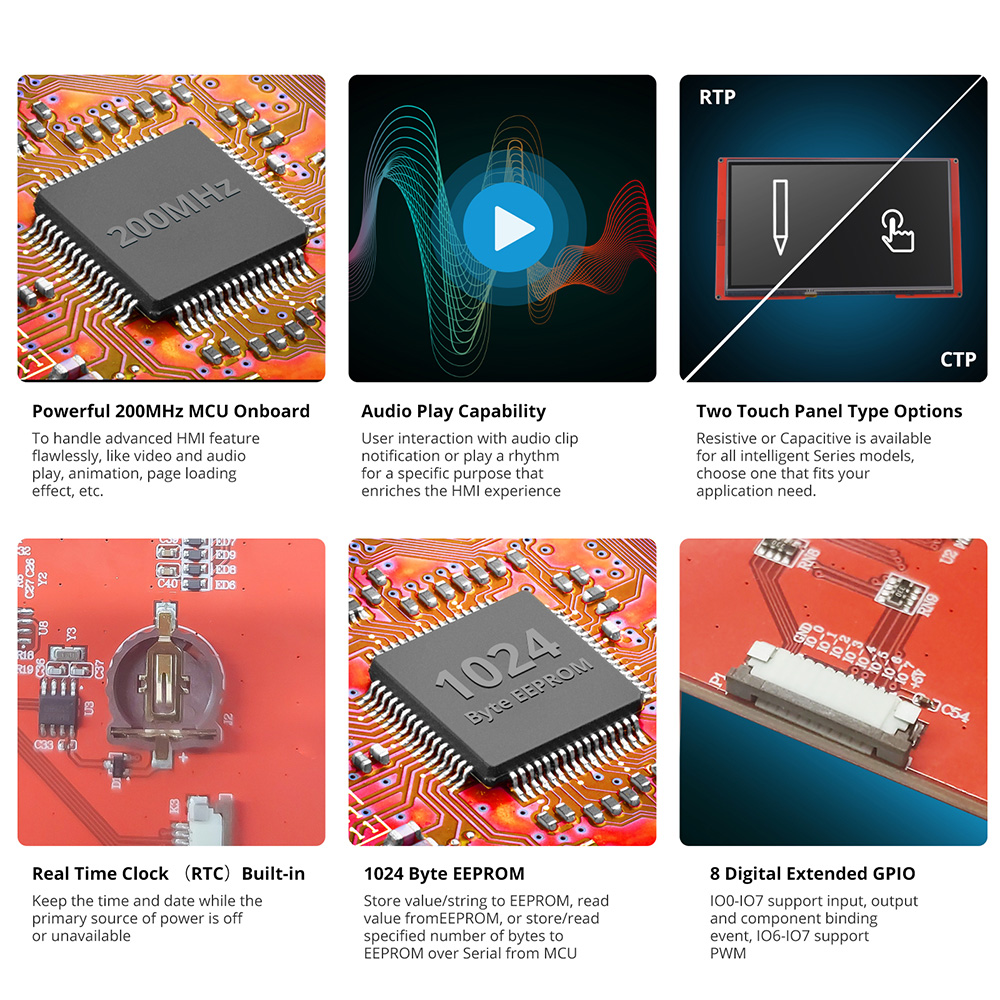

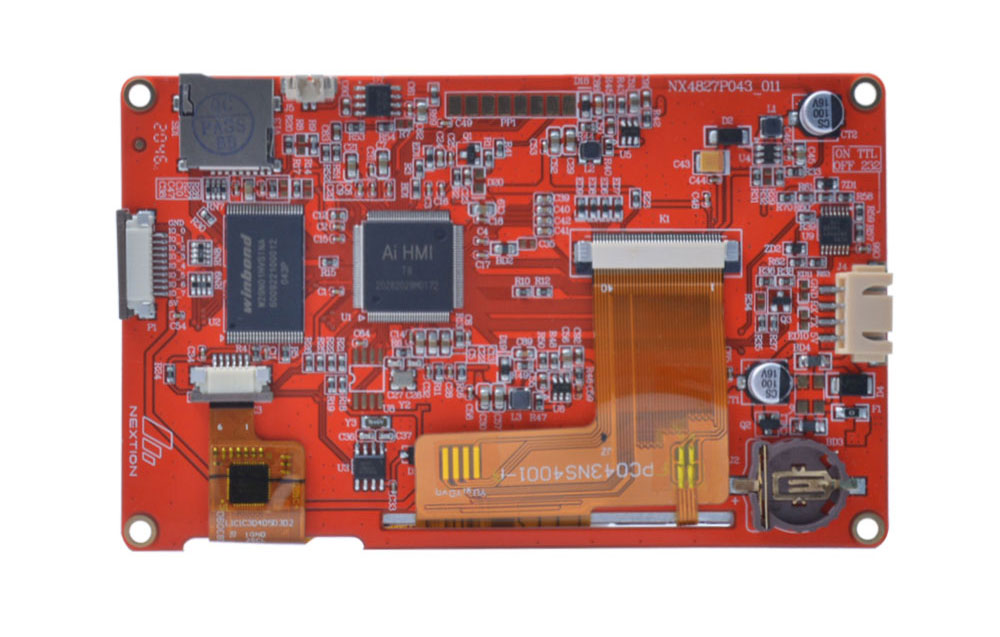

Hardware Features:
- 4.3" LCD-TFT HMI display module
- 480 x 272 screen resolution
- RGB 65K true-to-life colours
- Capacitive touch panel
- 300 nit Brightness
- Onboard 200MHz MCU
- 512 KB of SRAM
- 128 MB of Flash memory
- 1024 Byte EEPROM
- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
- 1.25T-2-2A Audio port for external speaker connection
- 8 Digital extended GPIO (IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
- Built-in RTC support
Package Included:
- 1 x Power Supply Test Board
- 1 x Nextion HMI Display
- 1 x XH2.54 4P Wire
