Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $29.92 | $29.31 | $28.39 | $27.17 | Contact US |

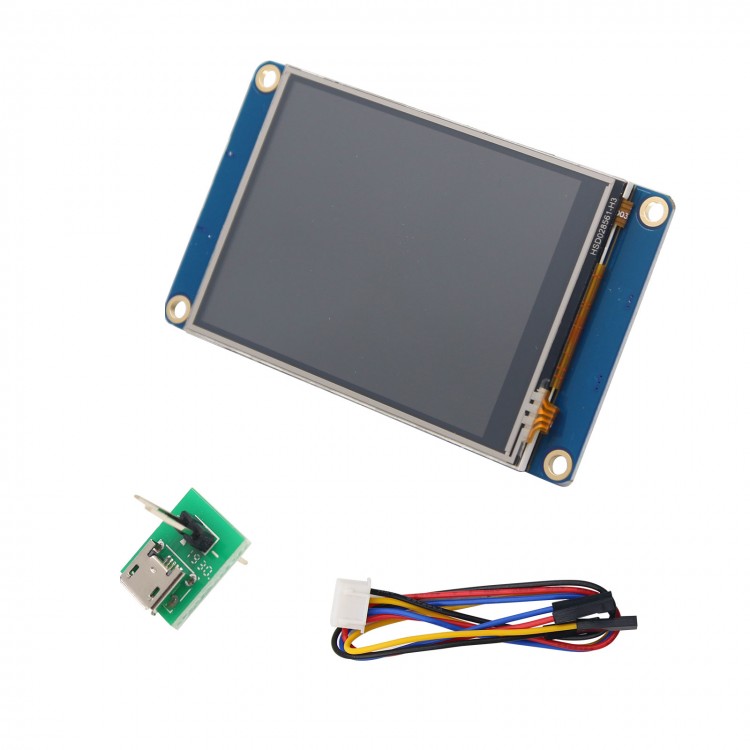

Nextion NX3224T028 2.8'' HMI TFT Touch Display LCD Module 4MB Flash for Arduino Raspberry Pi
Specifications:
Model Name: NX3224T028
Size: 2.8 inch
Resolution: 320*240
RAM: 3584 byte
CPU: ARM 7 48MHz
Flash: 4MB
Features:
-2.8 inch TFT screen with integrated 4-wire resistive touch panel.
-320 x 240 resolution.
-RGB 65K true to life colors.
-Easy 4 pins (+5V, TX, RX, GND) interface to any TTL serial host.
-Compatible with Arduino, Raspberry Pi A+, B+ and Raspberry Pi 2.
-4M Flash memory for user application code and data.
-Onboard micro-SD card for firmware upgrade.
-5V 90mA power consumption.
-CE and RoHS compliant.
Package List:
-1 Set of NX4024T028 2.8” Touch Display
