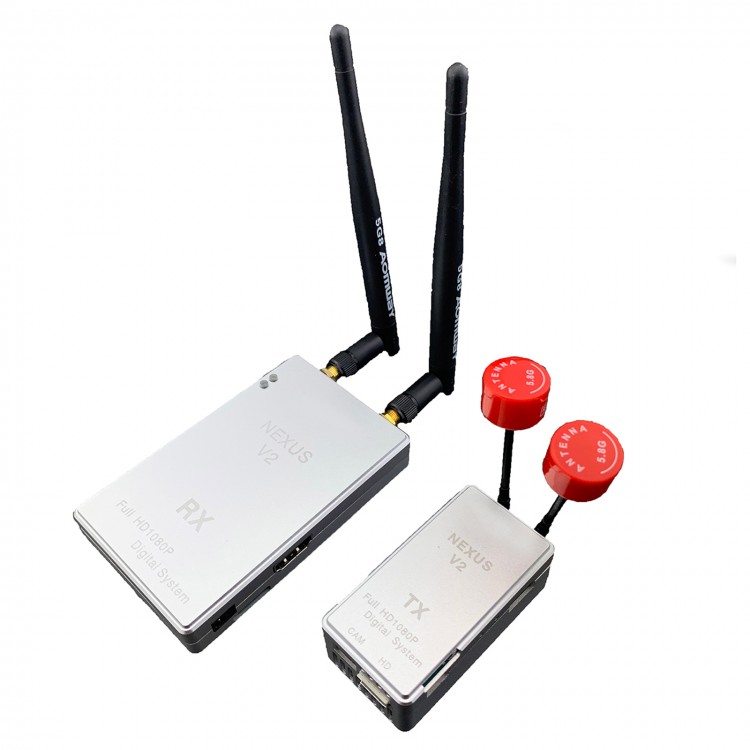

Nexus V2 RX TX Transmitter Receiver Audio Video Link HDMI 1080P 60FPS Delay 30ms For FPV RC Drone
Description:
Nexus V2 uses an ultra-low latency codec chip and a unique conversion algorithm. The laboratory has measured end-to-end: 1080p@60fps 20M bandwidth, minimum 30ms delay, and up to 7km in an ideal environment. Support multiple signal source input, HDMI input device (up to 1080P 60fps backward compatible), camera signals include AHD signal and TVI signal. It supports all flight control devices with protocol for MAVLink on the market, and the HDMI output image on the ground automatically superimposes the data. At the same time, both the sky end and the ground end have high-definition video recording functions. Reserve multiple high-speed two-way communication links, can simultaneously transmit control signals, telemetry signals, etc.
Main Parameters:
- Picture quality: HDMI interface input 1080p 60fps (downward compatibility); Camera input 1080 25fps (downward compatibility)
- Automatic search for FM and manual FM at boot
- Low latency video transmission, the minimum delay of the video transmission system is 30ms
- HD camera and HDMI_C input. HDMI_A output interface
- The antenna connector at the sky end is MMCX connector, and the ground end is SMA-jack
- Support all flight control for MavLink protocol, real-time flight control data overlay screen display
- Simultaneous high-definition video on the sky and ground (MP4 format, one file per 3 minutes)
- Encoding and decoding mode H264, maximum 20Mbps bit stream, automatic adjustment
- High frequency 5.8Ghz frequency band
- Picture superimposed flight control parameters/frequency points/streams/video transmission RSSI/recording instructions, etc.
- TF card can upgrade the system (we provide upgrade files)
- Transmitting output power: 0 to 700mW, controlled on the ground
- Weight: TX 60g, RX 108g (without the weights of antennas)
- Working environment 0°C to 50°C
- Power supply: DC7-26V (2S-6S)
Package Included:
- 1 x Set of RX TX

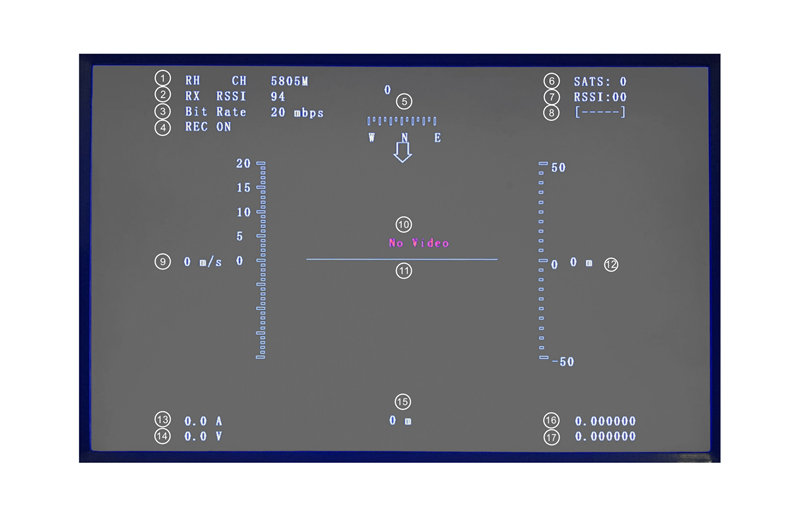

OSD Data Overlay at the Receiving End:
