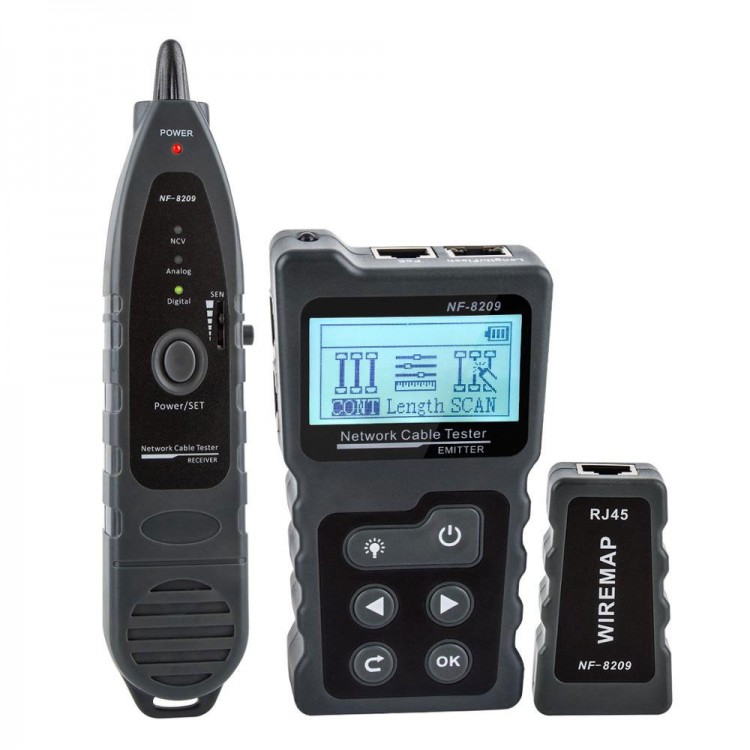

NF-8209 Cable Tracker Tester Network Cable Tester Tool Set For Testing CAT5 CAT6 Ethernet Cables

NF-8209 Cable Tracker Tester Network Cable Tester Tool Set For Testing CAT5 CAT6 Ethernet Cables

Features:
- Three switchable tracking modes are suitable for different scenarios. Anti-interference tracking, POE and normal tracking modes
- Switch tracking mode. Can be applied to POE in computer room/common switches
- Shield digital signal interference and bid farewell to noise
- The tracking mode of the receiver must be the same as the tracking mode of the transmitter. If they are different, no sound will be emitted even if the receiver is close to a signal cable
- POE test: Automatically identify at/af, can test 5-60V non-standard/standard POE, and can also measure the number of power supply cores and voltage
- Accurate length test: It can measure CAT5 and CAT6 cables in the length of 2.5m-200m/8.2-656.2ft (if your cable's length is not within this range, the length of twisted pair will be displayed as 0)
- Withstand voltage design: can withstand DC voltage 60V, no longer afraid of burning the machine
- Port flashing function: 10M/100M/1000M switch automatically adapts, the port flashes once per second
- One-to-one pairing mode: can test shielded wires, test the short-circuit, open-circuit, and cross condition of network cable
- NCV induction pen: accurate electricity measurement, safer to use
- Illumination function: both the transmitter and the receiver have lights to enable operations in dark area
- Humanized design: support Chinese and English switching, setting backlight/off time. Set backlight time: 15-second/30-second/60-second/always on. Set automatic shutdown time: 15-minute/30-minute/1-hour

More Details:
- High-standard interface: high-standard RJ45 interface to ensure that the crystal head is tightly clamped during testing
- Test probe: accurate detection, sensitive response, safer to use
- Headphone function: convenient to use in noisy environments or when long-distance tracking is weak

Transmitter Test Functions:
Wire-to-wire Test
- Applicable network cable: CAT5, CAT6
- Cable sequence and fault test: Support
- Network cable shielded/unshielded: testable and distinguishable (1 to 1 pairing)
- Short-circuit prompt: Yes
- 1 to 1 pairing: RJ45 main interface + remote RJ45 interface 1 to 1 pairing
- Switch to the line: RJ45 main interface + directly connected to the switch
- Line length: 600m/1968.5ft

Length Test
- Test line: CAT5, CAT6
- The minimum length of open route measurement: 2.5 meters
- The maximum length of open route measurement: 200 meters
- General line length measurement accuracy: ±1.6m
- Minimum analytical unit of line length measurement: 0.1m/inch/yard
- Short-circuit point distance reminder: detect cable short-circuit fault distance

Tracking Test
- Applicable network cable: CAT5, CAT6
- Output signal voltage: 9±1.0Vp-p (audio file)
- Probe distance 0cm volume: >105db
- Probe distance 30cm volume: greater than 80db
- Audio transmission frequency: 130KHZ
- Tone: 1 tone
- Ordinary hunting: Yes
- Anti-interference hunting: Yes
- POE hunting line: Yes
- Maximum audio transmission distance: RJ45 600m

POE Test
- Test range: DC5~60V non-standard/standard POE switch
- Power supply line sequence reminder: Yes
- Standard distinction: non-standard, IEEE 802.3af/at

- Port flashing function: Yes
- Lighting function: Yes

Package Included:
- 1 x Set of Cable Tester Meter

Note:
- Batteries are not included. One 9V 6F22 battery and 3pcs AAA batteries are recommended.
