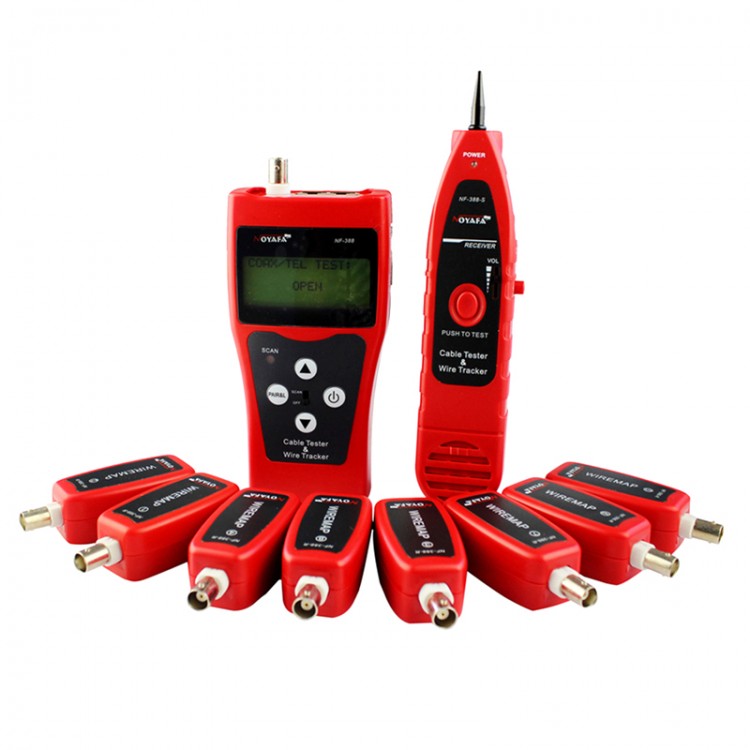

NF388 Network LAN Phone Cable Tester Tracker Tracer Ethernet Wire Test with 8 Far End Test Jacks

NF388 Network LAN Phone Cable Tester Tracker Tracer Ethernet Wire Test with 8 Far End Test Jacks

Description:
This multipurpose network cable test & inspection instrument is the latest cable test & inspection instrument with lots of new functions researched and developed by our company. The equipment is composed of tester, receiver and remote identifier.  The new instrument is provided with fluent appearance, excellent hand feel and considerate human-centered design. It owns three great functions of hunting, wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as, communication line, comprehensive wiring circuit, etc.

It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.

Features:
- One person enough to complete cable continuity check
- With 8 Remote identifier
- Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables
- Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
- Locate the wiring or connection error
- Measure cable length and determine the distance of open circuit and short circuit
- Dynamically calibrate cable length and make length measurement as accurate as 97%
- Simple and easy use. Big screen to display test result clear
- Portable unit with long battery life (wait-case 50 hours)
- Automatically time-delay shut off and backlight display function
- Measure length and pair with or without far-end recognizer
- Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8)
- Far-end recognizer with prompting voice
- Self-checking function and automatically compensate any change in battery capacity or ambient temperature
- Single board computer software watchdog design and reliable operation

Specifications:
- Display : 4 x 16 character big screen LCD
- Type of cable tested:
   STP/UTP twin twisted cable
   Coaxial cable
   Telephone line
- Type of cable detected:  5E,  6E,  telephone wire,  coaxial cable
- USB cable and other metal wires
- Ambient temperature : -10°C ~ +60°C
- Tester RJ45 mater port (M), tester LOOPBACK RJ45 port (L),hunting RJ45 port (with RJ45)
- The Extra RJ11-to-alligator converter is used to measure and check the continuity of coaxial cable and telephone line.
- Length measurement of Twin Twisted Cable:
  Scope : 1~350M (3~200ft)
  Calibration accuracy : 3% (+/-0.5M or +/-1.5ft)(calibrating cable >5M)
  Shipment accuracy : 5% (+/-0.5M or +/-1.5ft).(AMP, AT&T Class 5 cable)
- Display : M or ft
- Length Calibration : user can set calibration factor by himself with a given length cable. The length of calibrating cable more than 5M
- Wire Sequence and Locating Cable Error:
  Checks errors such as open circuit, short circuit, reverse connection, croos-over or croos-talk interference.
  Locating Cable : 8 remote identifier test jacks (ID1 > ID8) (8 far-end test jacks are included on set)
  Automatic time-delay shut Off time : the tester does not operate for 30 minutes.
- Main tester : 185 x 105 x 50mm
- Receiver : 218 x 46 x 29mm
- Remote identifier : 84 x 34 x 27mm

Package Includes:
- 1 x Main unit tester
- 1 x Receiver
- 8 x Far-end passive test jacks (ID no.ID1-ID8)
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 1 x Alligator converter
- 1 x Earphone
- 1 x Instruction manual
- 1 x Video cable
