NFC ACR122U RFID Contactless Smart Reader & Writer/USB + SDK + Mifare IC Card

NFC ACR122U RFID Contactless Smart Reader & Writer/USB + SDK + Mifare IC Card

Item description:
- The ACR122U NFC reader is the world’s first NFC reader compliant with the CCID specification. The ACR122U and its token version, ACR122T, are designed to support not only Mifare® and ISO 14443 Type A and B cards, but also FeliCa and NFC tags.
- Comprehensive SDK – ACS provides a comprehensive collection of sample codes for device and contactless card programming using the latest versions of powerful object-oriented programming languages namely, Java, Delphi 7, Visual Basic 6, Visual C++ 6, Visual C++ 2005 (x64), Visual C# 2005 and Visual Basic .Net 2005. The extensive set of development tools and reference materials in the SDK allows one to use the ACR122U/ T for RFID-based solutions, such as e-payment, access control, personal identity verification, mass transit and toll road fare collection. With this complete ACR122 NFC Card Reader Software Development Kit, users can optimize the use of ACR122U/T for their contactless and NFC applications.
- Peer-to-Peer Capability – As an additional SDK feature, ACS provides users with the option to experience a simulation of a real-world NFC peer-to-peer application – Smart Poster application. Two ACR122U/T NFC readers are needed for the peer-to-peer demo since one ACR122U/T acts as the smart card poster and the other one as the NFC device. The demo shows the capability of these two devices to exchange data via the peer-to-peer operating mode.

Feature:
1. CCID-compliant
2. PC/SC-compliant
3. Read/write speed up to 424 kbps
4. Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
5. Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
6. Supports new Mifare Ultralight C (via pseudo APDUs) and Mifare Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3
7. Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
8. Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
9. USB PnP
10. User-controllable bi-color LED

Application:
1. Network access control
2. Micro-payment
3. NFC mobile tag
4. Public transportation terminals
5. Automatic fare collection
6. Physical access control
7. Customer loyalty
8. Time and attendance
9. Contactless public phones
10. Vending machines

Technical Specification:

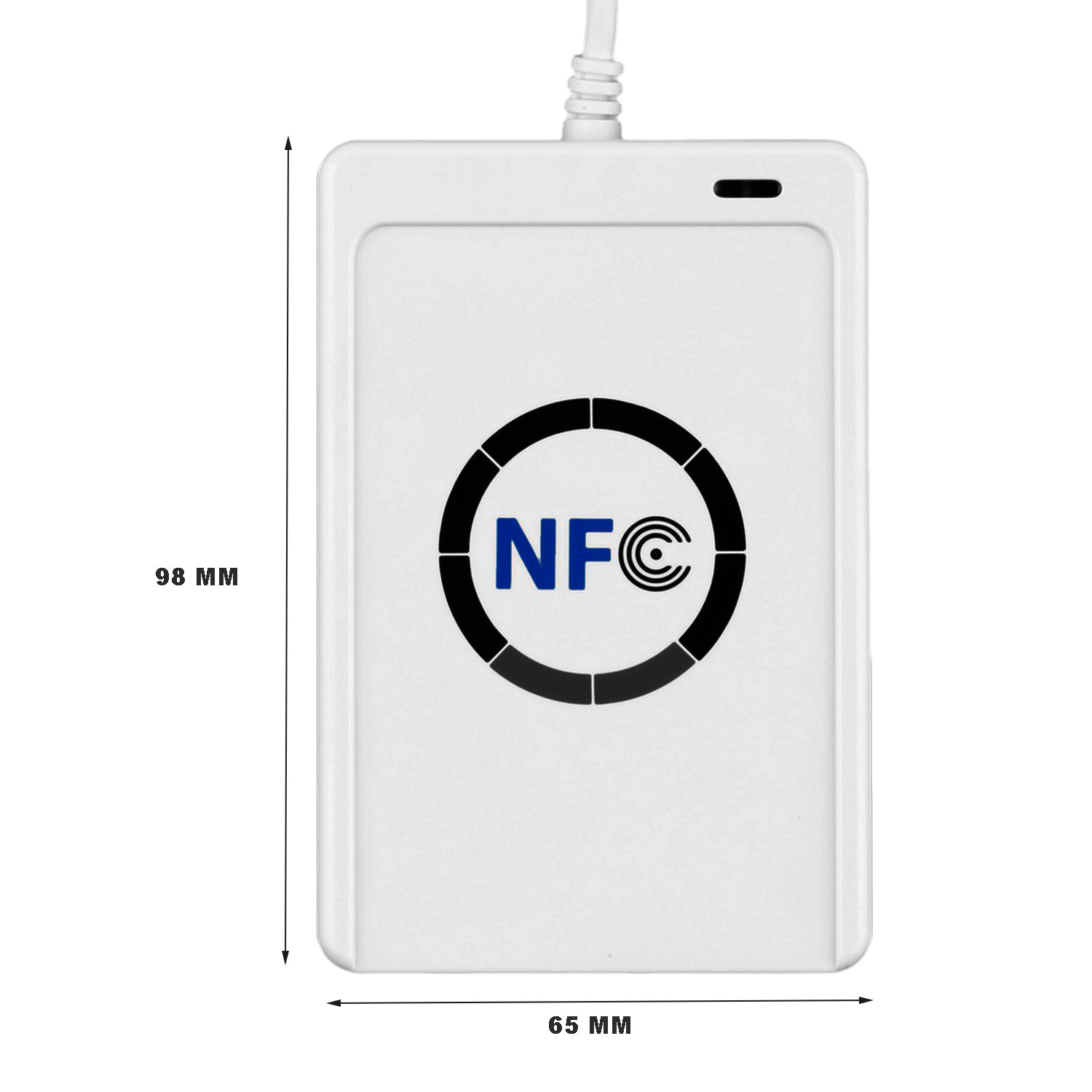

Dimensions                                          98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight                                               70 g
Interface                                           USB Full Speed
Operating Distance                                 <= 50mm (depends on tag type)
Supply Voltage                                     Regulated 5V DC
Supply Current                                     200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature                             0-50°C
Operating Frequency                               13.56 MHz
Smart Card Interface Support                     ISO14443 Type A & B
                                                     Mifare
                                                     FeliCa
                                                     4 types of NFC (ISO/IEC18092) tags
Compliance/Certifications                         PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed
                                                     Microsoft ® WHQL: 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Operating System Support          Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008, Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Windows CE 5.0, Linux, Mac (Please find the proper software to support it)

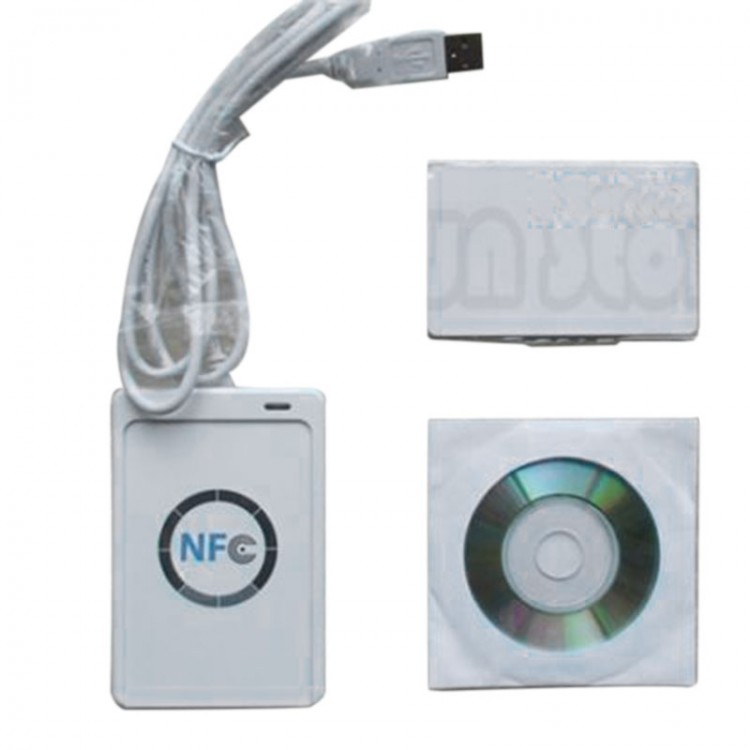

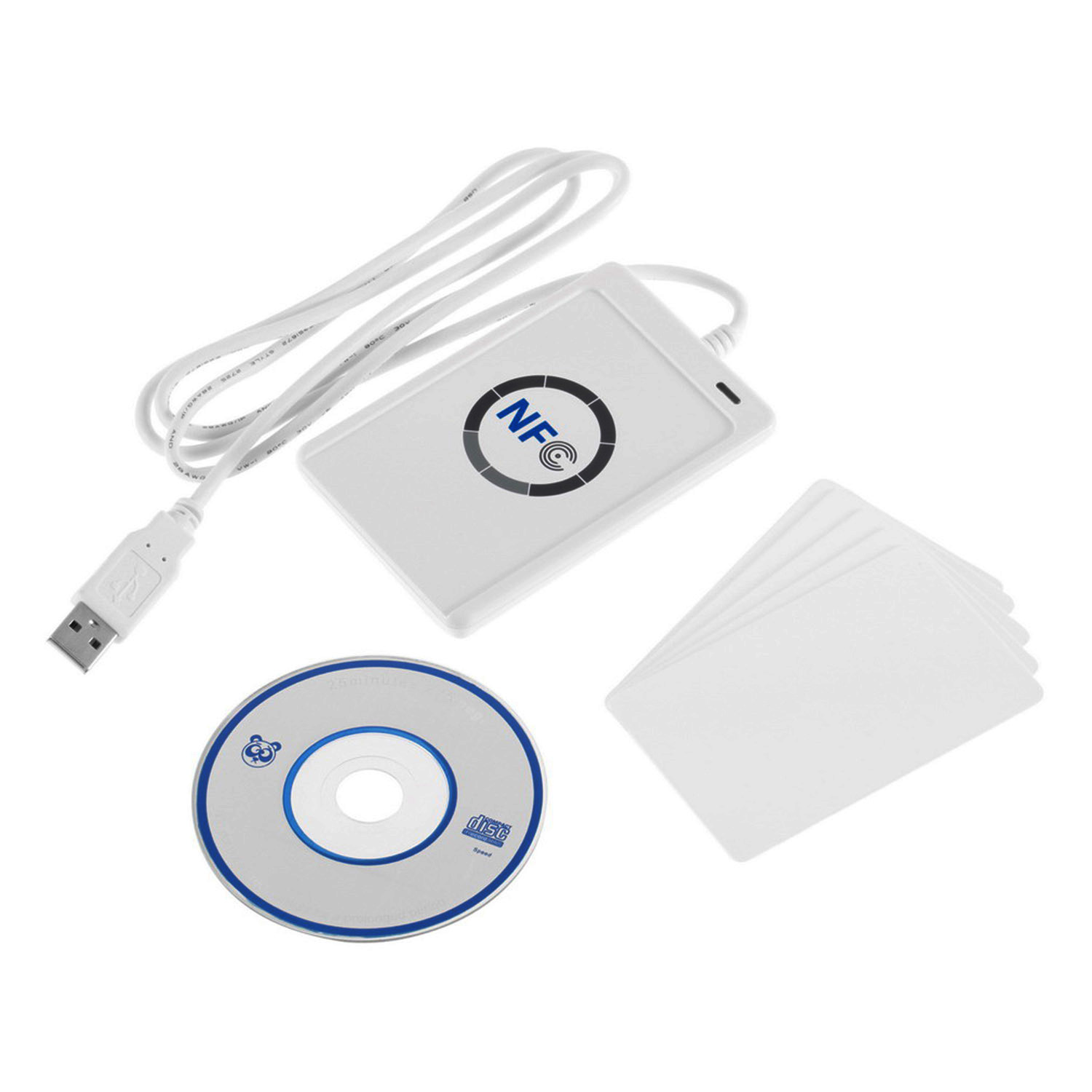

Package includes:
- 1 x NFC Smart Reader & Writer
- 5 x IC Card
- 1 x CD
