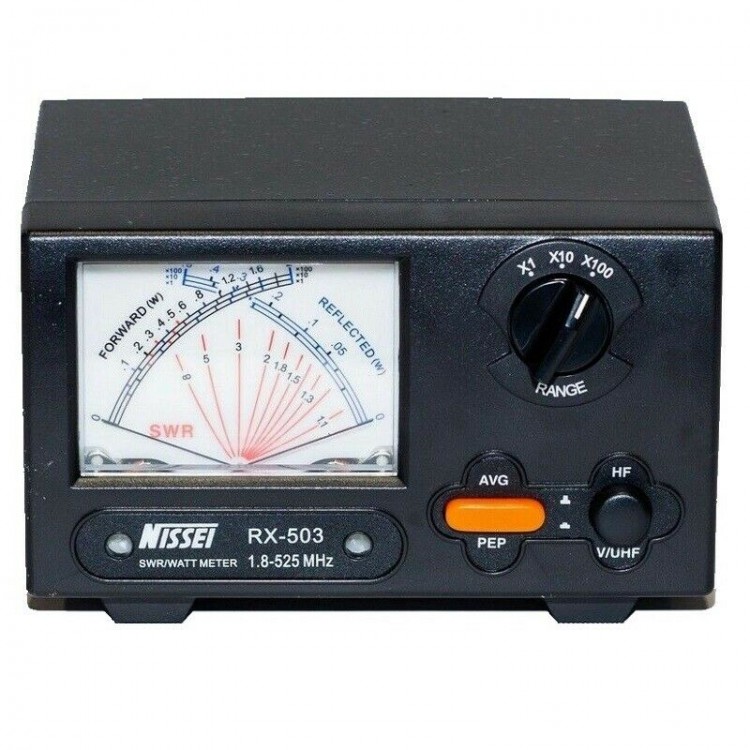

NISSEI RX-503 Power Meter Short Wave UV SWR Watt Meter 1.8-525MHz 0-200W
Specification:
Frequency range: 1.8-525MHz
Power range: 0-200W
Maximum power: 200W
LOW gear error range: (AVG)+/-10%; (REP)+/-15%
HIGH gear error range: (AVG)+/-5%; (REP)+/-10%
Minimum test power: 1W
Input/output connectors: SO-239 M type
Net weight: 950g
Insertion loss: less than 0.1db
Testing function: Fwd/Rev Power, PEP, SWR
Input/output impedance: 50 ohm
Size (W*H*D): 140 x 84 x 122mm
Features:
1. RX-503 VSWR power meter can be read directly without any calibration.
2. The maximum measurable power range of RX-503 is up to 200W.
3. The low insertion loss (0.3 dB or less) structure allows it to be permanently connected.
Package List:
-1 x Power Meter
-1 x Operation Manual
-1 x 13.8 DC Wire
