NK-A20 HDMI Audio Splitter HD 18Gbps Audio Extractor Supports 4K60Hz 4:4:4 Perfect For TV Projector

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.03
  • Price in reward points: 250 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.53 $24.03 $23.28 $22.28 Contact US
Quantity:

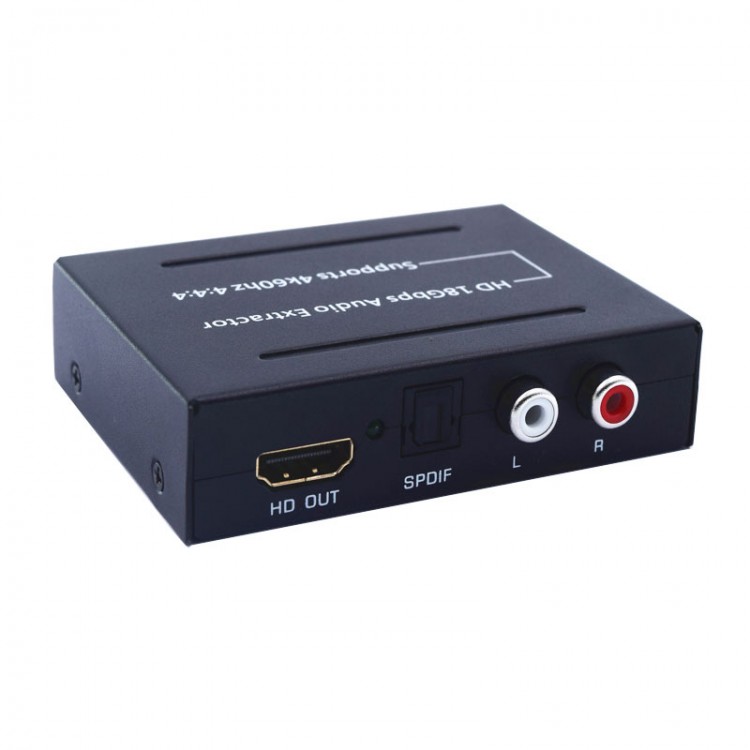

NK-A20 HDMI Audio Splitter HD 18Gbps Audio Extractor Supports 4K60Hz 4:4:4 Perfect For TV Projector

Introduction:

The audio extractor is one device that can support 3D, 4Kx2K, ARC and it allows the one HDMI or one MHL source input and one HDMI output connected to one HD Display (like TV or Projector) and extract the audio to one SPDIF audio out + one LR Stereo audio out. Also the device supports ARC function.

Features:
- One HDMI input converter to one HDMI+ One SPDIF+ One LR Audio Out
- Output audio support: SPDIF+R/L analog Audio Output
- Support Full HD 1080P, Full 3D, 4K60HZ, HDCP2.2 resolution
- Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content
- HDMI working in dual mode, can reduce the number of ports
- HDMI to achieve the synchronization of audio signal separation. There are ADV / 2.0CH / 5.1CH three kinds of audio mode options
- LED indication: when source or sink is working, LED relative to is light
- No loss of quality
- Installs in minutes
- Need DC5V/1A power supply

Specifications:
- HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format: 24bit/deep color 30bit, 36bit
- Audio output: L/R+SPDIF
- Max. bandwidth: 300MHz
- Max. baud rate: 9.0Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- Input cable distance: ≤15m AWG26 HDMI standard cable
- Output cable distance: ≤20m AWG26 HDMI standard cable
- Max. working current: 500mA
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range: -10 to +55℃
- Storage Temperature range: -20 to +60℃
- Operating Humidity range: 10 to 90%RH (No Condensation)
- Storage Humidity range: 5 to 95%RH (No Condensation)
- Dimension: 84.5x61.8x21mm (L x W x H)
- Weight: 135g

Package Included:
- 1 x Set of Audio Extractor
