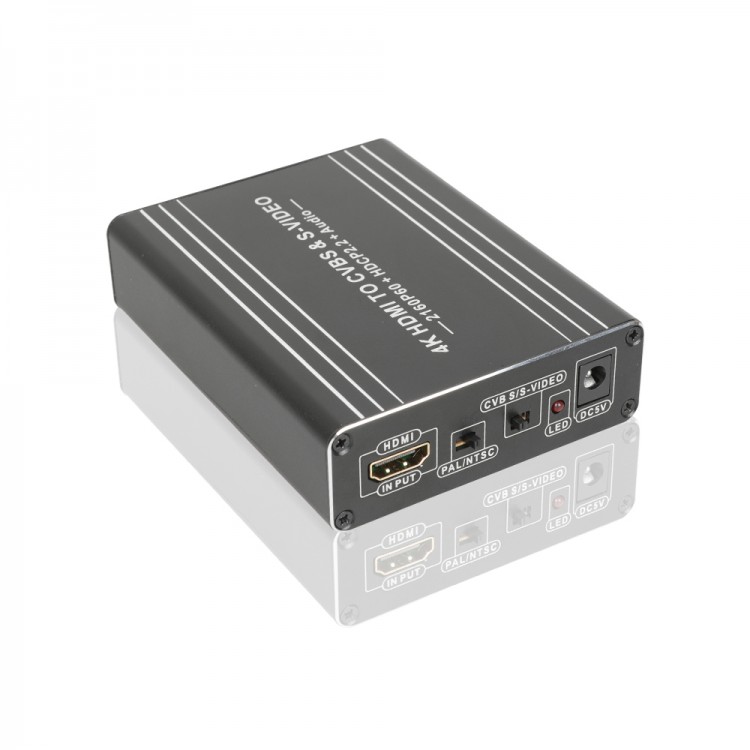

NK-H12 4K HDMI To CVBS & S-VIDEO Converter Adapter 2160P60 + HDCP2.2 + Audio Driver-Free Device
Introduction:
The 4K HDMI to CVBS & S-VIDEO converter is designed to separate integrated HDMI audio/video signal to AV (CVBS) composite video signal and s-video signal, it also supports DVI system sideline signals conversion, helping user to convert HDMI video signal to normal CVBS signal (standard-definition 480i, 576i,). NTSC and PAL TV format all compatible.
Features:
- No need to install drivers, portable, flexible, plug and play
- Low power
- Support NTSC and PAL two standard TV formats output
- Compatible HDMI 2.0b; HDCP 2.2
- S-VIDEO (Y:1.0VPP; C:0.3VPP)
Specifications:
1. Input ports: 1 x HDMI
2. Output ports: 1 x RCA (Yellow, White, Red) + 1 x S-VIDEO
3. Dimensions (mm): 120(D) x 84(W) x 28(H)
4. Wight (g): 170
5. HDMI Input Resolution: 640x480 at 60Hz, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x720 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1600x1200 at 60Hz, 1920x1080 at 60Hz, 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz,1080I50/60Hz, 1080p50/60Hz. 4K30HZ, 4K60HZ
6.CVBS output: PAL, NTSC_M, and (NTSC_J)
Package Included:
- 1 x Set of Converter
