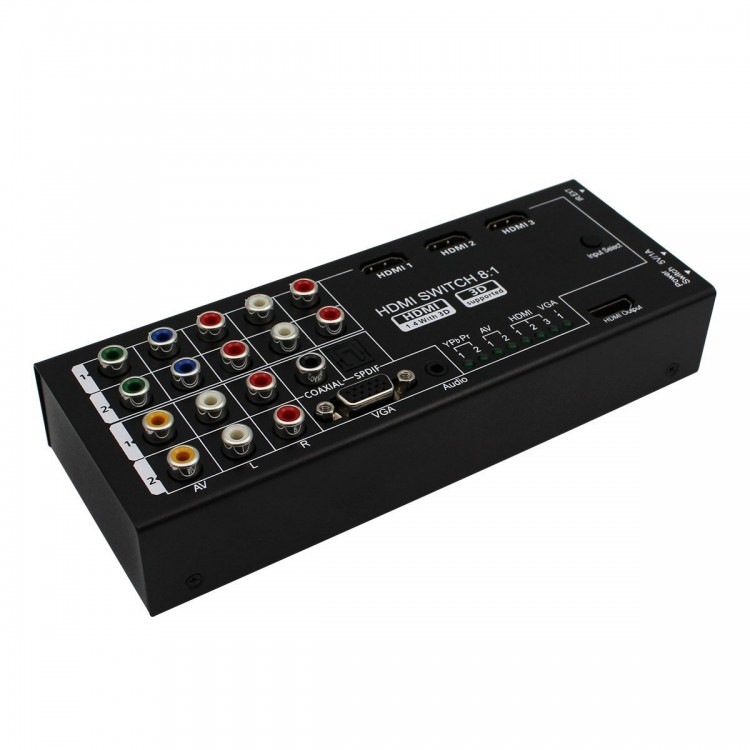

NK-H18 HDMI Switch 8:1 HDMI 1.4 With 3D Supported HDMI Switcher 1080P With IR Remote Control
Introduction:
H18 supports to switch One VGA source, Two Analog Component Video sources, Two Analog Composite Video sources and Three HDMI sources for input. All of above with independent analog audio input. The analog audio from the input is digitized and outputted to the HDMI connection. HDMI input supports HDMI1.3b and HDMI1.4 3D.
On the Analog Component Video and Analog Composite Video channels, If the resolution of the input signal is 480i or 576i, MS0801-E02 will deinterlace the resolution to 480p or 576p respectively.
H18 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss.
H18 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- 8-inputs and 1-output multi-function video/Audio switch
- Inputs contain 2xYPBPR, 2xAV, 1xVGA and 3xHDMI signals, Output is HDMI signal and digital audio signal. No image or color distortion
- Allows display to view any source at any time
- Deinterlace the resolutions of 480i and 576i to 480p and 576p on the YPBPR and AV channels
- Delivers uncompressed digital video with zero signal loss
- Support high definition resolutions 1080P, 1080I, 720P and standard video format
- Double switching modes, IR remote and manual
- HDMI V1.3 / HDMI V1.4 with 3D
- Coaxial and SPDIF audio output
Specifications:
- Operating Temperature Range: -5 to +35℃ (-41 to +95℉)
- Operating Humidity Range: 5 to 90% RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Output Video: HDMI1.4 with 3D (Only valid when input HDMI 3D source)
- Maximum Transmission Distance: <15m (If needed, HDMI extender is optional)
- Power Consumption: 10wtts (Max.)
- Power Supply: 5VDC
- Dimensions: 1950mmx310mmx750mm (WxHxD)
Package Included:
- 1 x Set of HDMI Switch
