NK-S009 HDMI To SDI Converter Adapter Mini 3G HDMI To SDI Audio Supports Output 3G-SDI HD-SDI SD-SDI

NK-S009 HDMI To SDI Converter Adapter Mini 3G HDMI To SDI Audio Supports Output 3G-SDI HD-SDI SD-SDI

Description:
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

Features:
- Shows HDMI source on SDI display
- SDI interface operates at bitrates of 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270 Mb/s
- Supports HDMI input timings: 720p at 50/59.94/60, 1080i at 50/59.94/60, 1080p at 23.98/24/25/29.97/30/50/59.94/60.
- Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270Mbit/s). 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485Gbit/s or 1.485/1.001Gbit/s). 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970Gbit/s and 2.970/1.001Gbit/s)
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Specifications:
- Input Port: 1 x HDMI
- Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- SDI Transmission Rates: 2.970Gbit/s and 2.970/1.001Gbit/s
- In/Output Resolution: 720p at 50/59.94, 60, 1080i at 50/59.94/60. 1080p at 23.97/24/25/29.97/30/50/59.94/60
- Power Supply: DC 5V -12V
- ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
- Dimensions: 9.5 x 4.3 x 2.3cm
- Weight: 150g
- Operating Temperature: 0℃ to 40℃/ 32℉ to 104℉
- Storage Temperature: -20℃ to 60℃/ -4℉ to 140℉
- Relative Humidity: 20 ~ 90% RH (Non-condensing)
- Power Consumption (Max.): 5W

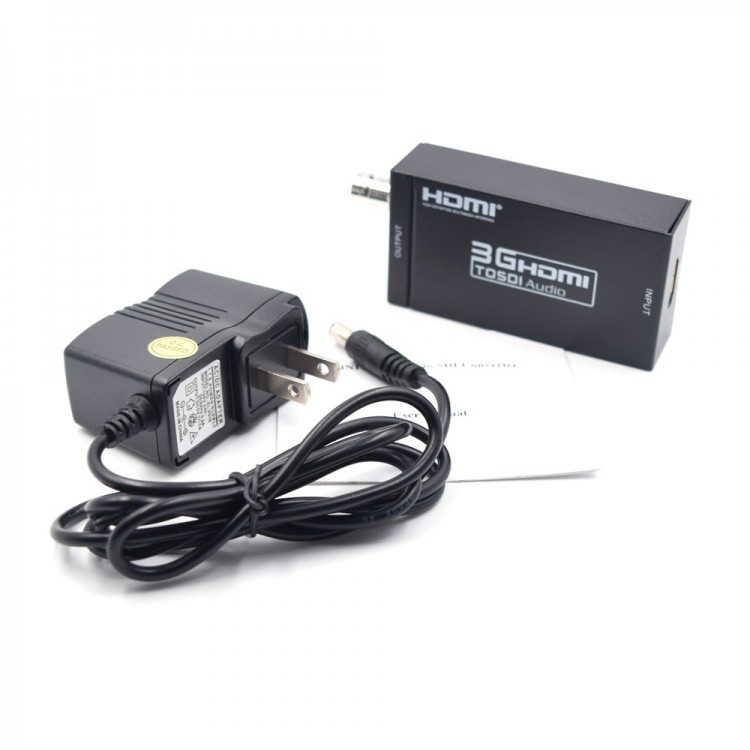

Package Included:
- 1 x Set of HDMI To SDI Converter
