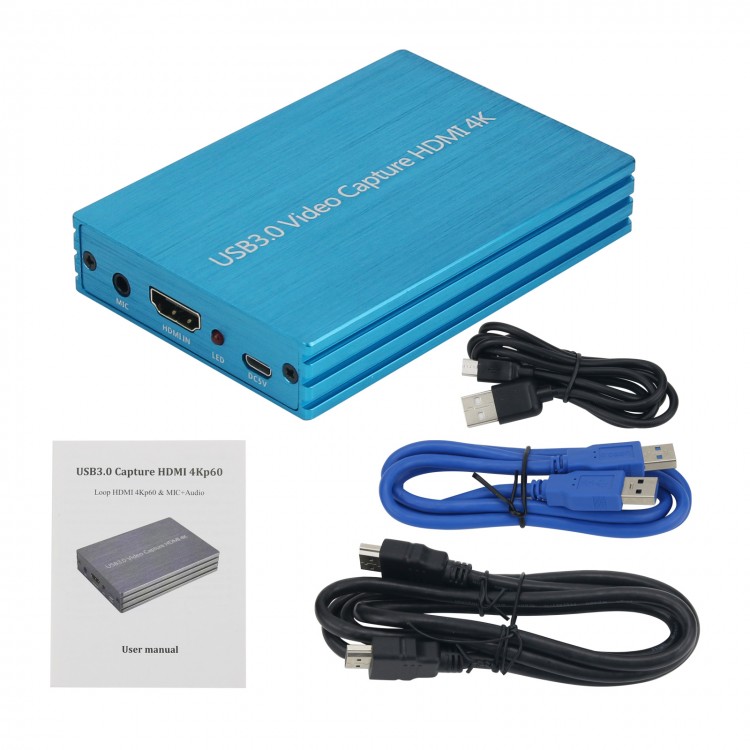

NK-S300 USB3.0 Video Card HDMI 4K HDMI To USB3.0 Video Collection Dongle For Windows Max OS X

NK-S300 USB3.0 Video Card HDMI 4K HDMI To USB3.0 Video Collection Dongle For Windows Max OS X

Introduction:
HDMI to USB3.0 Video Collection Dongle, it is easy to carry, has a superior performance, superior compatibility, simple installation and many other features. It can collect one HDMI 4K30Hz input; for Windows, Linux, Mac OS X and USB 3.0 interface, Compatible with many USB 3.0 chipset (for Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface; The HDMI video collection meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

Features:
- It doesn't need to install a driver, and it is truly PnP
- For Windows, Linux, OS X operating systems
- USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
- It can collect one single channel HD HDMI video signals
- It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically
- The input and output video signal can reach 1080p/60 Hz
- It is compatible with UVC video collection and YUV 422 video output

Specifications:
- Host Interface: USB3.0, *300-350MB/s, USB2.0, *40MB/s
- Input Interface: HDMI interface
- HDMI Input Formats: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24/25/30/50/60

Output Formats:
- Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
- Frame Rate: 25/29.97/30/50/59.94/60 fps
- Audio and video collection standards of UVC and UAC
- For OS Windows 7 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
- Software compatibility: For Windows Media Encoder (for Windows), for Adobe Flash Media Live Encoder (for Windows, OS X), for Real Producer Plus (for Windows), for VLC (for Windows, OS X, Linux), for QuickTime Broadcaster (for OS X), for QuickTime Player (for OS X), for Wirecast (for Windows, OS X), for Potplayer (Windows)and etc.
- Input support 4K30hz, output supports 1080P

Development Interface Compatibility:
- For DirectShow (for Windows), for DirectSound (for Windows), for V4L2 (for Linux), for ALSA (for Linux) OS X (for QuickTime)

Other Parameters:
- Size: 79.5x51x21mm (LxWxH)
- Power consumption: <= 2.5W
- Working Temperature: 0-50℃
- Storage Temperature: -20 to 70℃
- Storage Humidity: 5%-90%

Package Included:
- 1 x Set of Video Collection Dongle

Note:
- Support for Desktop computer i5, notebook i7 or above CPU.
