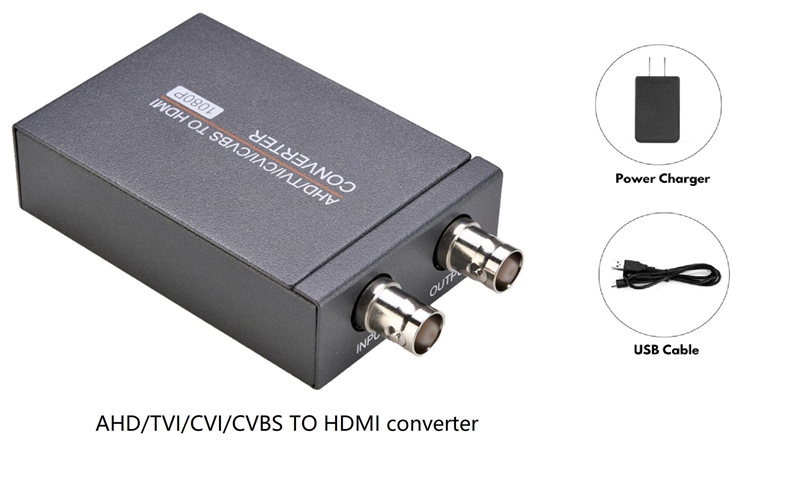

NK-T8 AHD/TVI/CVI/CVBS to HDMI Converter Coaxial Camera Signal Converter with Loop Output 1080P DC USB 5V/1A

NK-T8 AHD/TVI/CVI/CVBS to HDMI Converter Coaxial Camera Signal Converter with Loop Output 1080P DC USB 5V/1A

Description:
- This TVI/CVI/AHD/CVBS to HDMI Converter allows you to seamlessly convert an TVI, CVI, AHD, CVBS signal to 720/1080P HDMI signal. It is widely used for shopping malls, home monitoring, high-definition monitoring, elevator monitoring, traffic monitoring and so on.

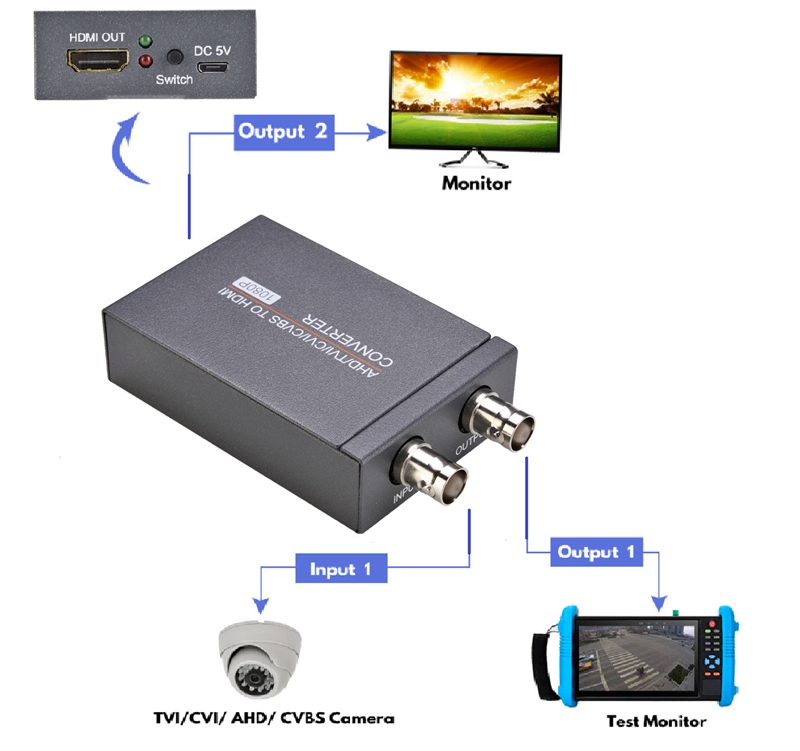

Operation controls and function:
- Choose the TVI CVI AHD CVBS source devices output channel as the output format.
- Power on the converter, the LED will be red.
- If the input source TVI CVI AHD CVBS resolution is compliant to the resolution HDMI display supported, HDMI signal can be output via HDMI port.
- The switch can change the HDMI output as 720P or 1080P, when the power off it will be memory the current HDMI Output Format.
- The OSD will show the current input TVI/CVI/AHD format, when there is no signal input or format is not compliant with this converter, the display will show rainbow.

Specification:
- Power adapter: DC USB 5V/1A

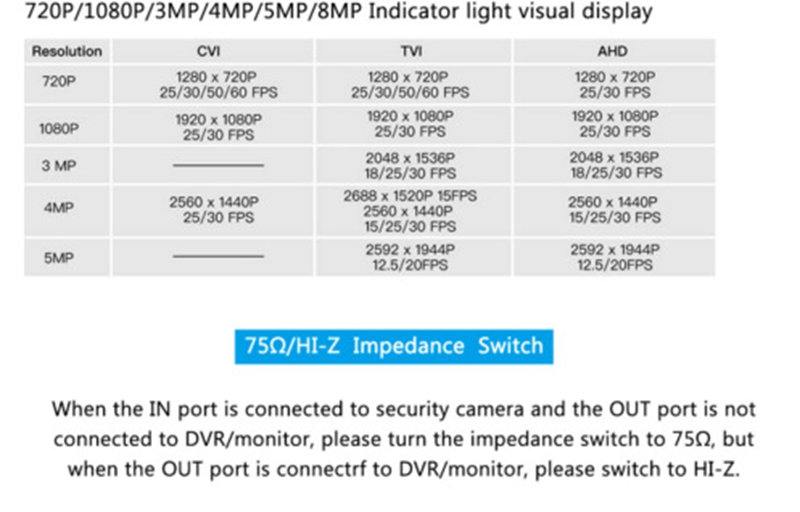

- TVI/CVI/AHD input resolution:
  TVI/AHD: 720P at 30Hz, 1080P at 30Hz, 3MP, 4MP, 5MP, 8MP
  CVI: 720P, 1080P, 4MP, 8MP
  CVBS: 480i, 576I
- HDMI out resolution: 1080P at 60Hz; 720P at 60Hz
- Impedance: 75ohm

FAQ:
Q: No signal output after connecting as required.
Answer:
- Check whether this Converter is power up and LED is light on.
- Check if the TVI/CVI/AHD/CVBS to HDMI Converter input signal whether it is correspond to this TVI/CVI/AHD/CVBS to HDMI converter.
- Check whether the HDMI output device is working fine.
- Check whether the HDMI cable and BNC cable is connect tight, and power up this TVI/CVI/AHD/CVBS to HDMI Converter by power adapter.

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x User Manual
