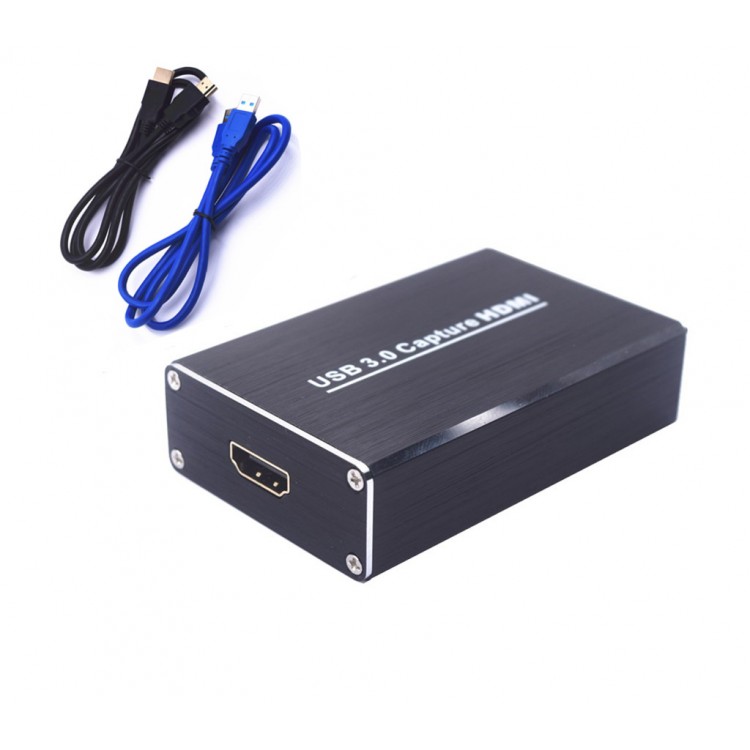

NK-U3 Video Card USB 3.0 HDMI Video Acquisition Card HDMI To USB 3.0 Video Collection Dongle
Introduction:
HDMI to USB3.0 Video Collection Dongle, it is easy to carry, has a superior performance, superior compatibility, simple installation and many other features. It can collect one HDMI 1080p60 input and output signal; for Windows, Linux, Mac OS X and USB 3.0 interface. Compatible with many USB 3.0 chipset (for Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface. The HDMI video card meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.
Features:
- It doesn't need to install a driver, and it is truly PnP
- For Windows, Linux, OS X operating systems
- USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
- The process of video and audio is done by the dongle and will not occupy the CPU
- It can collect one single channel HD HDMI video signals
- It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically
- The input and output video signal can reach 1080p/60Hz
- It is compatible with UVC video collection and YUV 422 video output
Specifications:
- Host Interface: USB3.0, *300-350MB/s, USB2.0, *40MB/s
- Input Interface: HDMI interface
- HDMI Input Formats: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24/25/30/50/60
- Output Formats Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576/4K30HZ
- Frame Rate: 25/29.97/30/50/59.94/60 fps
- Audio and video collection standards of UVC and UAC
- Support for OS Windows 7 Windows Server 2008 R2, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
- Software compatibility: for Windows Media Encoder (for Windows), Adobe Flash Media Live Encoder (for Windows, OS X), for Real Producer Plus (for Windows), VLC (for Windows, OS X, Linux), QuickTime Broadcaster (for OS X), QuickTime Player (for OS X), Wirecast (for Windows, OS X), Potplayer (for Windows)and etc.
- Development interface compatibility: for DirectShow (for Windows), DirectSound (for Windows), V4L2 (for Linux), ALSA (for Linux) OS X (for QuickTime)
- Size: 79.5x51x21mm (LxWxH)
- Power consumption: <= 2.5W
- Working Temperature: 0 to 50℃
- Storage Temperature: -20 to 70℃
- Storage Humidity: 5%-90%
Package Included:
- 1 x Set of Video Card
