Description:
This NK5600 Optical Time Domain Reflectometer is a high-performance, multi-functional test instrument designed for the FTTX network. The product has a maximum resolution of 0.05m and has a minimum test area of 0.8m.

This product integrates the OTDR/light source, optical power meter, and VFL functions in one body. It uses touch and key dual operation modes. The product has a rich external interface and can be remotely controlled through an Ethernet interface, or through two different USB interface, external U disk, printer and PC data communication.

Features:
- Less than 0.8m short-term event dead zone, test fiber jumper easily
- Integrated 5.7-inch color TFT LCD display, key/touch dual operation
- Built-in stable light source function 1310/1550nm
- Built-in optical power meter test function
- Built-in visible red fault location (VFL)
- Has a unique test result self-diagnosis function
- Independent and convenient one-button automatic operation mode, real-time test function buttons
- Multi-wavelength synchronization test function
- With multiple waveform viewing capabilities
- Link-band non-destructive testing (online test module)
- Communication light automatic monitoring function
- With test file wireless transmission function
- Battery low voltage alarm function
- WinCE Windows operating system

Specifications:
- Model: NK5600
- Dynamic Range: 32/30dB
- Ranging Accuracy: ± (1 m + sampling interval + 0.005% × distance) (excluding refractive index insertion error)
- The Highest Ranging Resolution: 0.05m
- Test Range: 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512km
- Test Pulse Width: 5, 10, 30, 100, 275, 500, 1000, 5000, 10000, 20000ns
- Loss Threshold: 0.01dB
- Sample Points: 128k
- Linearity: 0.05dB/dB
- Loss Resolution: 0.001dB
- Waveform Storage Capacity: ≥1000 pieces
- External Interface: USB, Min-USB, RJ-45
- Optical Output Interface: FC/SC/ST (replaceable)
- VFL: 650nm±10nm, ≥5mW (typical)
- Optical Power Meter: Wavelength range: 1200nm to 1650nm, power range: -45 to +26dBm
- Stabilized Light Source Function: 1310/1550nm: -5dBm, CW (270Hz, 1K270Hz, 2K270Hz)
- Display: 5.7-inch color TFT LCD touch screen
- Battery: 7.4v/6300mAh Lithium battery pack, supports Up to 12 hours of continuous working time
- Power Output: 19V, 1.31A
- Adapt to the Environment: Working temperature: -5 ~ +50 °C, storage temperature: -20 ~ +70 °C,
- Relative Humidity: 0 to 95% without condensation
- Item Size: 215mm x 150mm x 70mm (L*W*Thickness)
- N.W. (with battery): <1.5kg

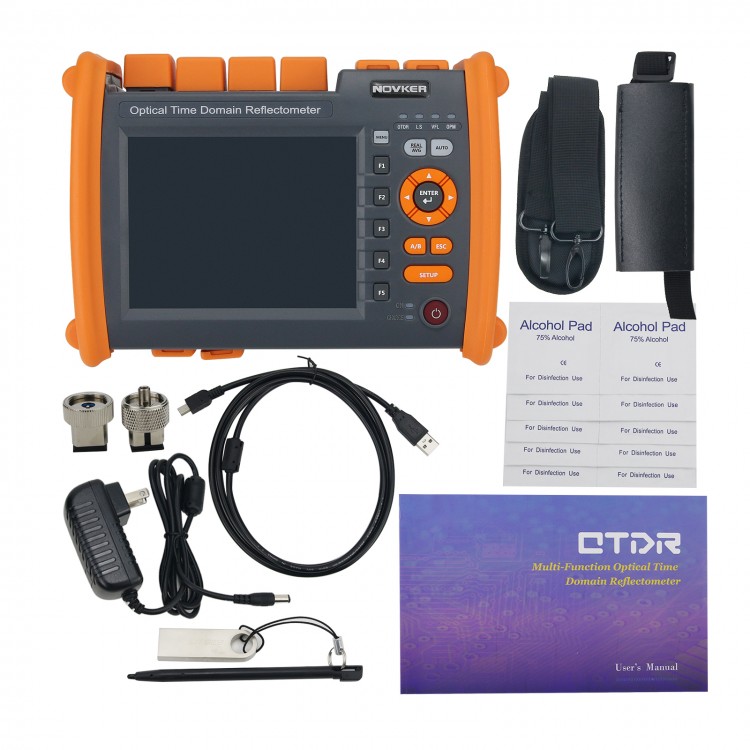

Package Included:
- 1 x OTDR Machine
- 1 x Tool Bag
- 1 x Test Report
- 1 x Certificate
- 1 x Warranty Card
- 1 x Strap
- 1 x Holder
- 1 x Bag of Cotton Swab
- 1 x Power Adapter
- 2 x Optical Converters
- 1 x Touch Pen with USB
- 1 x USB Cable
- 1 x User Manual
