NMRF FBP-1590s SAW Band Pass Filter for GPS L1 Band Satellite Positioning and for Passive Antenna System Only
Description:
It is constructed of SAW devices with precise bandwidth and excellent cut-off characteristics. It is suitable for Beidou I and II generation B1 band, GPS L1 band, and GLONASS L1 band. The filter is only suitable for passive antenna systems.
Specifications:
- Model: FBP-1590s
- Impedance: 50 Ohms
- Maximum carrying power: 200mW (23dBm)

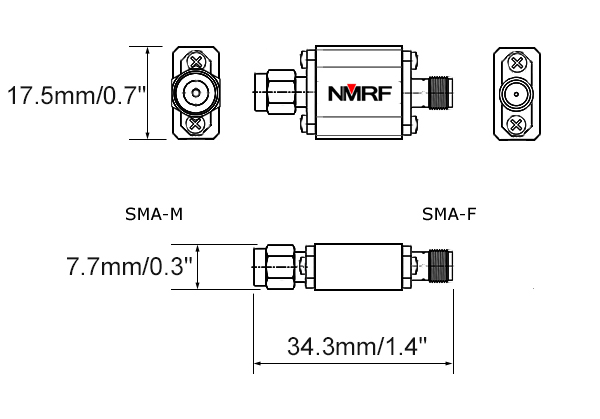

- Interface: SMA-M and SMA-F
- Center frequency/bandwidth: 1585.5 MHz / 60 MHz
- Passband (3dB): 1550 to 1610 MHz
- Passband insertion loss: ≤ 2.5 dB
Package Included:
- 1 x SAW Filter

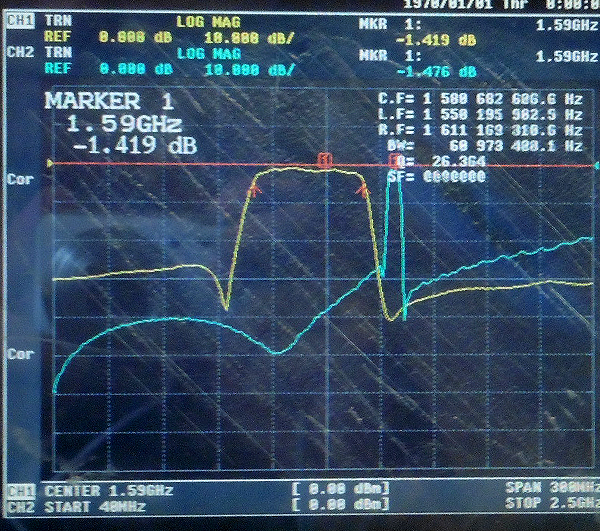

Frequency Response Diagram:
The blue line span is 40-2500MHz; the center frequency of the yellow line scan is 1590MHz, and the span is 300MHz.
