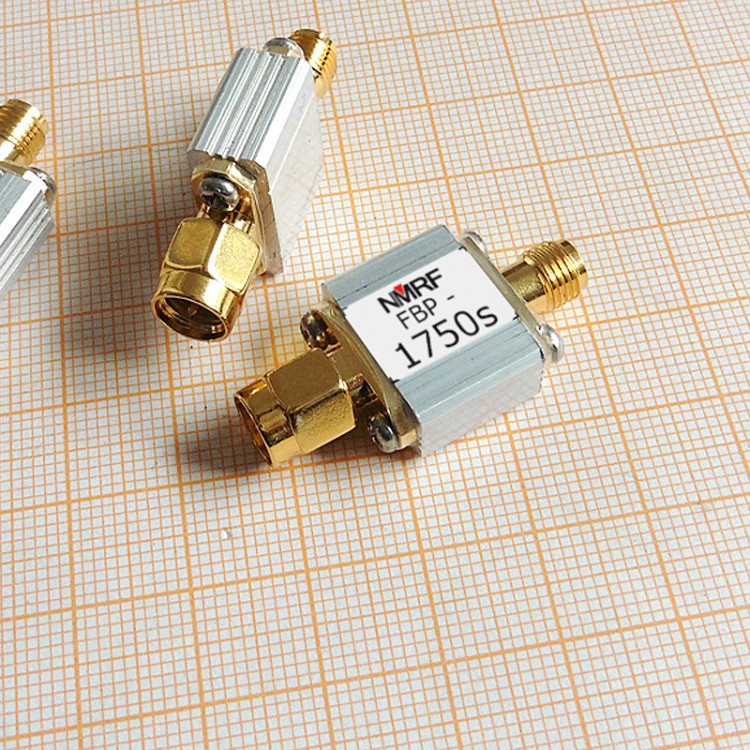

NMRF FBP-1750s SAW Filter Band Pass Filter 1DB Bandwidth 1710-1785MHz for 1747MHz UMTS/AWS System
Description:
This filter has a 1dB bandwidth of 75MHz and a steep cut-off characteristic. It is used for UMTS/AWS signal testing at 1710-1785MHz. In addition, it can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Specifications:
- Model: FBP-1750s
- Impedance: 50 Ohms
- Center frequency: 1747.5 MHz
- Passband (1dB bandwidth): 1710～1785 MHz
- In-band insertion loss: < 2.5 dB (typical: ~ 1.9 dB)
- Maximum carrying power: 100 mW (20 dBm)

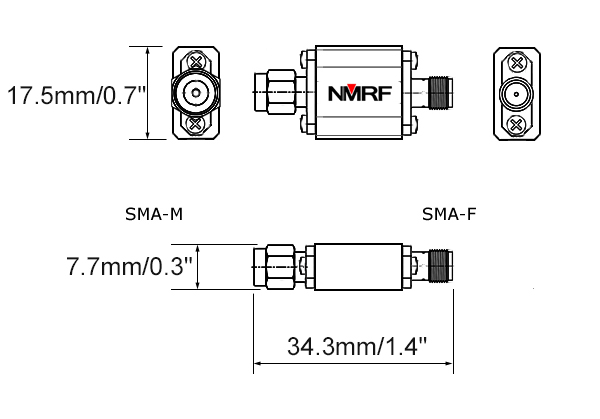

- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter

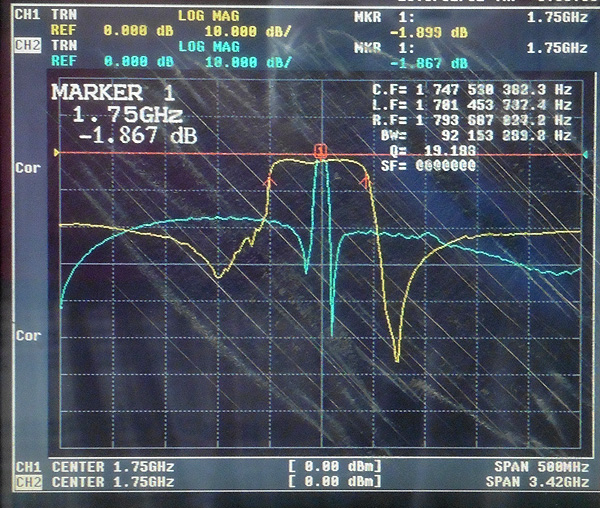

Frequency Response (labeled as 3 dB bandwidth):
