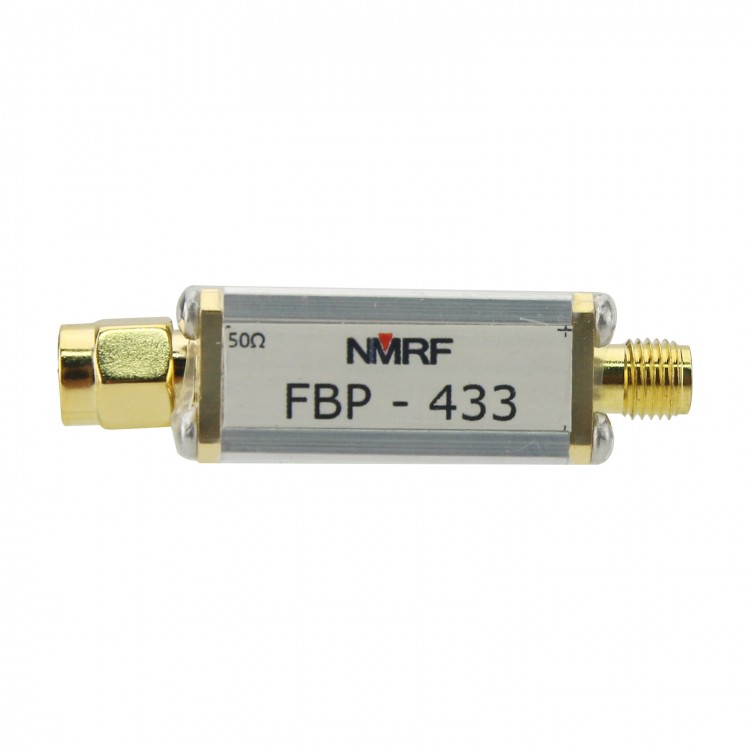

NMRF FBP-433 High Quality 390-470MHz Band Pass Filter 50ohms with SMA Connector for Image Transmission Receiver
Features:
- Ultra small volume, low insertion loss, excellent selectivity, high out of band suppression, and high-power processing.
- Application: dedicated for 390-470MHz (433.92 MHz, 435 MHz) image transmission receiver, laboratory and other highly selective applications.
Specification:
- Model: FBP-433
- Impedance: 50ohms
- Center frequency: 433MHz
- Center frequency insertion loss: <=3.5dB at 433MHz
- 3dB bandwidth: 390 ~ 470MHz
- 30dB bandwidth: 350 ~ 560MHz
- Greater than 50dB stop band: DC ~ 250 MHz & 1100 ~ 2500 MHz
- Maximum load capacity: 10W (40dBm)

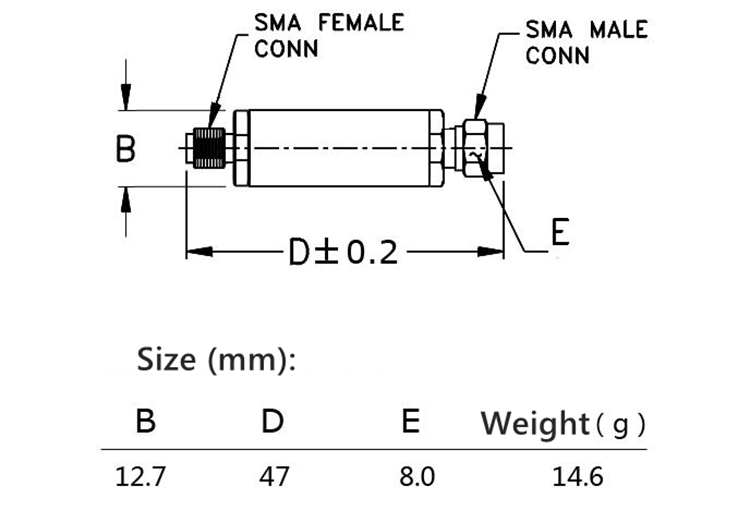

- Interface: SMA male/female connector

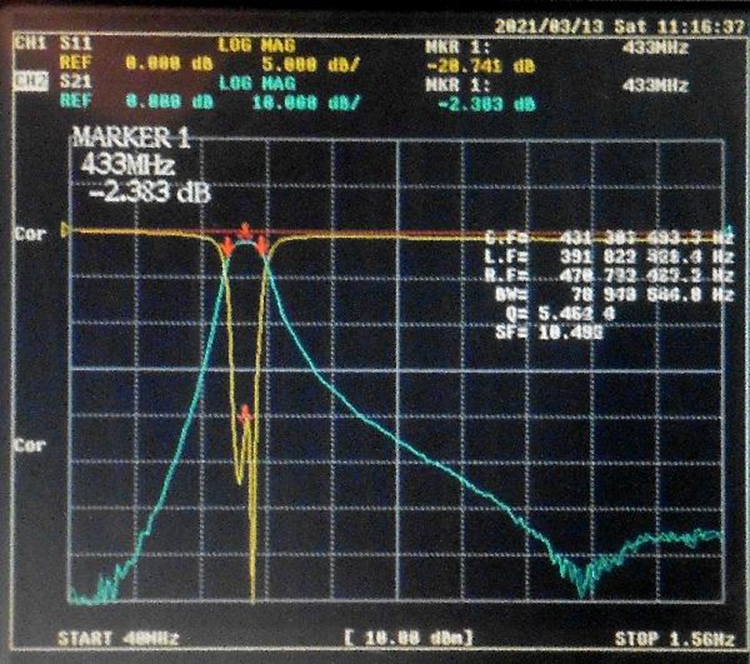

- Frequency response chart (scanning range: 40-1500MHz. The blue line represents transmission loss, with a vertical scale of 10dB per grid. The yellow line represents reflection loss, with a vertical scale of 5dB per grid. The diagram is labeled as 3dB bandwidth):

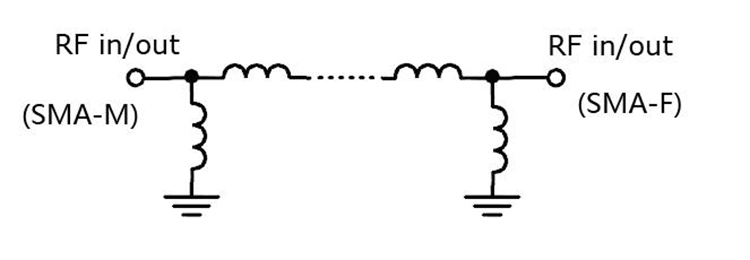

Circuit Pattern Diagram (Note: both ends are DC short circuited to ground, please note when applying):
Package Included:
- 1 x Band Pass Filter
