NMRF FBP-915s SAW Filter RF Band Pass Filter SMA Connector for 915MHz (902-928MHz) RFID Receivers
Description:
This filter has a 1dB bandwidth of 26MHz and a steep cut-off characteristic. It is used for performance optimization of 915MHz RFID receivers. Additionally, it effectively filters out-of-band signals, reduces noise, and increases dynamic range.
Specifications:
- Model: FBP-915s
- Impedance: 50 Ohms
- Center frequency: 915 MHz
- 1dB passband: 902 to 928 MHz
- In-band insertion loss: <= 2.0 dB
- Maximum carrying power: 100 mW (20 dBm)
- Interface: SMA-M and SMA-F
Package Included:
- 1 x SAW Filter

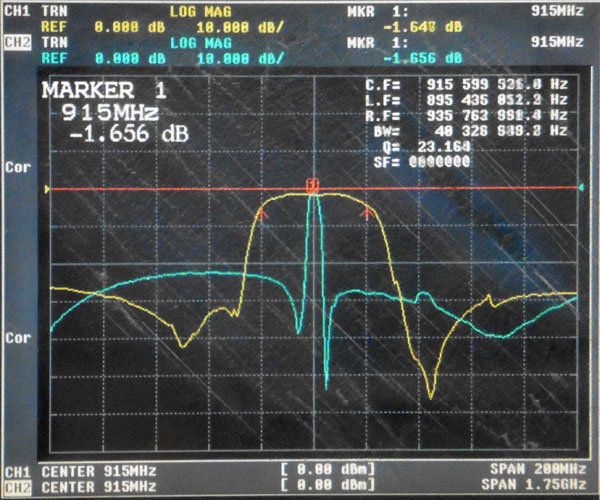

Frequency Response Diagram:
The yellow line in the figure has a span of 200MHz, the blue line has a span of 1750MHz, the marked points are 3dB bandwidth, and the vertical scale is 10dB per division.
