NMRF FBP-922s SAW Filter Band Pass Filter 920-925MHz 1DB Bandwidth 5MHz for 922.5MHz RFID Receivers
Description:
This filter has a 1dB bandwidth 5MHz and a steep cut-off characteristic. It can be used to improve the performance of 922.5MHz RFID receivers. In addition, it can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Specifications:
- Model: FBP-922s
- Impedance: 50 Ohms
- Center frequency: 922.5 MHz
- Passband (1dB bandwidth): 920 to 925 MHz
- In-band insertion loss: < 3.5 dB
- Maximum Carrying Power: 20 mW (13 dBm)

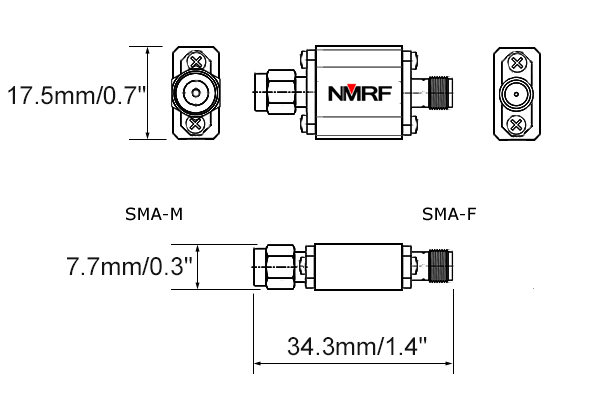

- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter

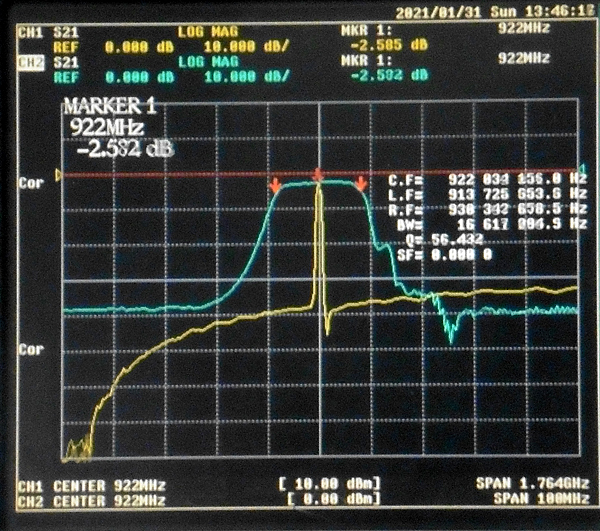

Frequency Response Diagram:
Marked as 3dB bandwidth in the figure; scanning center frequency: 922MHz; blue line span: 100MHz; yellow line span: 1764MHz; vertical resolution: 10dB per grid
