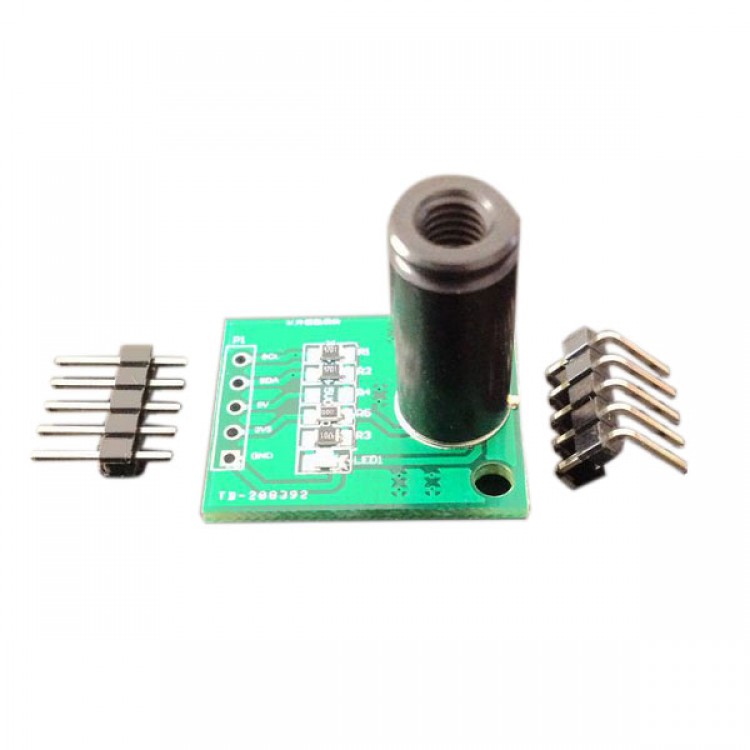

Non-touch Type MLX90614 Infrared Temperature Measurement Sensor Module No Singlechip IIC Communication Long Distance
Features:
- Module application voltage 3.3V or 5V
- Current: 2MA
- Adopting serial port RS232 communications
- Factory calibration settings within wide temperature range:
Sensor temperature range +125 ~ -40 C
Object temperature range -70 ~ +380 C
- Ta and To by 0 to +50 C temperature range, the accuracy can reach 0.5 degrees C
- (medical) high accuracy calibration
Long distance module:
- Distance scale is 12:1 for module measuring objects
- When the hot object is 1cm size, the max measuring distance is 12cm
