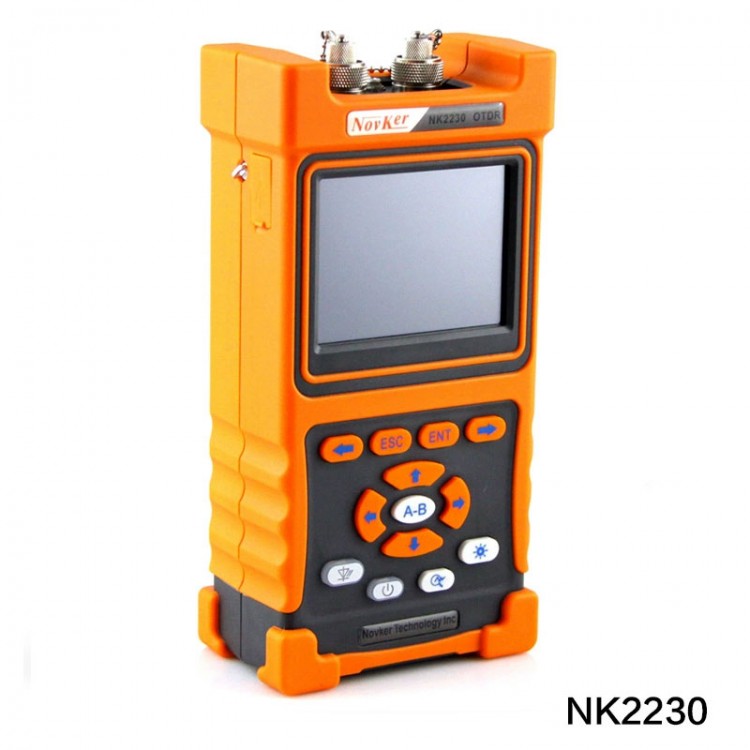

Novker NK2230 (NK2230s-S1) Mini OTDR Tester Optical Time Domain Reflectometer and VFL with Tool Bag

Novker NK2230 (NK2230s-S1) Mini OTDR Tester Optical Time Domain Reflectometer and VFL with Tool Bag

Description:
The handheld optical time domain reflectometer is a new generation of intelligent optical measuring instrument designed for the optical fiber communication system testing. It is mainly used to measure the parameters of optical fibers and cables, such as length, loss, and connection quality, etc. It can realize the accurate positioning of event points and fault points, and can be widely used in the construction, maintenance testing and emergency repair of the optical fiber communication systems as well as the research, production and production measurement of optical fibers and cables and so on. This product can provide you with the highest performance of solutions for installation and construction of fiber optic network construction and the subsequent fast and efficient maintenance and troubleshooting testing.

It has novel appearance and it is durable to use. It has the simplest interface and enables intuitive operation in the OTDR industry. Among the same type of handheld products, its buttons and touch screen can greatly simplify application. With one-key analysis, it can quickly obtain test results. The whole device adopts an intelligent power management mode. It can be used to test 2m optical fiber jumpers, supporting 1.5m ultra-short event dead zone.

It can be used for over 10 hours due to high-capacity lithium battery. Thus, it is very suitable for outdoor use.

Features:
- Novel and beautiful appearance and structure design
- Touch display screen, the most convenient operation mode in the industry, is simple and easy to use
- It can easily test optical fiber jumpers, supporting ultra-short event dead zone
- Convenient one-click analysis helps you quickly obtain test results
- During tests, the detection can be completed without interrupting signal light in the line
- Built-in high-power visual red light fault location function
- It can also be used as a visual fault locator
- Universal optical output connector makes it easy to replace and can realize various interface tests
- 10+ hour battery life enables the OTDR to be used for field construction for a long time
- Highly intelligent analysis software can accurately identify faulty welded points, connectors and even macro bends
- Languages: Chinese, English, etc.

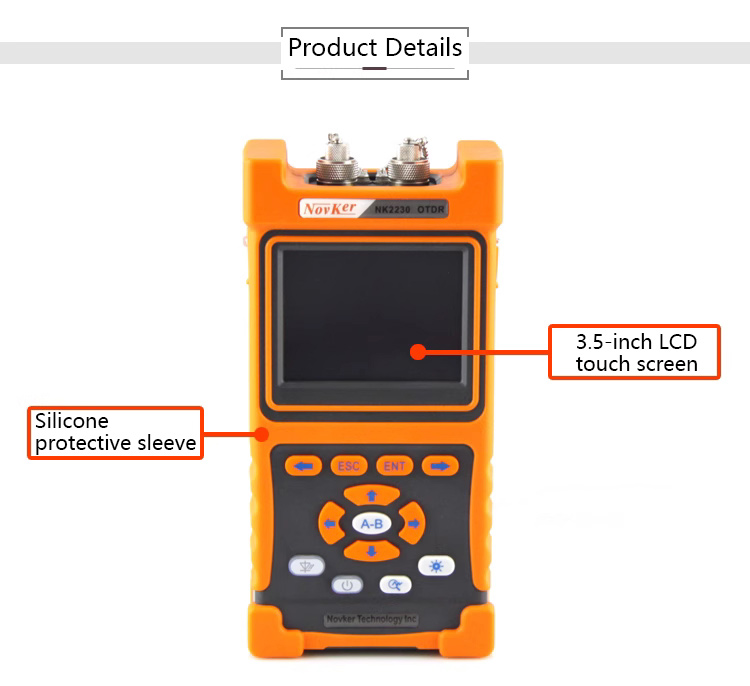

- With a 3.5" touch screen and a silicone protective sleeve

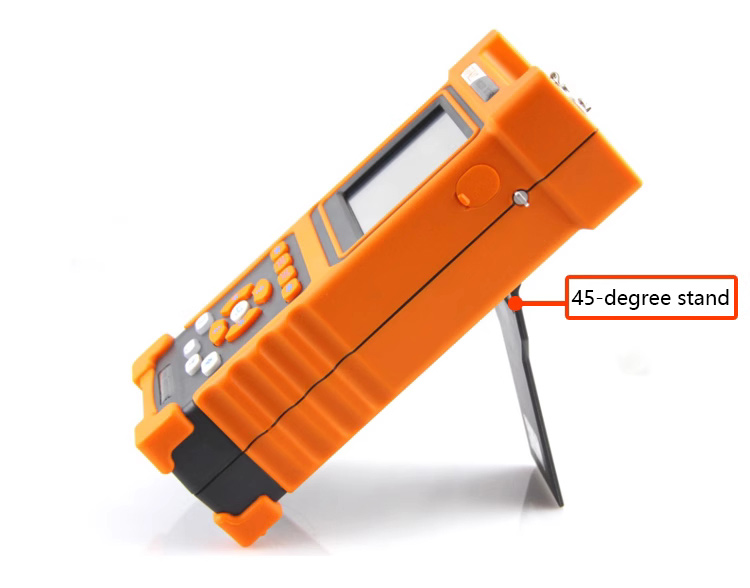

- 45-degree back stand

Specifications:
- Item: S1
- Fiber Type: Single-mode
- Center wavelength: 1310nm/1550nm±20nm
- Maximum dynamic range: 30/29dB
- Event dead zone: 1.5m
- Attenuation dead zone: 10m
- Display type: 320x240, 3.5-inch color LCD and touch screen operation
- Optical Interface: FC/UPC (Interchangeable SC and ST)
- Test range: 500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km and 128km
- Pulse duration: 10, 30, 50, 100, 275, 500, 1000, 5000 and 10000ns
- Ranging accuracy: ± (1m + sampling interval + 0.005% x distance)
- Attenuation measurement accuracy: ±0.05dB
- Reflectance measurement accuracy: ±4dB
- Data storage: ≥ 2000 test curves

VFL:
- Output: ≥5km

Environmental Adaptability:
- Power supply mode: AC/DC adapter: AC: 100V~240V(1.5A), 50/60Hz; DC: 18V~20V(2A) . Internal lithium-ion battery pack: 7.4V, 4400mAh
- Battery working time: ≥ 10 hours
- Operating temperature: -5°C to 50°C
- Storage temperature: -20°C to 70°C
- Relative humidity: 0~95% no condensation

Package Included:
- 1 x OTDR
- 1 x Tool bag
- 1 x User manual
- 1 x Power adapter
- 1 x Stylus
- 1 x USB drive
- 1 x Adapter connector
- 1 x Paper packing list
