Nowna XU316 USB Audio Interface USB Interface Digital Interface Made-in-China for MQA Amanero
Features:
- XU316 asynchronous USB digital interface for MQA and coaxial output
- For MQA full solution, with a maximum output of 384kHz for MQA. Supports for MQA Studio
- The latest XU316 solution for XMOS supports up to PCM32bit/768kHz and DSD64~DSD512
- Two Japanese crystal oscillators (for NDK) with low-phase noise provide clocks for audio
- Supports coaxial and i2S simultaneous output. Equipped with an isolation transformer and a coaxial socket
- The USB interface has electrostatic protection, making the board more durable
- Clock synchronization function. It has a lower jitter compared to boards that don't have this feature
- The sound quality is better than that for Amanero. Fully compatible with the original one for Amanero, it can be used to upgrade your devices
- Femtosecond CCHD575 crystal oscillators can be used to replace our crystal oscillators
- With a toggle switch, it is compatible with all DAC chips
- High-spec USB audio, 32bit/768kHz PCM and DSD512
- The clock realignment circuit effectively reduces the jitter of the logic circuit to 75ps
- It has UART output audio format and audio sample rate information
- I2C interface. We can customize the control software for users who purchase in bulk
- There are 512fs and 1024fs master clock jumper options to accommodate different DACs
- It can provide 3.3V and power up to 200mA
- DFU firmware upgrade

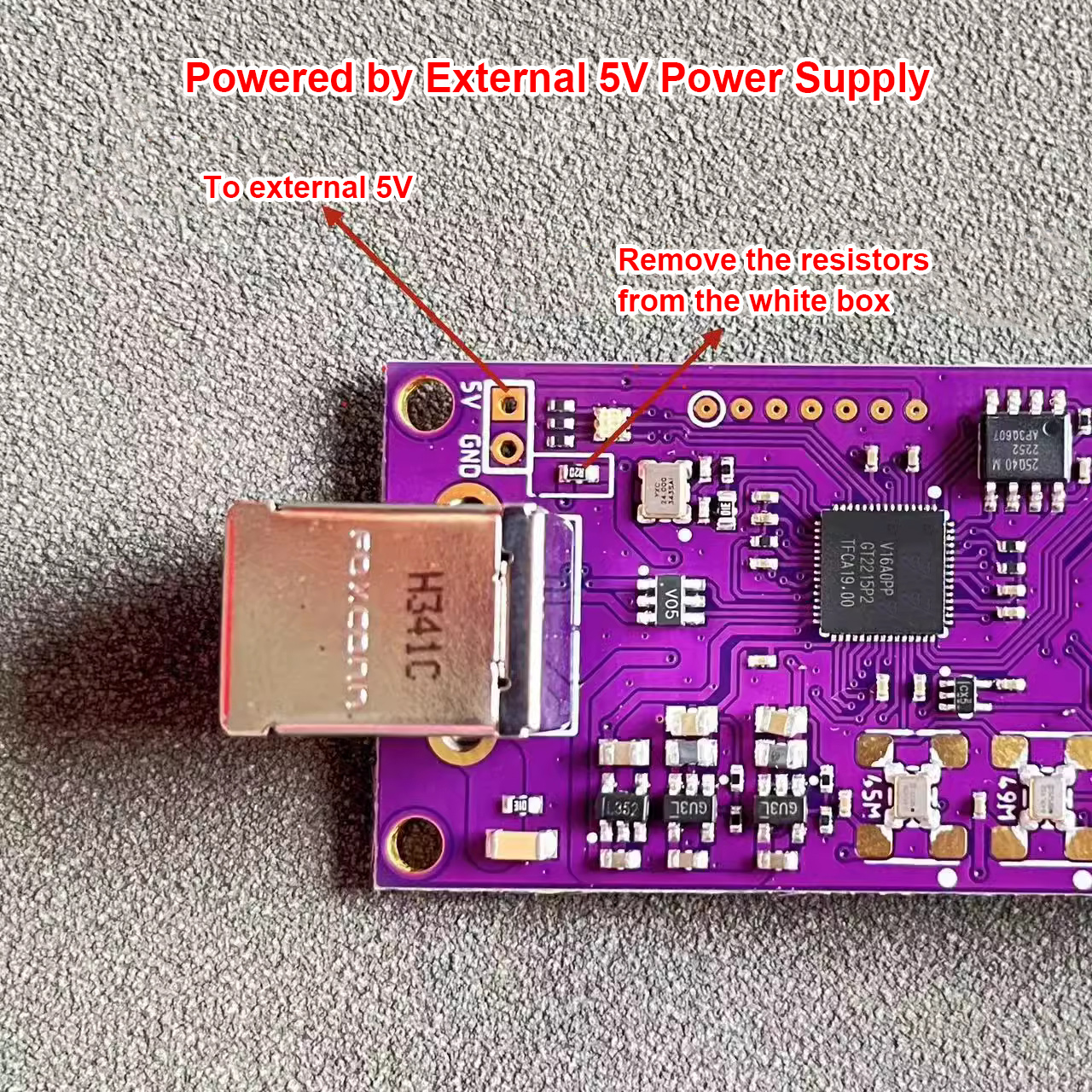

- Can be powered via its USB port. It can also be powered by an external 5V power supply (the method is shown in the picture below)
- 3-color indicator light for MQA types: Green light for ordinary MQA, blue for MQA studio, and magenta for MQA OFS
Specifications:
- Input interface: USB type-B

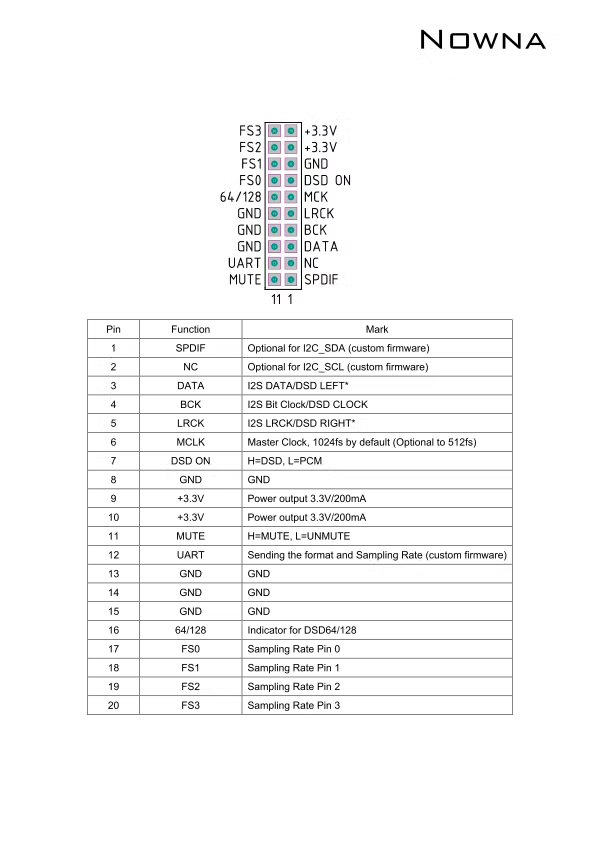

- Output interface: 20-pin 2.54mm pitch and coaxial output
- Coaxial output level: 500mVp-p
- Sampling rate: 44.1kHz~768kHz for I2S; 44.1kHz~384kHz for MQA; 2.8224MHz~22.5792MHz for DSD; 44.1kHz~192kHz for SPDIF
- Bit width: 1bit, 24bit and 32bit
- For MQA: Normal, studio and raw sample rate
- Clock jitter: 75ps (typical)
- Power consumption: 5V/200mA

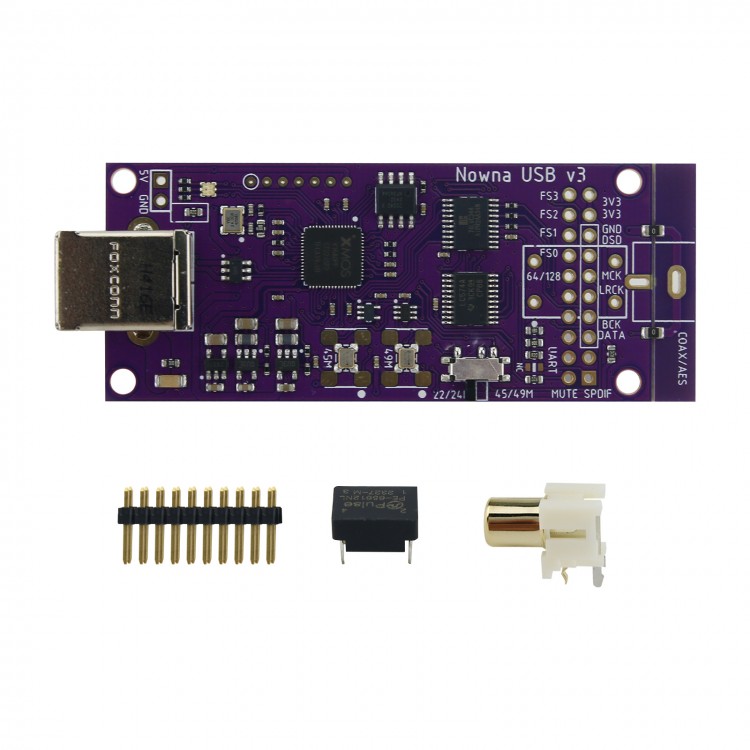

Package Included:
- 1 x USB interface
- 1 x RCA socket
- 1 x Pin header
- 1 x Isolation transformer
Packaging Details:
- Weight: 0.2kg
Note:
- Made in China, it is not an original one.
- Windows system needs to install drivers. It is recommended to use the board for Win10 and above. The board can be directly used for Apple system, Dafei and mobile phones, no driver required.
- Equipped with a RCA socket, a pin header (dual row and 20 pins in total), and an isolation transformer. By default, these accessories are not installed for shipping. Please contact us if the accessories need to be welded.
