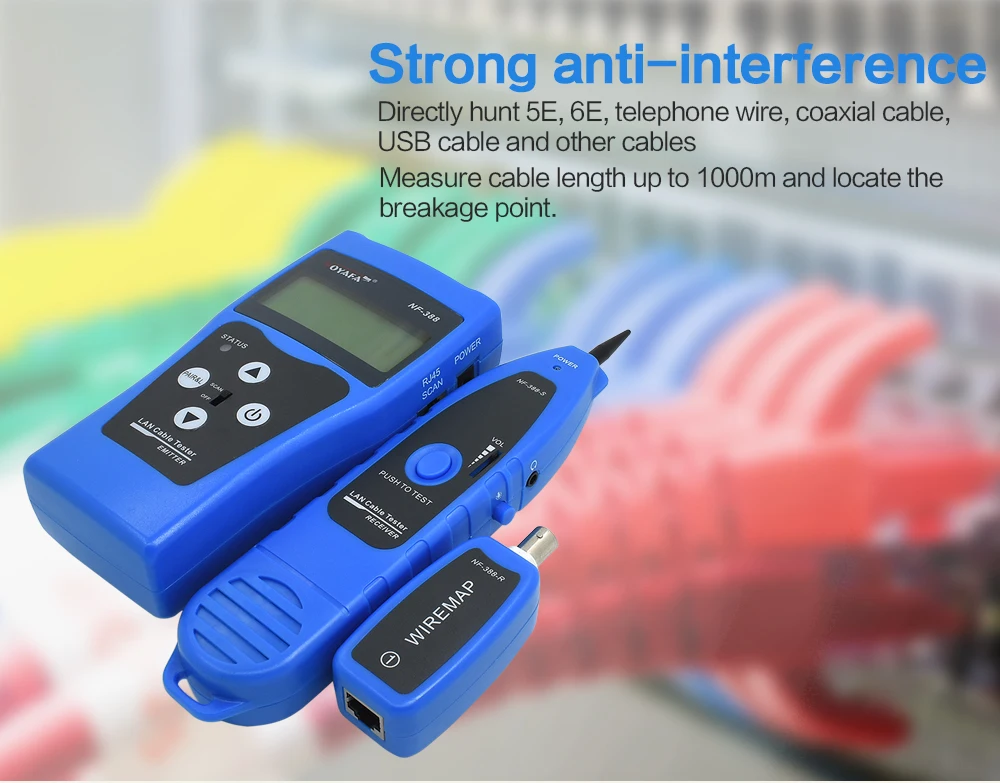

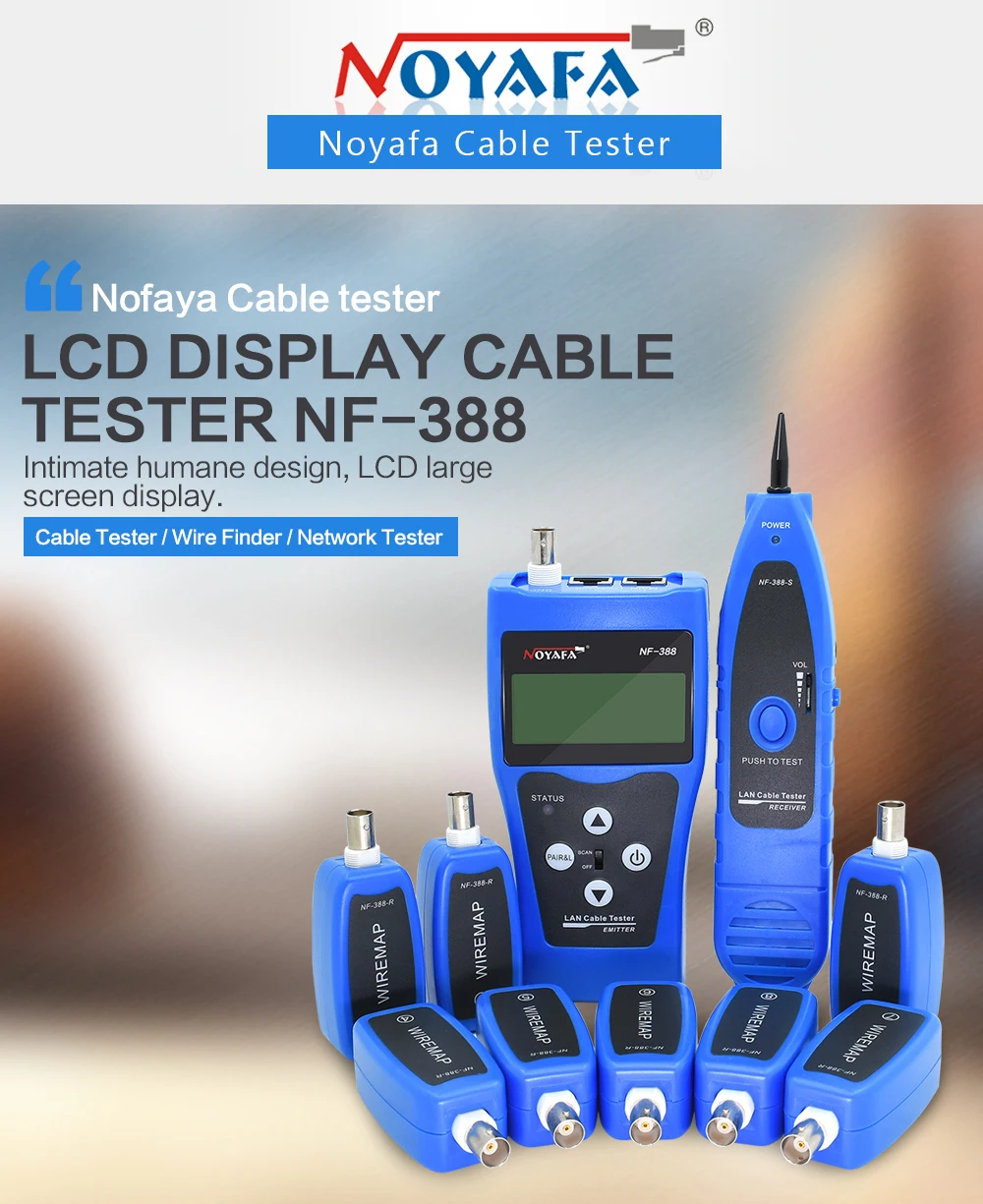

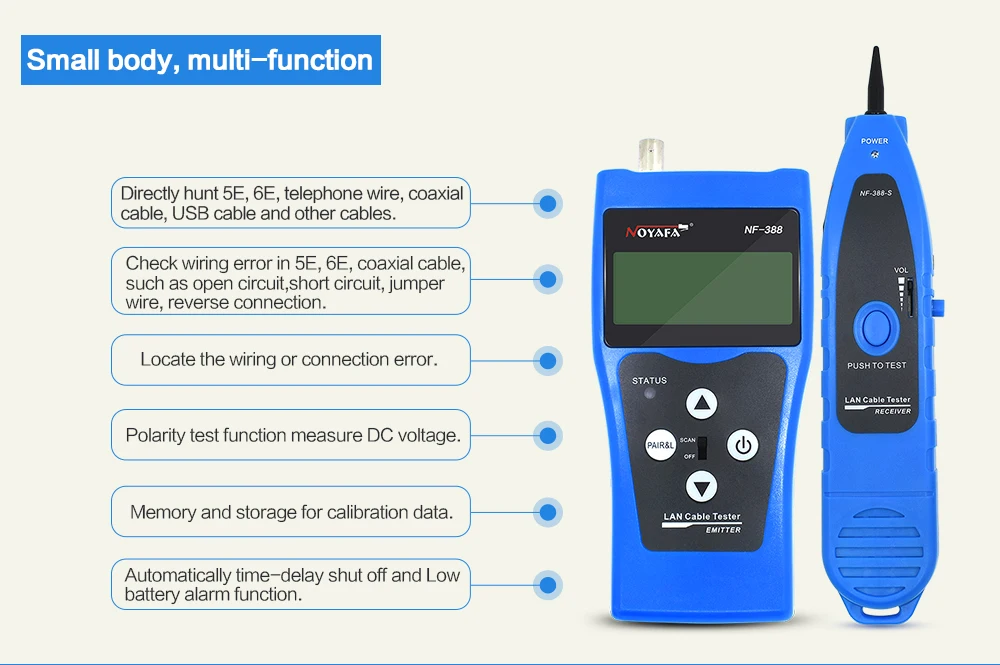

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.

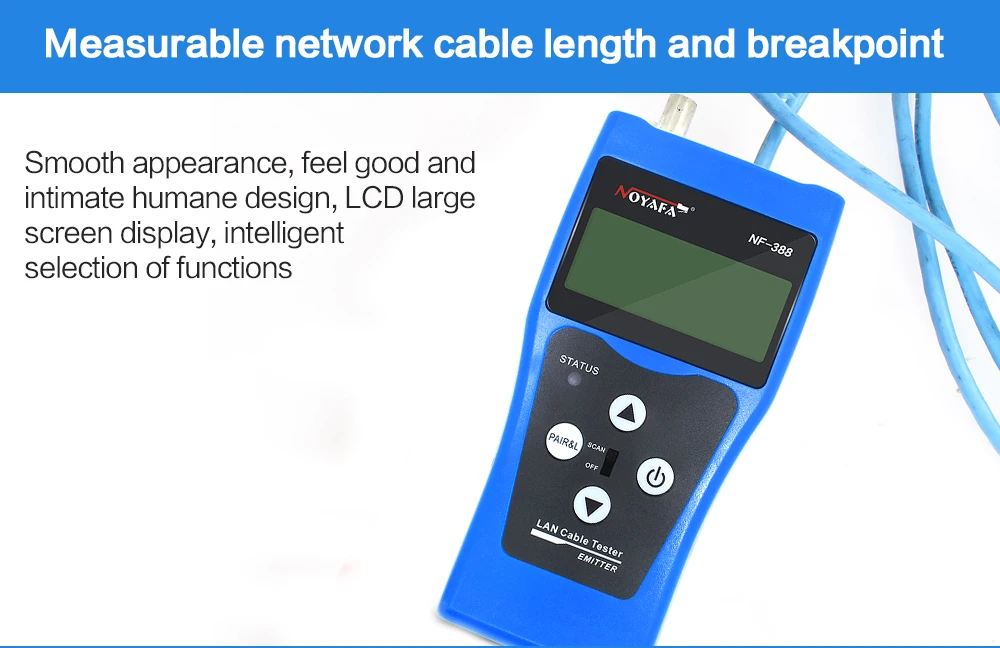

4. Measure cable length and determine the distance of breakage point.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.

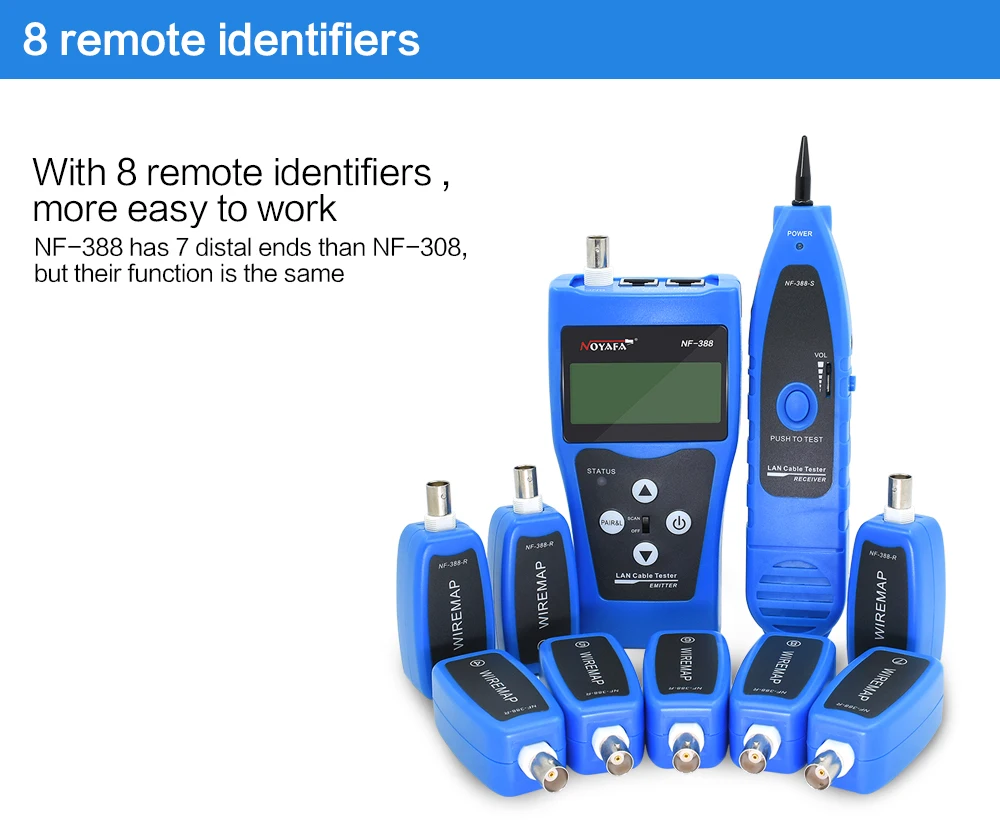

8. With 8 remote identifiers , more easy to work.
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
.

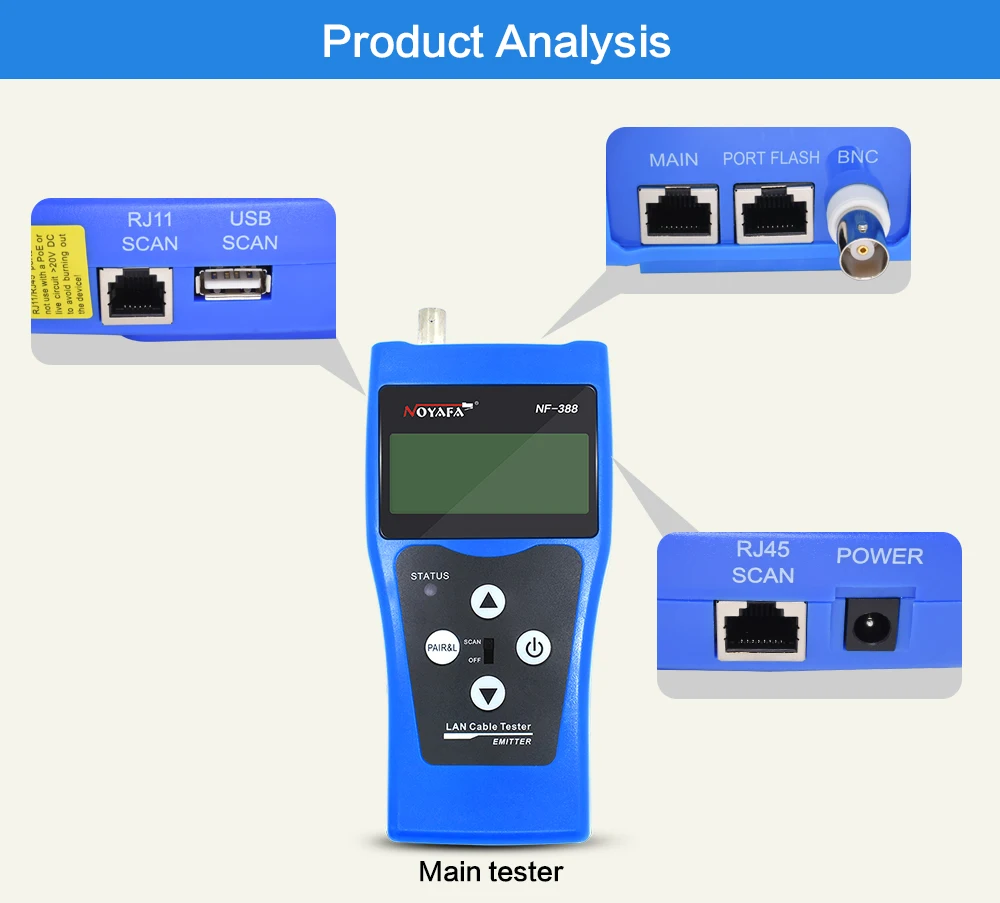

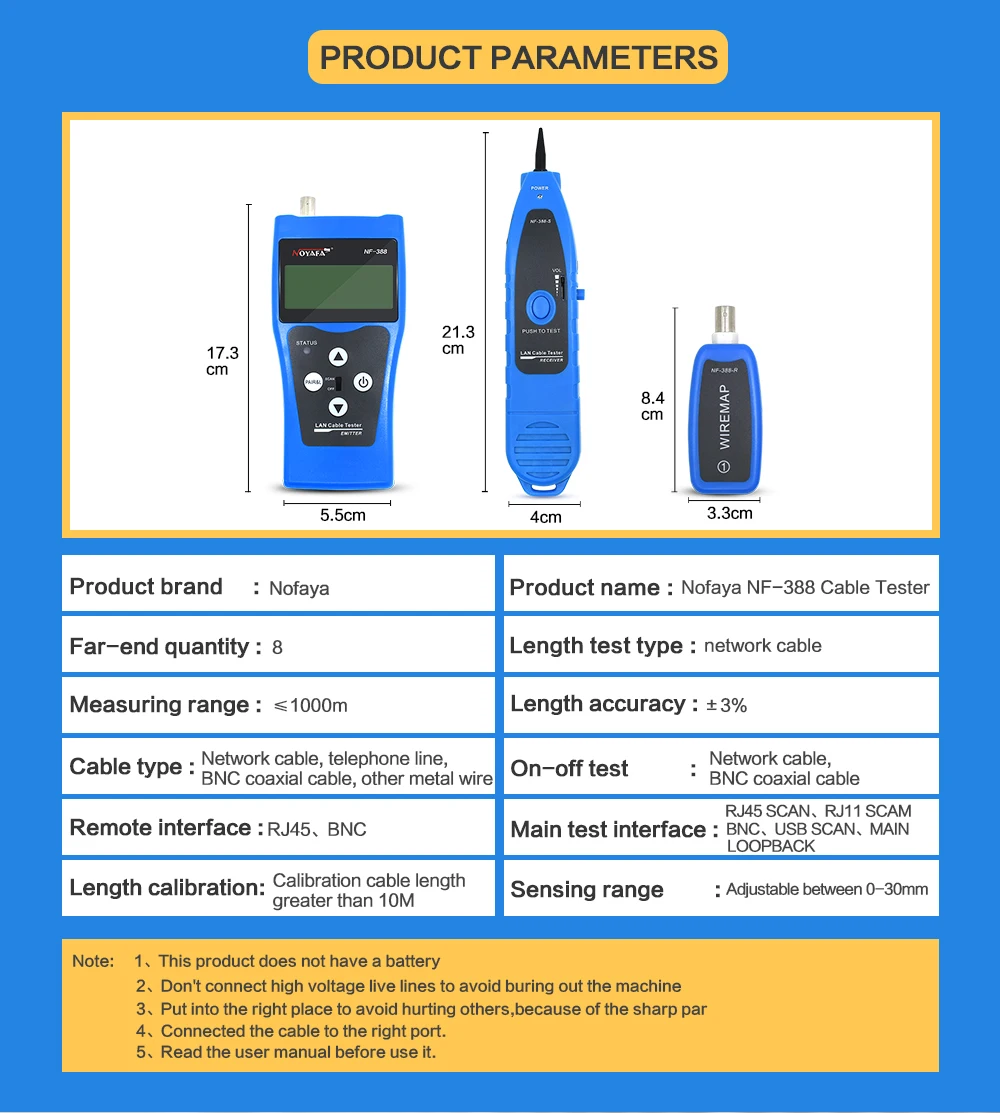

| NF-388 Transmitter specifications | |
| Indictor | LCD 53x25 mm, with back light |
| Tone frequency | 225 Hz |
| Max. distance of transmission | 2 km |
| Max. distance of cable map | 300m |
| Max. working current | Less than 70mA |
| Tone mode | 2 Tone adjustable |
| Compatible connectors | RJ11，RJ45,BNC, USB |
| Max. signal voltage | 15Vp-p |
| Function and faults LCD display | LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
| Cable map indication | LCD (#1-#8) |
| Shielded indication | LCD ( #9) |

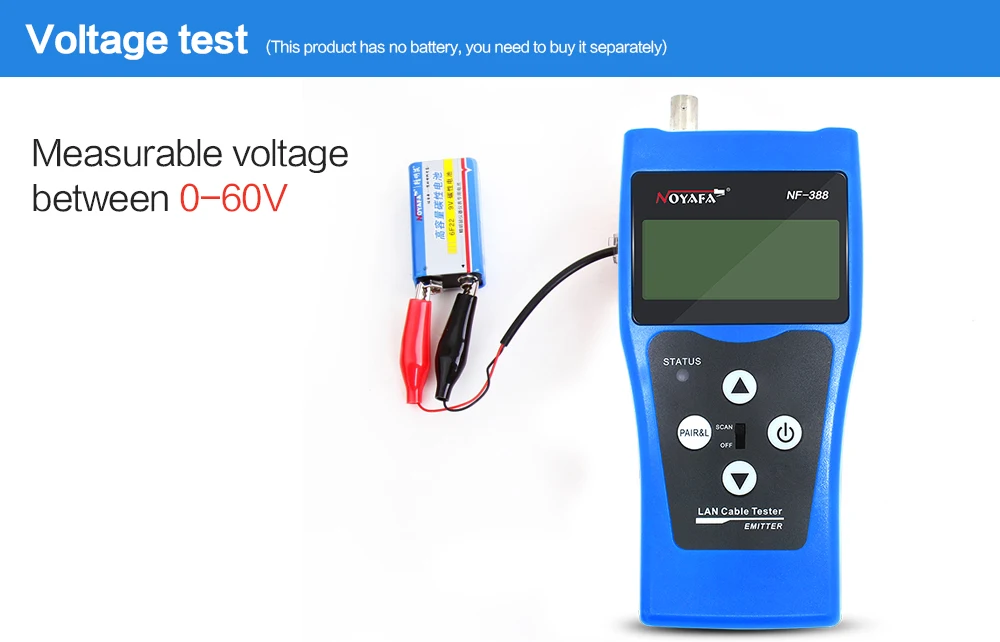

| Voltage protection | AC 60V/DC 42V |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V x 1pcs） |
| Dimension(LxWxD) | 185x80x32mm |

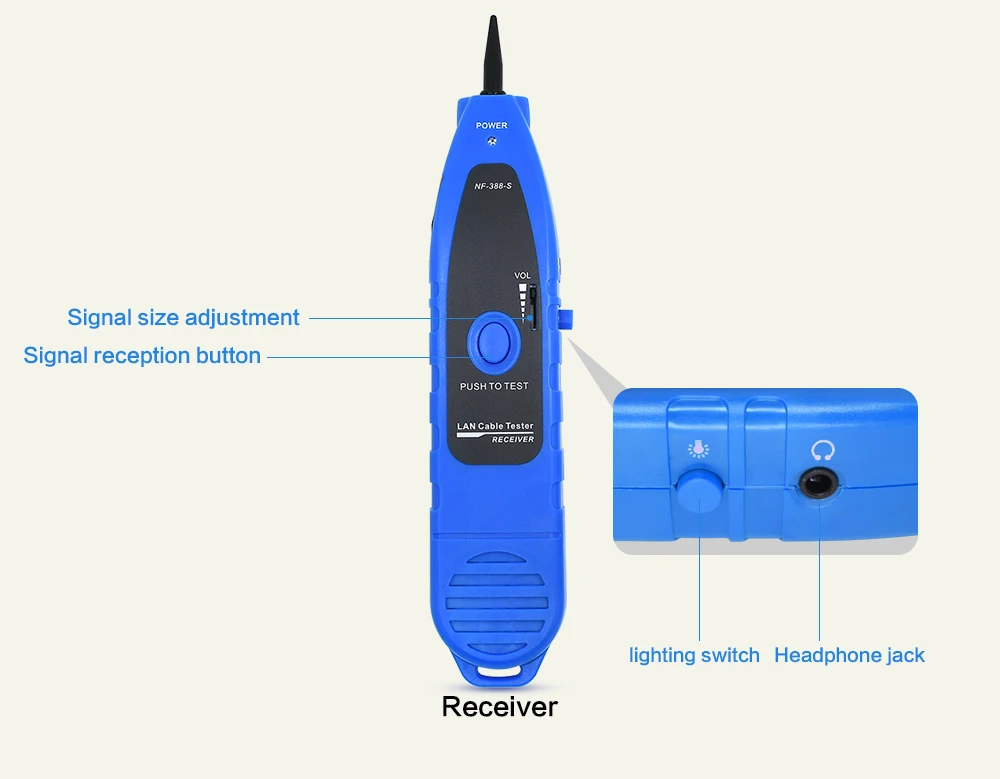

| NF-388 Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Earjack | 1 |

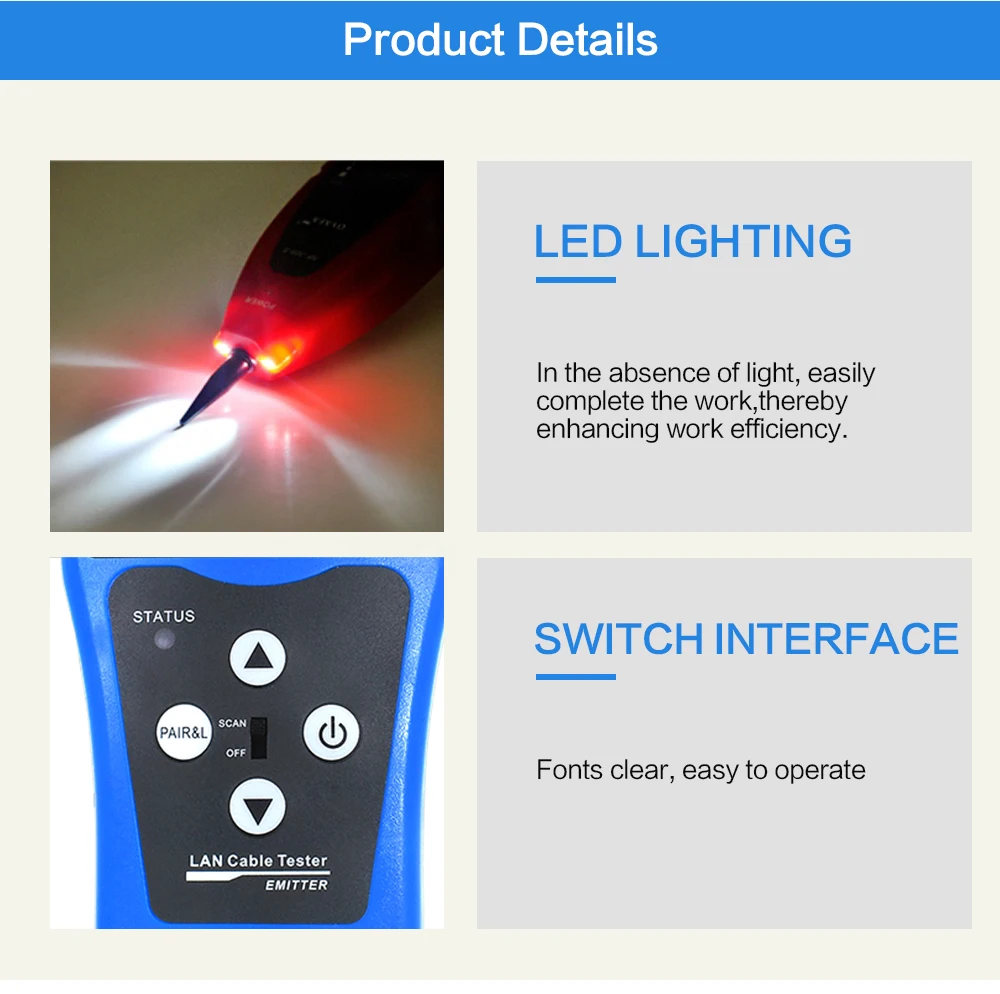

| LED illumination | 2 |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V) x1pc |
| Dimension(LxWxD) | 218x46x29 mm |

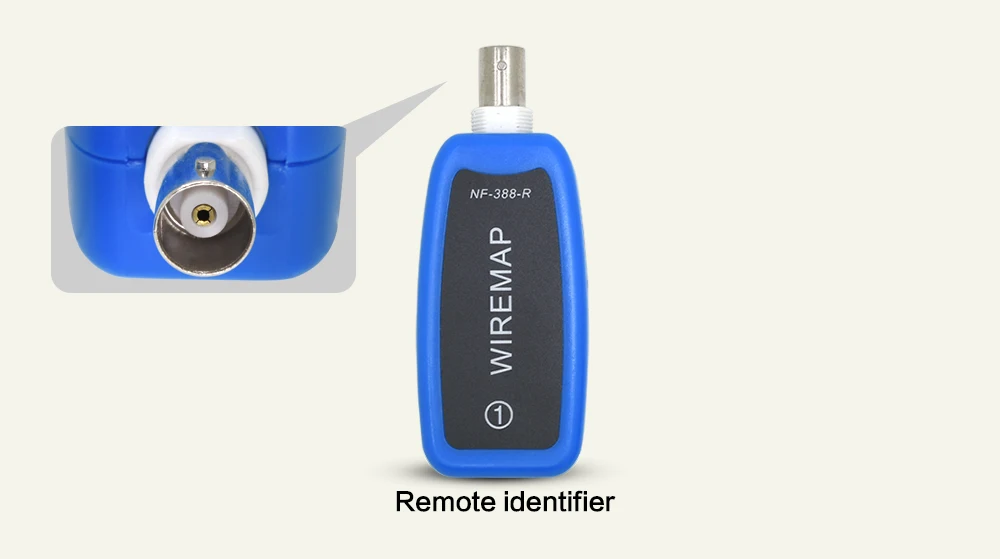

| NF-388 Remote unit specifications | |
| Compatible connectors | RJ11，RJ45,Coacial, USB |
| Remote units | 8 |
| Dimension(LxWxD) | 107x30x24mm |
Function Comparison:
| Function | NF-838 | NF-8208 | NF-308 | NF-388 | NF-868 |
| Find Cables | RJ45+RJ11+BNC USB + 1394 | RJ45 | RJ45+RJ11+BNC USB | RJ45+RJ11+BNC USB | RJ45+RJ11+BNC USB |
| Address Cables | RJ45+RJ11+BNC USB +1394 | RJ45 | RJ45+BNC | RJ45+BNC | RJ45+RJ11+BNC USB |
| Test Length | × | RJ45 | RJ45 | RJ45 | RJ45+RJ11+BNC USB |
| Test cross cables | √ | √ | RJ45+BNC | RJ45+BNC | √ |
| Test short-circuit | √ | √ | RJ45+BNC | RJ45+BNC | √ |
| Test crosstalk | √ | √ | RJ45+BNC | RJ45+BNC | √ |
| Lighting | √ | √ | √ | √ | √ |
| Earphone | √ | √ | √ | √ | √ |
| Anti-jamming | √ | √ | √ | √ | √ |
| Voltage Withstand | √ | √ | √ | √ | √ |
| Tone | 9 types | 1 type | 2 types | 2 types | 1 type |
