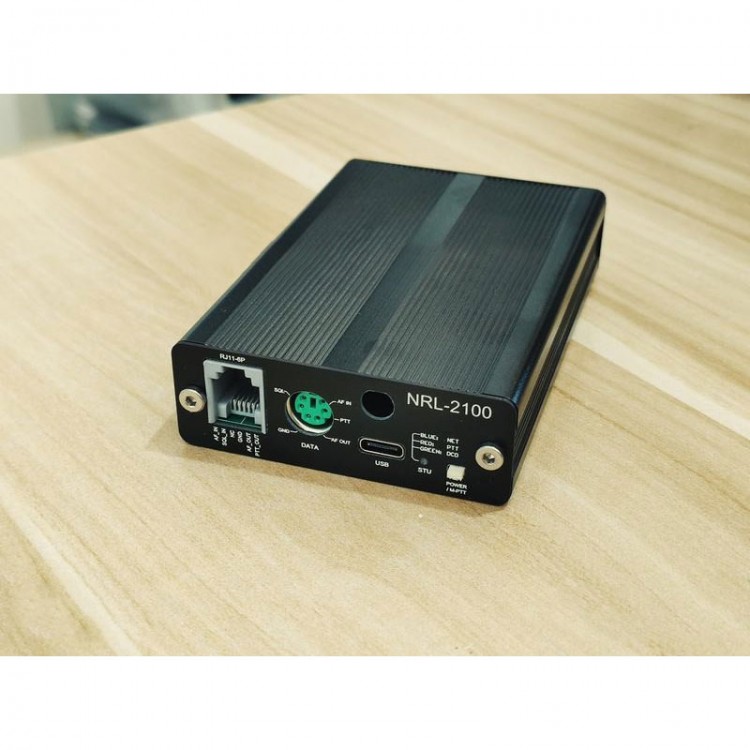

NRL-2100 Host Network Radio Link Trunking Perfect For POC Analog Digital Walkie Talkie Forwarding

NRL-2100 Host Network Radio Link Trunking Perfect For POC Analog Digital Walkie Talkie Forwarding

Advantages:
- Function: It is to connect 2 or more walkie-talkies or relays in different places through the internal network or external network. Regardless of whether it is an analog machine, a public network machine, or a digital machine, as long as there is SP MIC PTT GND signal, it can be connected
- Support in intranet mode: point-to-point, single-point-to-multipoint (broadcast mode), and multipoint-to-multipoint (broadcast mode).
- Support in external server mode: point-to-point, single-point-to-multipoint, and multi-point-to-multipoint
- Handheld walkie talkies are generally connected via microphone port (K head, including SP MIC PTT GND)
- Car walkie talkies are generally connected via microphone port (MIC PTT GND) and the SP port on the back

Description:
NRL-2100 radio network connector is an advanced embedded device designed for the majority of HAMs to send and receive audio through the network and control your transceiver.

It is suitable for trunking, outdoor and indoor intercom signal expansion, factory broadcast, underground communications and other occasions where long-distance intercom connection is required.

Features:
- Integrated standard DATA interface, used to connect FT-7900 radio with DATA port or handheld walkie talkies
- Integrated RJ11 interface for connecting regular car walkie talkies
- Integrated for YAESU/MOTO handheld walkie talkies PTT (MIC compound control) function
- Integrate a SP/MIC 3.5mm 4P composite port
- Integrate a remote control relay output interface
- Integrated 3-color indicator light + RJ45 with dual lights
- A custom button (manual PTT or remote relay switch)
- Built-in pluggable U/V module interface
- Size 100x69x24mm

Attention:
- Support crossover network cable direct connection
- When interconnecting through routers, use a 568B standard network cable
- 2 hosts, when directly interconnected, use a 568A crossover network cable
- Network link for setting, select TCP Client, port number 60030

Package Included:
- 1 x NRL-2100 Host

Optional Accessories:
- DATA 6-pin car walkie talkie cable
- For YAESU handheld mic port jumper
- For Wouxun 920 handheld mic port jumper
- Built-in 1W U module
- Built-in 1W V module
- IC2730 handheld mic port jumper
- K head handheld walkie talkie cable
- 400D 300D 100D data cable
- Relay extension switch

Note:
- The walkie talkie pictured is not included.
- If optional accessories are needed, please contact customer service to pay extra costs. Thank you!
