NRL-2100A Radio Connector Network Radio Link for POC Radio Analog & Digital Walkie Talkie Forwarding
Advantages:
- Function: It is used to connect two or more walkie talkies or relays in different places through LAN or WAN. As long as there is SP MIC PTT GND signal, your walkie talkie can be connected no matter it is an analog walkie talkie, a network radio, or a digital walkie talkie
- In LAN mode, it supports point-to-point, single-point-to-multipoint (broadcast mode), and multipoint-to-multipoint (broadcast mode)
- In WAN mode, it supports point-to-point, single-point-to-multipoint, and multi-point-to-multipoint
- Handheld walkie talkies are generally connected via microphone port (K connector, including SP MIC PTT GND)
- Car mobile radios are generally connected via microphone port (MIC PTT GND) and the SP port on the back
Description:
NRL-2100A radio network connector is designed and manufactured for the majority of HAMs. It is a state-of-the-art embedded device that sends and receives audio and controls the transmission and reception of radio stations over the network.
It is suitable for relay link, outdoor and indoor intercom signal expansion, factory broadcasting, underground communication and other occasions that require long-distance link intercom.
The NRL-2100A supports direct connection via crossover cables. When you use a router for connection, a 568B standard network cable can be used. And a 568A crossover cable is used when two NRL-2100A are directly interconnected.

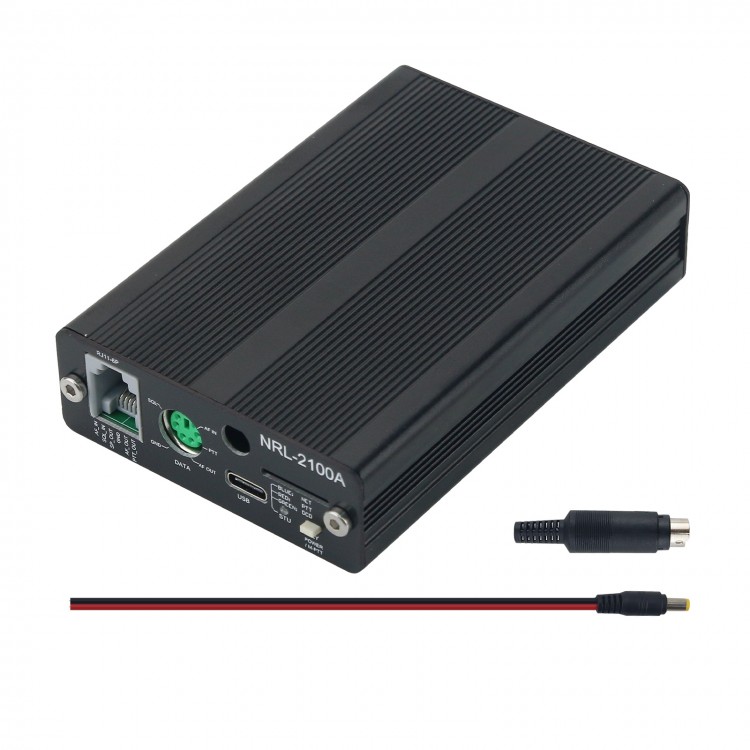

Package Included:
- 1 x NRL-2100A main unit
- 1 x Connector
- 1 x Cable
Packaging Details:
- Weight: 0.4kg
Note:
- Two NRL-2100A must be used at the same time.
- Walkie talkies, mobile radios and other accessories are not included.

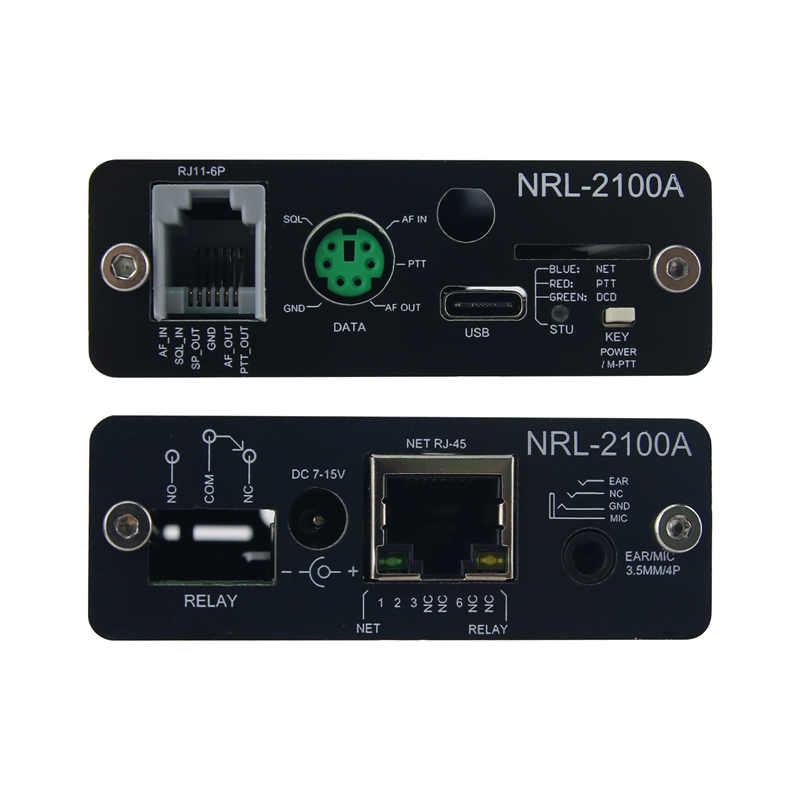

Interfaces:
RELAY: relay switch output interface
* One set of normally closed/normally open, with power-off memory. After powering on, it will return to its pre-power-down state.
DC power supply port:
* DC 7-15V input
RJ45 network port:
* 100M/10M self-adaptive, supporting 568A and 568B network cables
NET indicator lights:
* Stay on: Network cable plugged in
* Off: The network cable is not plugged in
* Note: When the indicator light is off this time, and the main unit is in the PTT transmitting state, the PTT will be forcibly disconnected
RELAY indicator light:
* Stay on: The other side of the relay action
* Off: The other relay is not activated
EAR/MIC (composite headphone out/line input), 3.5mm/4P
Definition:
