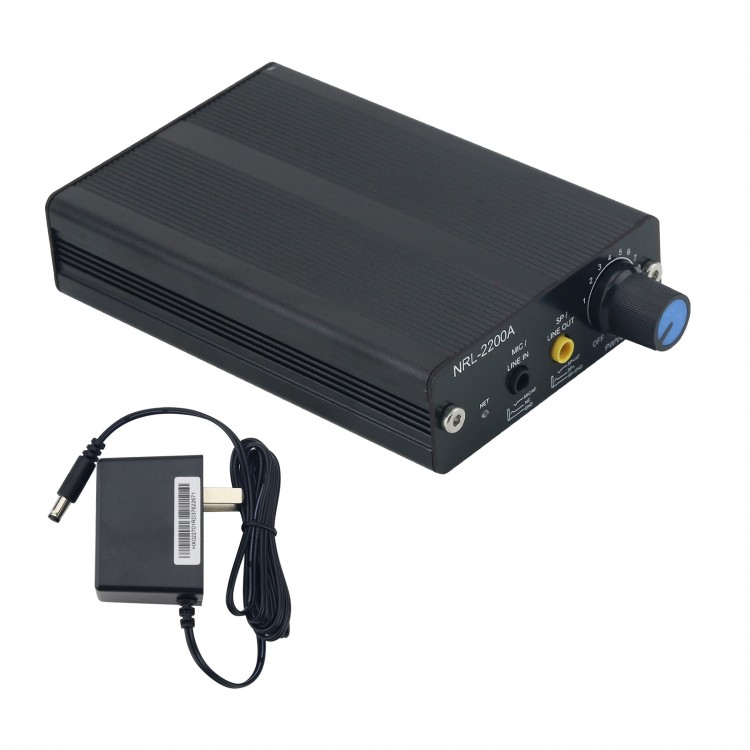

NRL-2200A Network Radio Link Communication Trunking for Walkie Talkie Signal Transceiving Support Mic Input
Description:
- The radio network connector is an advanced embedded device designed and produced specifically for HAMs, which can transmit and receive audio through the network and control radio reception.
- It is suitable for trunking, outdoor and indoor intercom signal expansion, factory broadcast, underground communications and other occasions where long-distance intercom connection is required.
Features:
- Built-in power amplifier, support MIC input, line input
- Support power output, line output
- Support external TALK key
Interfaces:
- DC power port: Inner +, outer -. 5.5/2.1mm, wide power supply input 7-24V
- RJ45 network port: 100M/10M adaptive, support 568A, 568B
- NET indicator light:
Normally On: a network cable is plugged in.
Off: the network cable is not plugged in (Note: when the light is off this time, if the host is in the PTT transmitting state, the PTT Relay indicator will be forcibly disconnected)
- Relay indicator light:
Normally on: the other party's relay is activated.
Off: The other party's relay is not operating
- USB: Type-C interface. Used for setting, firmware upgrade, etc., CH340 driver
- SP OUT: 3.5MM mono headphone output
Package Included:
- 1 x Host
