NRL-D9000 Radio Connector Radio Link Host Box + Panel Box for D9000 Mobile Radio Transceiver

NRL-D9000 Radio Connector Radio Link Host Box + Panel Box for D9000 Mobile Radio Transceiver

Description:

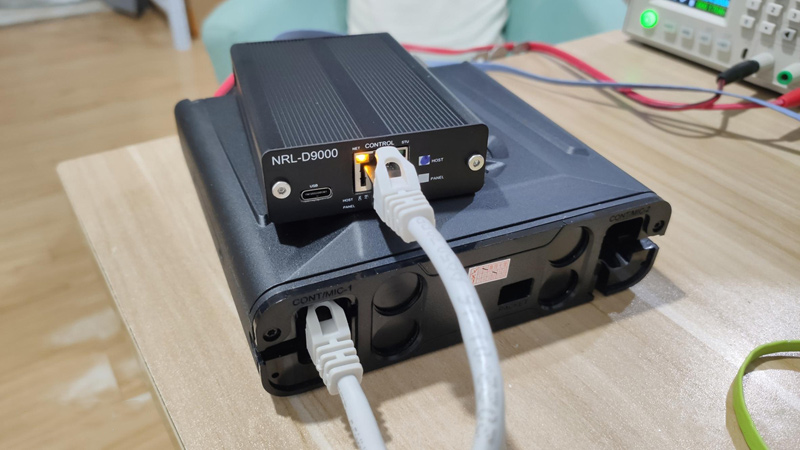

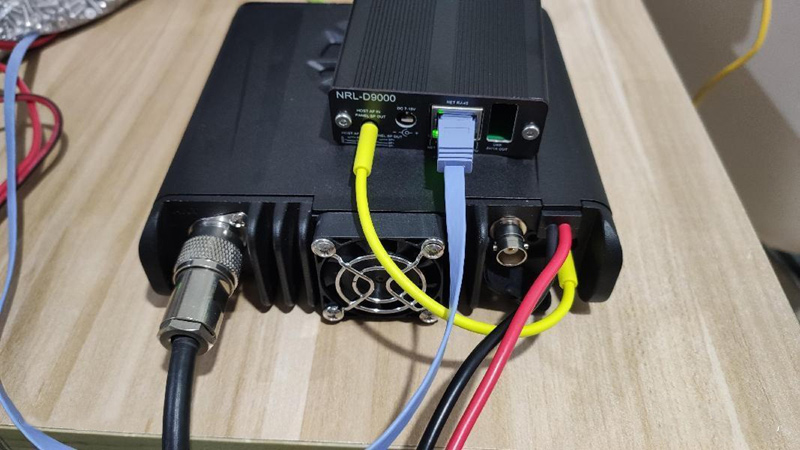

NRL-D9000 is designed for D9000 transceiver. The NRL-D9000 connects the main unit and panel of the mobile radio through the network.

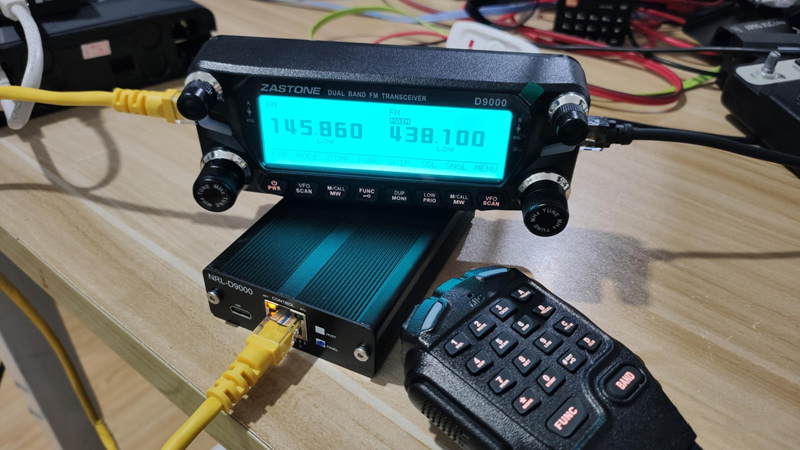

You can put the main unit of the transceiver on the top of the mountain, and put the panel and microphone of the transceiver at home. Through the network connection, remote calling, receiving, frequency adjustment, buttoning, power on and off can be operated.

Attention:
- The use of the product requires certain electrical connection knowledge, computer knowledge, and basic network knowledge.
- Incorrect wiring may cause damage to the product and IC7100.

Network Requirements:
- It uses short-packet communication. LAN delay is about 10ms, and the server data round-trip delay is about 30ms (actually determined by the network environment).
- It uses regular ordinary home broadband.
- The WAN IP obtained by a router can be fixed IP, dynamic IP and virtual IP (non-real WAN IP).
- Using a computer to PING this unit in LAN requires the delay to be as short as possible, less than 5MS. And excessive delay may cause the sound to be intermittent.
- It uses a network cable interface, and interfaces such as WIFI/4G need to be able to convert by themselves.
- It uses automatic flow control. When two-way full-duplex communication is used, the data duplex traffic is about 16KB/s, and the traffic of 1 hour is about 58MB. For in-vehicle 4G applications, users are asked to consider their own traffic.
- When using 4G or WIFI to bridge mobile phone hotspot, poor 4G signal or slow network speed will cause voice stuttering, silent, slow operation, automatic shutdown and other phenomena.
- When the WAN IP addresses obtained by both parties through a router enable PING to each other, the two parties can be connected directly through IP.
- When the WAN IP addresses obtained by both parties through a router do not allow PING to each other, the two parties need to be connected via a server.

Features:
- Support WAN and LAN
- Support full-duplex TTL data transparent transmission and support TTL data cache function
- Bidirectional full-duplex audio transmission, G.711 encoding and bitrate 64Kbps (8KB/s)
- Bidirectional full-duplex control signal transmission
- Support panel operation + handheld microphone
- Built-in real-time traffic calculation
- Automatic audio cache synchronization technology with built-in independent 8K transceiver cache
- RJ45 network port is compatible with 100M/10M and supports direct connection of 568A-568B network cable
- Support DNS domain name resolution and DHCP
- The PANEL box has a built-in 15W D-type (MAX) amplifier that supports driving a 4-ohm speaker
- DC 7-15V wide voltage input
- Integrated USB port for firmware upgrade/setting parameters and network setting parameters
- Support user-independent firmware upgrade and automatically set memory
- Dimensions 100 x 69 x 24mm/3.9 x 2.7 x 0.9"

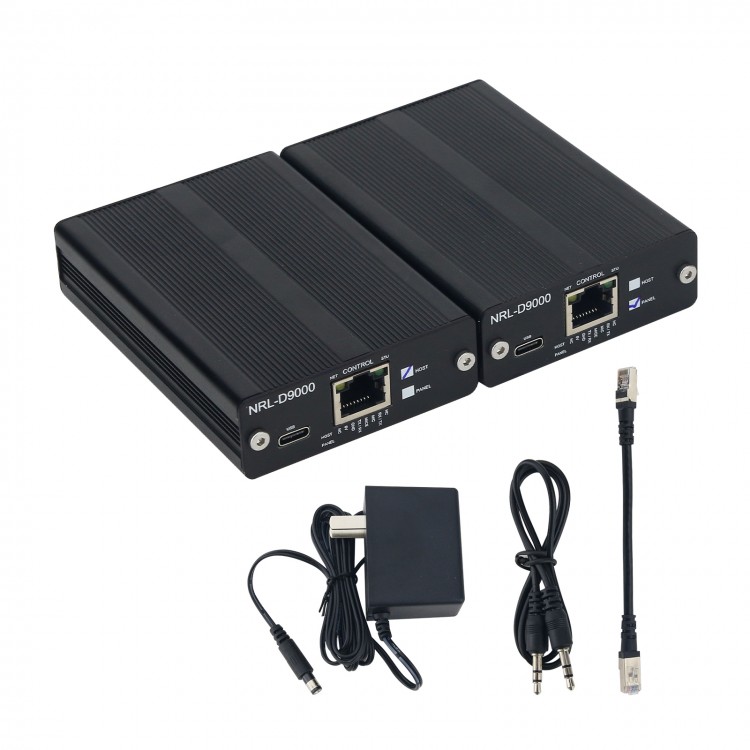

Package Included:
- 1 x HOST box
- 1 x PANEL box
- 1 x Audio cable
- 1 x Network cable

Note:
- Mobile radios and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
