Specification:

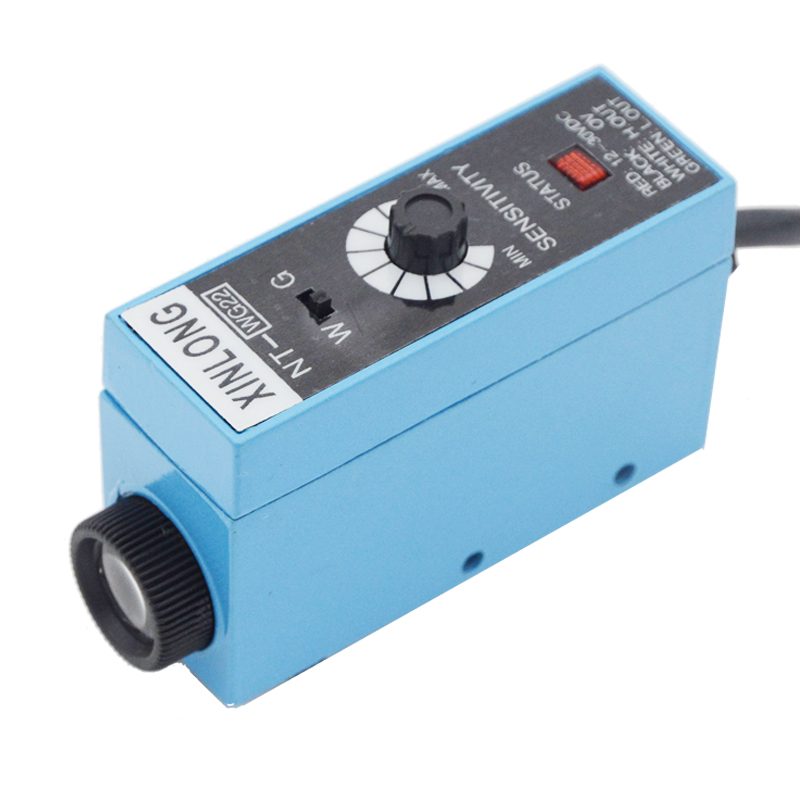

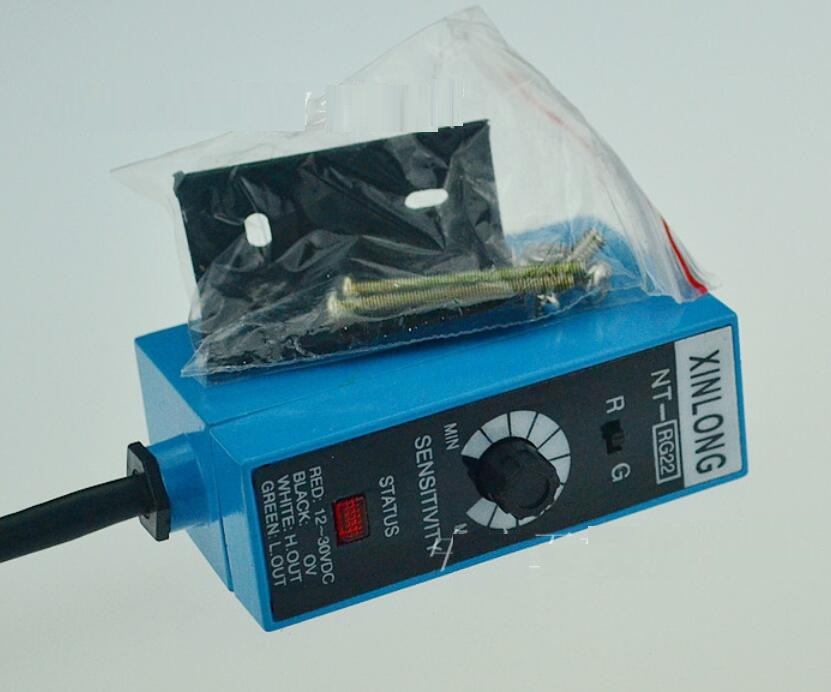

- Model: NT-RG22
- Detection mode: coaxial reflection type
- Detection distance: 12 ± 3mm
- Supply voltage: DC10-30V;Ripple:± 10%
- Light source chromatography:red,blue(red,green,blue,white optional,light spot,round,long strip.optional)
- Detection angle: the allowable deviation of the light and the surface value of the tested object is ± 15,and the response time is 0.1-1MS
- Output mode: bright moving,dark moving
- Output indicator: red LED
- Output voltage: high level VS- (<=1.5) low level<=1.2V;carrying current:100MA
- Analog output: 0-10MA;circuit protection device:VS voltage has reverse polarity protection,the output has short circuit protection,and at the same time with arbitrary line protection.
- Sensitivity: single coil adjustable
- Protection grade: IP67 (dustproof and dampproof)
- Ambient temperature: operation: -15-65 centigrade save: -25-80 centigrade
- Housing material: metal,diameter 6.0 cable;lead wire standard length is 2M
- Screw hole distance:25.4mm
- Size:80x48x28mm(LxWxH)

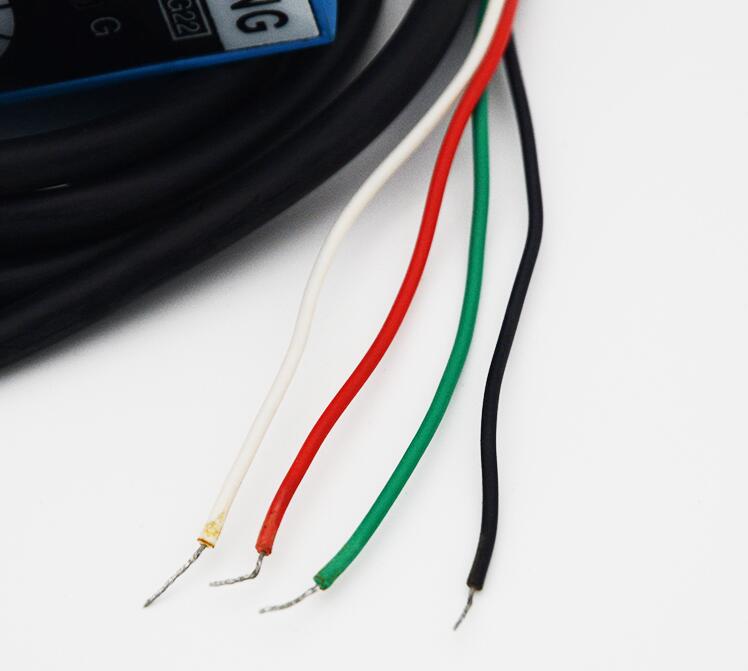

Wiring method:
- Red: positive electrode
- Black: negative pole
- Green: output 1 (bright move)
- White: output 2 (dark move)
Attention: Be sure to check before energizing the power supply fits DC12-24V ± 10%,it does not exceed 40V,otherwise it may damage the photoelectric switch.
Package List:

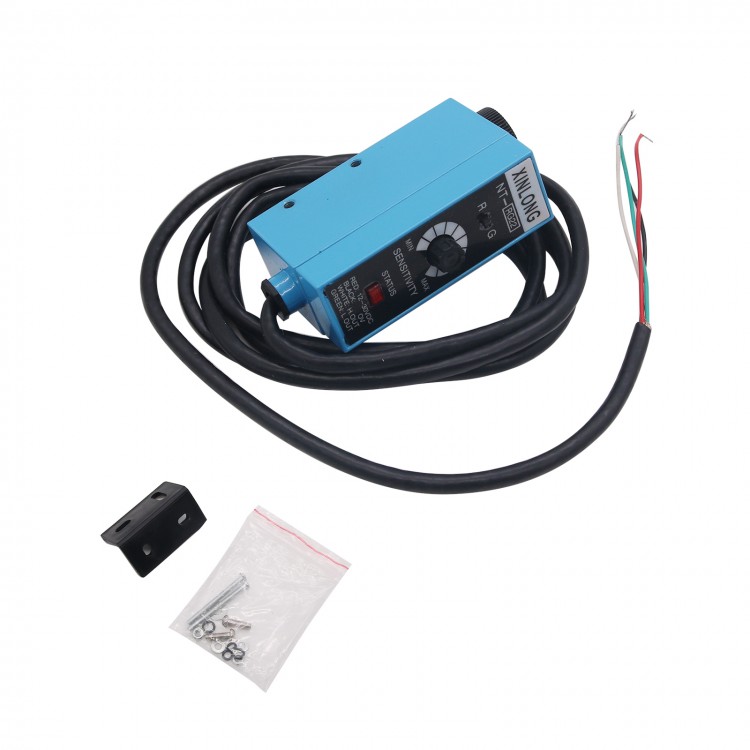

- 1 x Color Mark Sensor
