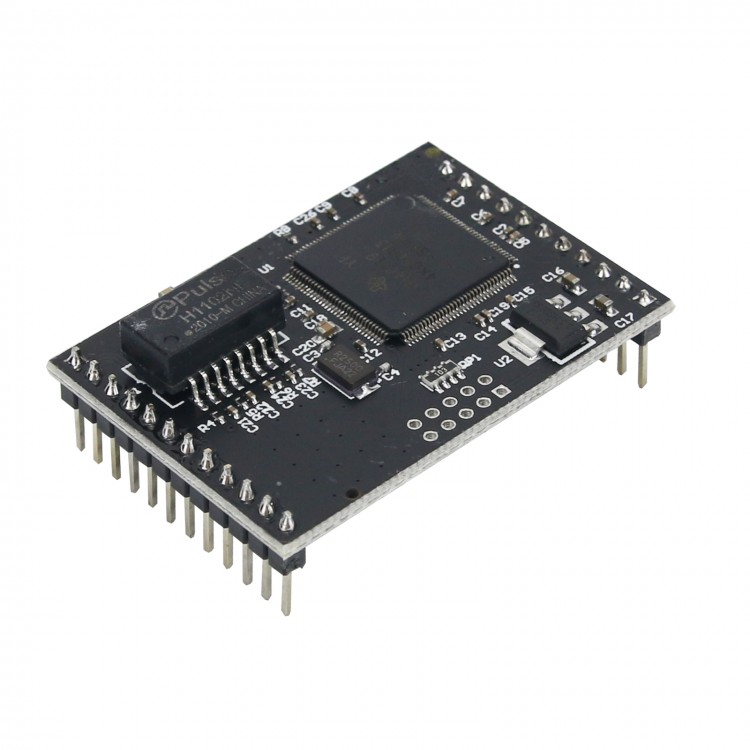

NTP Module Network Time Server Module IP Clock Module Main Frequency 120MHz

NTP Module Network Time Server Module IP Clock Module Main Frequency 120MHz

Description:

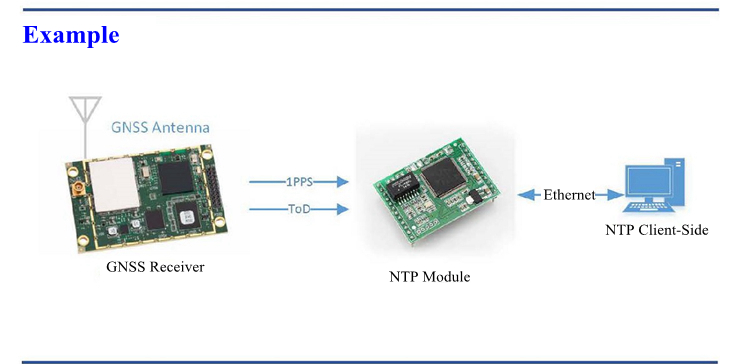

The NTP module is a time server based on NTP (v2, v3, v4)/SNTP protocols. It receives 1PPS+ToD time information from receiver or an external reference source and transmits the information over the network. In this way, devices that require time signals in the network, such as computers, controllers, can synchronize with standard clock signals to implement network timing functions.

The NTP module is designed to save R&D expenses for OEM partners. Thanks to reliable quality and stable performance, the product is popular with users.

Features:
- Compact size but excellent performance
- Cortex-M4 core with main frequency up to 120MHz
- LAN synchronous timing accuracy 0.5-2ms
- NTP v2 (RFC 1119), v3 (RFC 1305) , v4 (RFC 5905)
- SNTP v3 (RFC 1769), v4 (RFC 2030)
- Support MD5 information verification
- Support Server & Broadcast working modes
- Support user-defined MAC address
- Industrial grade operating temperature range
- Free configuration software: Easy to use with simple interface

Technical Parameters:
Electrical Parameters:
- Working Voltage:
  VCC: 3.0-3.6V (3.3V recommended)
  VDD: 5.0-7.0V (5.0V recommended)
- Operating Current: 120mA@3.3V/120mA@5.0V
- Network Port Specifications: RJ45, 10/100Mbps, cross-connection adaptive

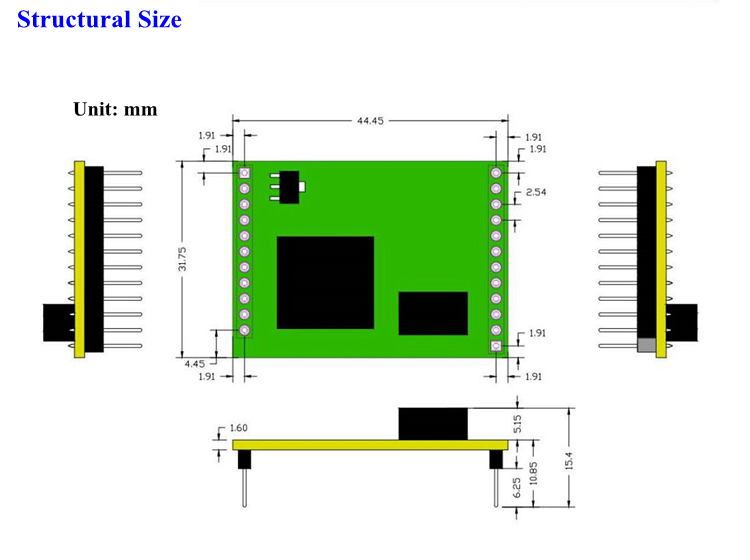

- Encapsulation Way: Pin Package
- Serial Baud Rate: 600-1M(bps)
- Reliability Level: 1.5KV Electromagnetic Isolation
- Operating Temperature: -40 to 85℃
- Storage Temperature: -45 to 105℃
- Working Humidity: 5% to 95% RH (No condensation)
- Storage Humidity: 5% to 95% RH (No condensation)

NTP Parameters:
- Interface: 10/100 Base-Tx
- Interface Standard: Compliance with IEEE-802.3u Standard
- Interface Rate: 10/100M Adaptive
- Interface Connector: RJ-45
- NTP LAN Timing Accuracy: 0.5-2ms
- Support Protocols: NTPv2, NTPv3, NTPv4 and SNTP
- MD5 Information Verification: Yes

Package Included:
- 1 x NTP Module
