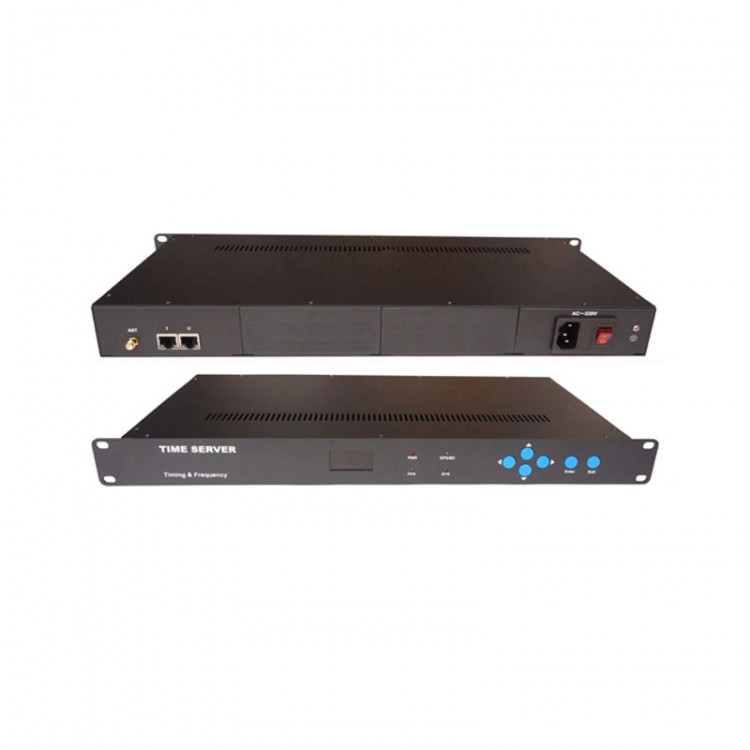

NTP Server Network Time Server 1U Rack Type (2 Network Ports + 20m Mushroom Antenna) for Beidou GPS

NTP Server Network Time Server 1U Rack Type (2 Network Ports + 20m Mushroom Antenna) for Beidou GPS

Description:
This NTP time server is a safe, reliable and high-precision network time server. It is easy to install. Its interface supports Ethernet 10/100Mbps. And the network time accuracy is better than 50ms (queries per second is more than 5000 times/second). This product has strong robustness in operation. When the timing module fails in a certain period of time or the antenna fails, the system can automatically enable the timing mechanism to ensure that the NTP server can work continuously and reliably. When the timing module or antenna turns normal, the system can recover the time synchronization accuracy by itself.

Features:
- High-precision network timing: ≤ 50ms
- Rich interfaces: 10/100M network port (optional RS485, RS232 and IRIG-B code)
- Broad coverage: Deployable at scale
- High sensitivity GPS/Beidou signal reception
- It supports cross-network segment timing, providing timing services for tens of thousands of clients
- Display and buttons make it more intuitive and convenient to use
- Power supply and other parameter indication LEDs allow users to monitor system status
- SMD technology
- Industrial-grade design with high reliability
- Password protection prevents unrelated personnel from modifying device information
- It can continue to provide timing service after power failure. The server time can be set by users

Application Scenarios:
- Communication base stations
- Surveillance, traffic and electricity
- Computer network synchronization
- Finance and IT
- Scientific research and calibration labs

Specifications:
1. NTP Indicator:
- Number of channels: Optional 2CH/4CH/6CH/8CH/10CH
- Transmission rate: 10M/100M
- Network bandwidth: < 2M
- Timing mode: Server mode and broadcast mode are supported
- Timing protocols: NTP v1.v2.v3&v4 and SNTP (RFC1119&1305, RFC2030), etc.
- Interface: Rj45
- Single-line transmission distance: < 150 meters

2. GPS/Beidou Indicators:
- Frequency: BDSB1 (1561.098MHz) and GPS L1 (1575.42MHz)
- Acquisition time: < 10s for hot start and < 60s for cold start
- Timing accuracy: better than 30ns
- Physical interface: SMA/BNC

3. General Indicators:
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +80°C
- Operating humidity: < 95% (non-condensing)
- Size: 19-inch 1U chassis
- Weight: 2.5kg/5.5lb
- Power supply: AC~220V
- Power consumption: < 10W
- Mean time between failures: >100,000 hours

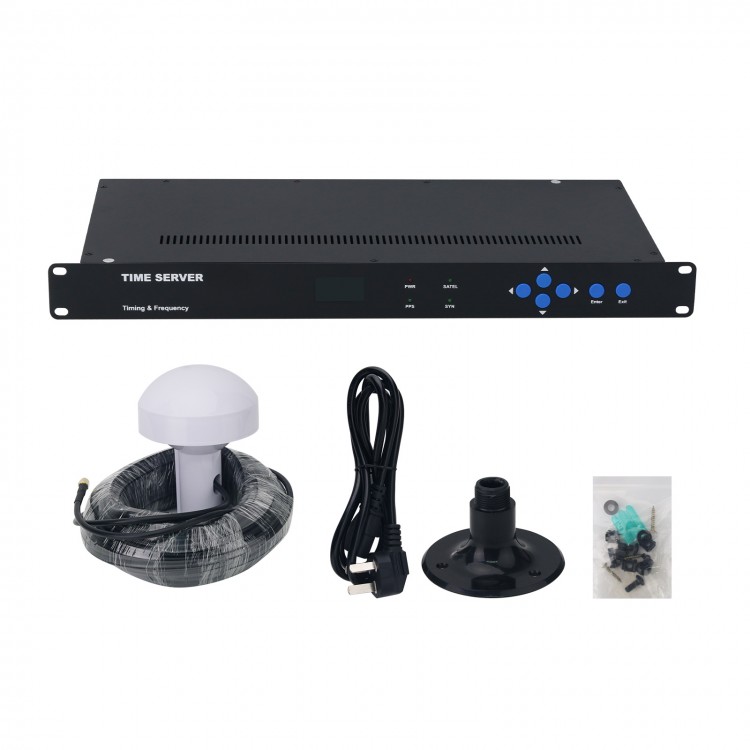

Package Included:
- 1 x Set of Time Server

Packaging Details:
- Weight: 3.95kg
