NUX AMP Force Modeling Amplifier Simulator Guitar Pedal Electric Effect Pedal for Musical Instrument

NUX AMP Force Modeling Amplifier Simulator Guitar Pedal Electric Effect Pedal for Musical Instrument

Features:
- 12 sorts of guitar amplifier modeling, various choice to match your need.
- Designed with 2 output channels, 12 cabinet simulator, built-in noise gate and 3-band EQ, provided a fantastically musical feast.
- Color TFT LCD panel(128*128), graphic interface make the overall operation easy and intuitive.
- With 9 storable user presets, you can have a good preparation before performance.
- 2 alternative bypass: buffered bypass and true bypass, you can choose one of them according to your need.
- Aluminum alloy housing, good durability.
- The pedal can be powered by a 9V battery or power adapter.(neither included)

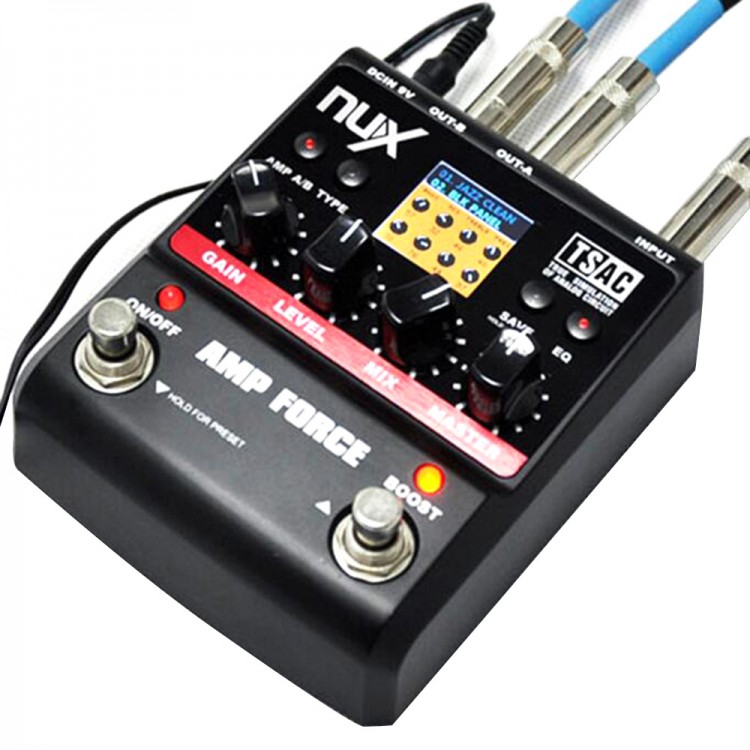

Diagram of AMP Force:
- On / Off switch
- Boost(Preset) switch: In manual mode, press footswitch to boost the signal level 6dB(double the volume); In preset mode, increments the presets.
- Indicator LED: Indicate status of effect
- Boost LED: Indicate status of boost
- Gain: Control gain of each model; controls bass in EQ section
- Level: Control output level of each model; control mid-range frequencies
- Pan: When both outputs are used, you can set a ratio of the singal sent to OUT-A and OUT-B
- Master: Control master volume of pedal; control Presence in the EQ section
- Type: Scroll through the twelve amp models
- Save: Activate the save function
- AMP A/B: Choice AMP A or AMP B
- EQ: Adjust tone of amp models
- LED display: Display all effect parameters and the preset number
- Out-A jack: Connect force to amp
- Out-B jack: Connect force to amp
- Input jack: Connect force to guitar
- Power in

Specifications:
- Material of housing: Aluminum alloy
- Effect types: 12 modeling guitar amp models
- Presets: 9 storable user presets plus manual mode
- Sampling frequency: 44.1 kHz
- A/D converter: 24-bit
- Signal processing: 32-bit
- Frequency response: 20Hz-20kHz ±1dB
- THD+N: 93dBu (<0.003%) A-Weighting
- Dynamic Range: 100dB
- Input: -20dBV, 1MΩ
- Output: -10dBV(Output load impedance of 10K Ohms or more)
- Display: 128 * 128 TFT
- Power: 9V DC (9V battery, ACD-008A adapter) (neither included)
- Product size: 12.7 * 10.8 * 3.9cm / 5 * 4.2 * 1.5in
- Product weight: 398g / 14oz

Package List:
- 1 * AMP Force
- 1 * User Manual
