NUX Phaser Core Phase Shifter Modulation Stomp Effect Pedal Tone Lock Preset Function True Bypass Guitar Effect Pedal

NUX Phaser Core Phase Shifter Modulation Stomp Effect Pedal Tone Lock Preset Function True Bypass Guitar Effect Pedal

Features:
- 4-stage and 8-stage.
- Tone lock function, disable knobs function to ensure preset won't change during performance.
- True bypass design, minimize loss of tone and get more control of pedal.
- Aluminum alloy housing, good durability.
- 4 control knobs: Rate, depth, mix, feedback.
- The pedal can be powered by a 9V battery or power adapter.(neither included)

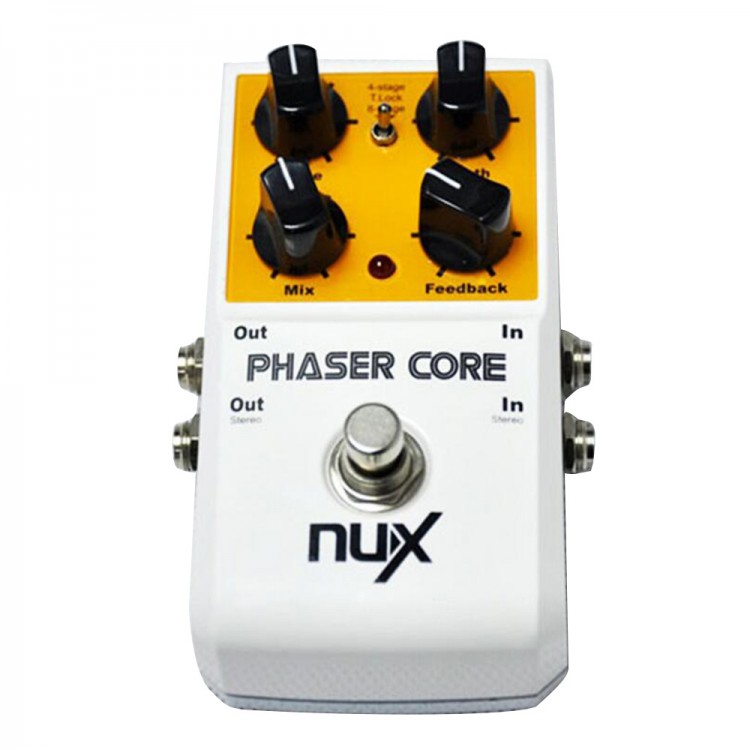

Diagram of Phaser Core:
- Power in
- Rate knob: Control the speed of phaser effect
- Mix knob: Adjust the effect level
- Out jack: Connect core to guitar's amp
- Out stereo jack: Connect core to guitar's amp
- On / Off switch
- Tone lock & variable toggle switch: Select 4-stage or 8-stage; freeze current by switching it to middle position
- Depth knob: Control the depth of phaser effect.
- Feedback knob: Control feedback of the short modulated delay
- Indicator LED: Indicate status of effect - On / Off
- Input jack: Connect core to guitar
- Input stereo jack: Connect stereo device

Specifications:
- Presets: 1 storable user preset
- Sampling frequency: 44.1 kHz
- A/D converter: 24-bit
- Signal processing: 32-bit
- Frequency response: 20Hz-20000Hz ±1dB
- THD+N: 93dBu (<0.003%) A-Weighting
- Dynamic range: 100dB
- Input: -20dBV 1MΩ
- Output: -10dBV (output load impedance of 10kΩor more)
- Power: 9V DC (9V Battery or ACD-007A Adapter)(neither included)
- Product size: 12.1 * 6.5 * 3.3cm/ 4.8 * 2.6 * 1.3in
- Product weight: 304g / 10.7oz

Package List:
- 1 * Phaser Core
- 1 * User Manual
