NVIDIA Jetson Nano Xavier TX2 NX Carrier Board Development Board Support SD/TF Card Boot

NVIDIA Jetson Nano Xavier TX2 NX Carrier Board Development Board Support SD/TF Card Boot

Important:
- It is 100% compatible with the official device tree, but some functions can only be started by brushing the Weact device tree. Please refer to “Nano&Xavier-TX2 NX Carrier-Board Document” (which does not affect the original system) for the device tree brushing tutorial. You can contact the customer service for guidance.

Nano&Xavier-TX2 NX Carrier-Board Document:
- Github：https://github.com/WeActTC/Nano_TX2-Xavier_NX-CB

Updated Log:
- 2022.01.22: Support SD/TF Card Boot.
- 2022.01.02: The new MiniPCIE->M2 switch board is available. It supports 2230/2242 nvme protocol m.2 interface SSD, and the read-write rate can reach 300m/s.
- 2022.01.01: Tutorial update, system backup and recovery tutorial, and system migration to nvme SSD tutorial (with WeAct minipcie2m2 board).
- 2022.12.17: Thanks to Rbb666 open source carrier shell, which can be used for 3D printing.
- 2021.09.25: The new gold sinking lead-free carrier board is launched with rich peripherals and is compatible with many NVIDIA Jetson core boards such as nano / TX2 NX / xaiver NX.

Description:
- Jetson Nano / TX2NX / Xavier NX module is an AI supercomputer suitable for embedded systems and edge systems launched by NVIDIA. It is small in size and low in power consumption. It is suitable for UAVs, portable medical devices, small robots, intelligent cameras, high-resolution sensors, automatic optical detection High performance AI systems such as smart factories and other IOT embedded systems.

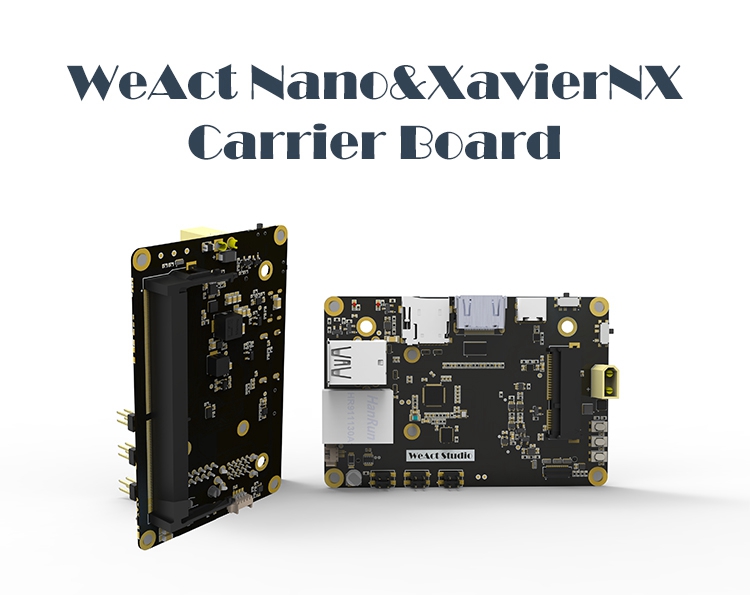

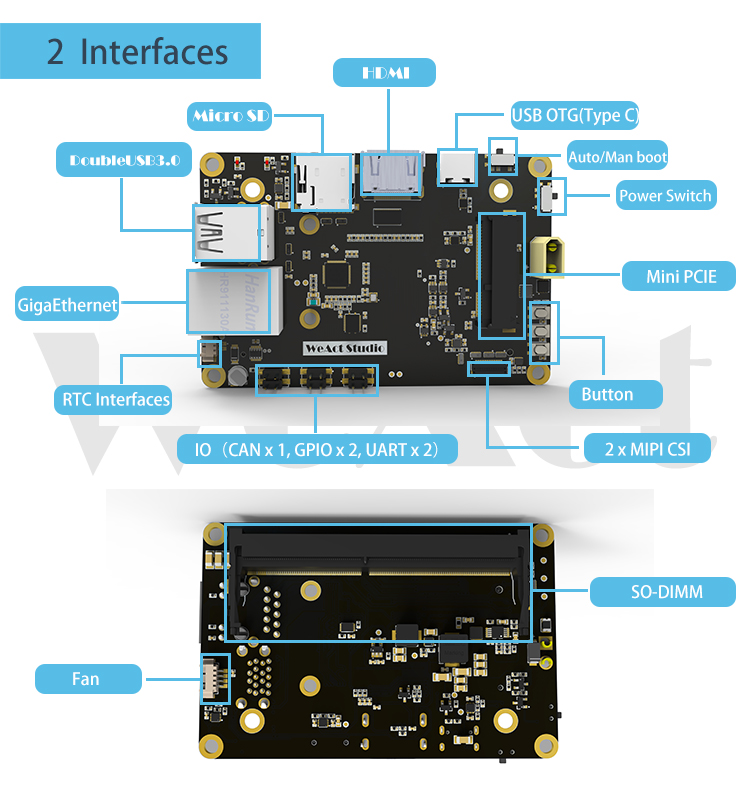

- The carrier board launched by Weact studio can meet the needs of wide voltage input (supporting 6S battery), with complete power protection and discharge circuit, on-board USB3.1 hub chip / Mini PCIe / SD / can, and rich interfaces.

Parameters:
- Module: Jetson Nano&Xavier NX&TX2 NX
- Voltage: 7V~26V (Support 6S Battery)
- Power: 25W
- Temperature: 0℃~70℃
- Size: 90 x 60 x 24mm
- Weight: 58g
- Characteristic: Support Auto Boot/Sleep/Shutdown long press
  Support OPP/OVP/OCP Protection
  Support peripheral power protection/full interface ESD protection/discharge circuit
  Onboard PCIe wireless WiFi/4G network card

Package Included:

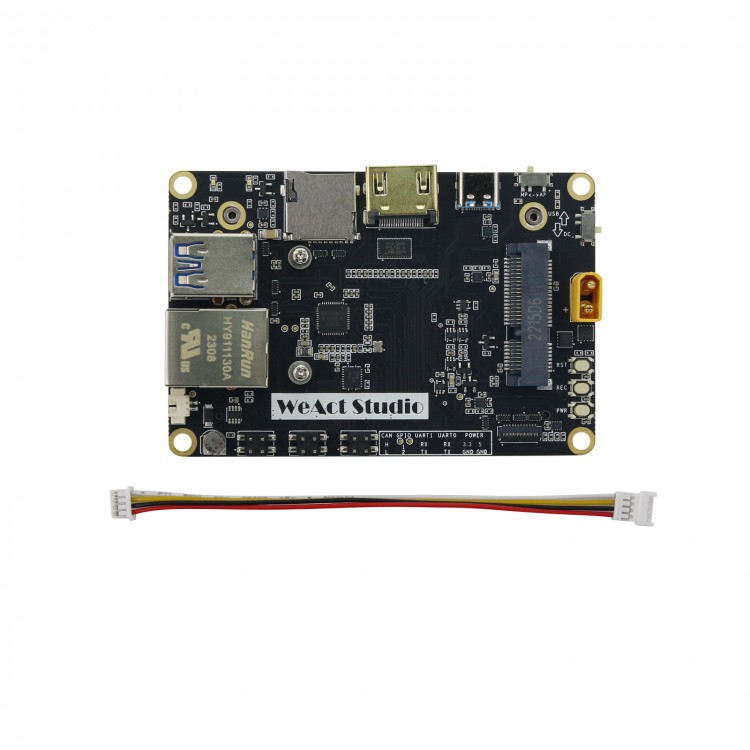

- 1 x Board

Note:
- Battery is not included.
