NWT4000-2PRO 35M-4.4G Sweep Simple Spectrum Analyzer Generator Frequency Sweeper

NWT4000-2PRO 35M-4.4G Sweep Simple Spectrum Analyzer Generator Frequency Sweeper

New Advantages:
- This the the upgraded version.
- Change to DCDC ,reduce heating,the old version is liner,heating is too much.
- Reduce current.older version is about 0.3A,new version is about 0.11A.
- Increase the  dynamic.
- Reduce noise.

Specification:
- Freuqnecy range:35MHz-4.4GHz,step 1kHz
- RF output power:-5DBM
- MAX input power:-5dBM
- Sweep time 4 second/550 point
- Interface: USB/SMA
- POWER:DC12V/0.5A
- Control software:WINNWT4
- Size:118*64.5*23.5mm
- Weight:300 g
- STEP:2.2G-4.4G/1kHz; 1.1G-2.2G/0.5kHz; 550M-1.1G/0.25KHz; 275M-550/0.125KHz;
137.5M-275M/62.5Hz, 68.75M-137.5M/31.25Hz; 35M-68.75M/15.625Hz
- Accessory:USB CABLE 1PCS ,SMA  CABLE 2PCS ,DISC 1PCS

Instructions: Click here

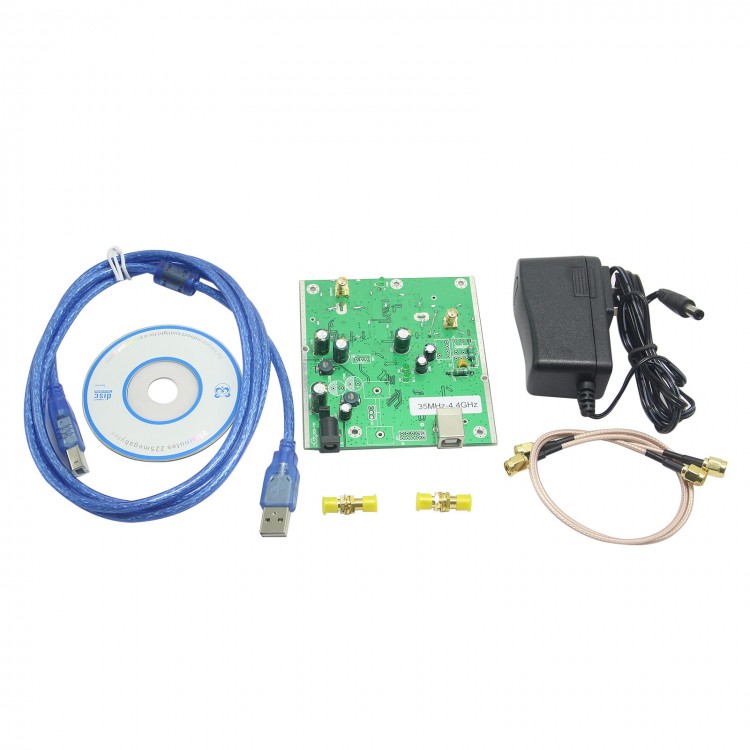

Package included:
- 1 x Frequency Sweeper
- Accessories
