NWT500 BNC Frequency Sweep Analyzer Amplitude Frequency Meter DC12V 50K to 550M USB Interface
Sweep analyzer application manual: Click here
Specification:
- Name : NWT500 Sweep analyzer, amplitude-frequency characteristic analyzer
- Frequency range :0.05M-550MHz,
- Stepping : 1Hz
- Output signal strength : 4dBm
- Logarithmic Dynamic range: better than 50db
- Linear detection range :0-1V EMF
- Interface : USB, BNC
- Power Supply : DC11.5-12.5V / 0,5 A
- Control Software : WINNWT4 V4.08.02
- Size:：40.5*97*178mm
- Features: supports logarithmic , linear detection, with 0-50DB attenuator ,
- Capable of impedance , VSWR ( impedance VSWR bridge need to meet with ) other functions measurement
- 4-layer design

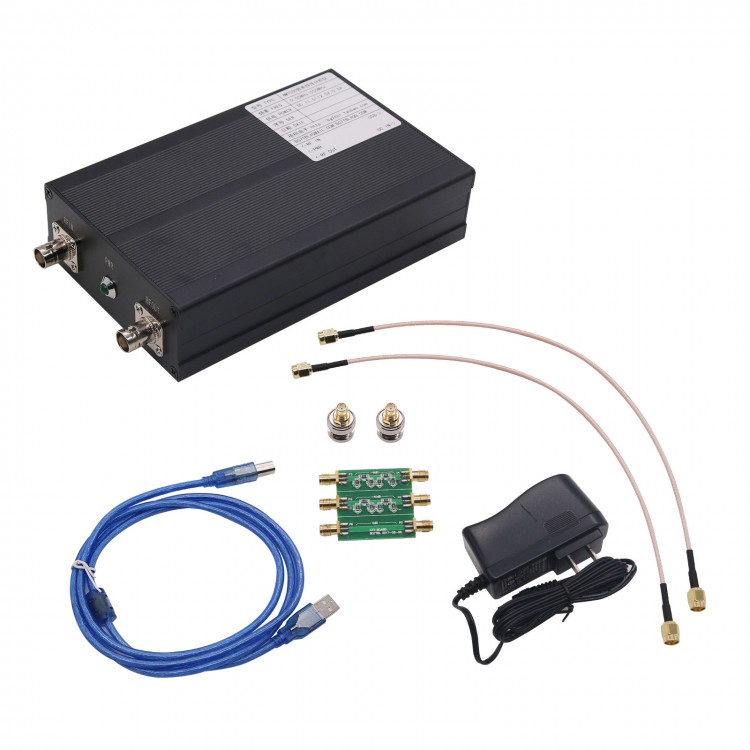

Package list:
- 1 x NWT500-BNC Frequency Sweep Analyzer
- 1 x AC 100-200V-DC12V power adapter
- 2 x SMA line
- 1 x USB cable
- 1 x CD
- 2 x BNC-SMA converter
