NWT500-BNC2 Frequency Sweep Meter Amplitude Frequency Analyzer with SWR 1M to 500M Standing Wave Ratio Bridge
Specifications:
- Name: NWT500 Sweep analyzer, amplitude-frequency characteristic analyzer
- TYPE: NWT500-BNC2
- Frequency range: 0.05M-550MHz,
- Stepping : 1Hz
- Output signal strength: 4dBm
- 2-Logarithmic Dynamic range: better than 50db
- 2-Linear detection range: 0-1V EMF
- Interface: USB, BNC/SMA
- Power Supply: DC11.5-12.5V / 0,5 A
- Control Software: WINNWT4 V4.08.02
- Machine size: 40.5*97*190mm
- Total weight: less than 1kg.
Features:
- Supports logarithmic , linear detection, with 0-50DB attenuator
- Capable of impedance , VSWR ( impedance VSWR bridge need to meet with ) other functions measurement
- 4-layer design
SWR bridge 1M to 500M Standing Wave Ratio Bridge:
- Impedance : 50 Ohm
- Directional : better than 30DB
- Frequency range : 0.5MHz-500MHz
- Maximum input power : + 13DBM

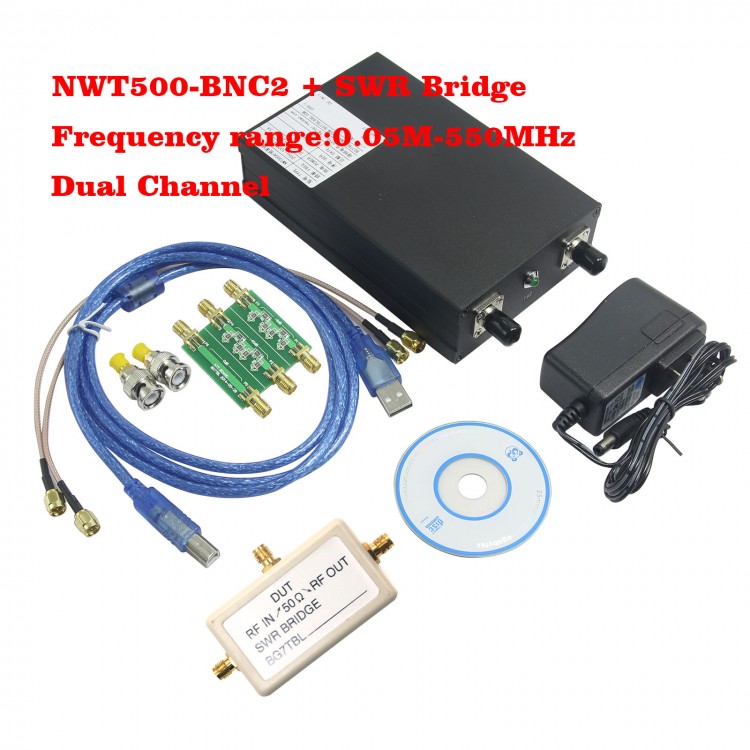

Package Contents:
- 1 x NWT500-BNC2 Sweep Analyzer
- 1 x AC(100-220)V-DC12V powert adapter
- 2 x SMA cable
- 1 x USB cable
- 1 x CD
- 1 x Attenuator
- 1 x SWR bridge
- 2 x BNC-SMA converter
