NWT6000 25M-6G Frequency Sweeper Sweeping Signal Generator Simple Spectrum Analyzer Network Analyzer
More information: Click here
Sweep Analyzer Application Manual
Specification:
- 25M-6G sweep,simple spectrum analyzer,generator.
- Model : sweep simple spectrum analyzer,simple signal generator
- Freuqnecy range:25MHz-6GHz，
- Step: 3G-6G/5K,1.5G-3G/2.5K,0.75G-1.5G/1.25K,25M-750M/0.625K
- RF output power:-3DBM
- MAX input power:-5dBM
- Sweep time 4 second/550 point
- Connect :USB/SMA
- POWER:DC12V/0.5A
- Control software:WINNWT4
- Size:：41*97*168mm（with N connect）
- Weight: 800g

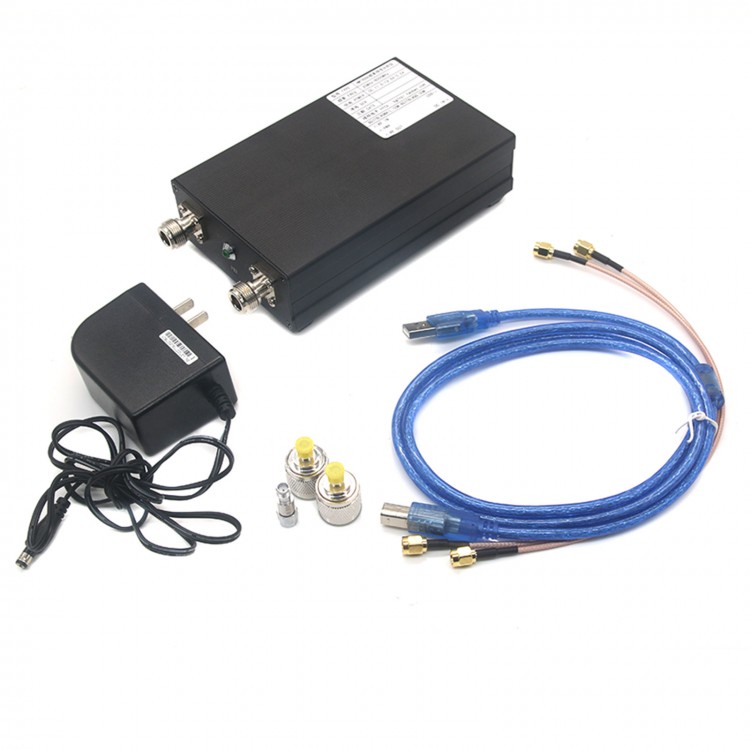

Package List:
- 1 x Frequency Sweeper
- 1 x USB Cable
- 2 x SMA Cables
- 1 x 40DB Attenator
