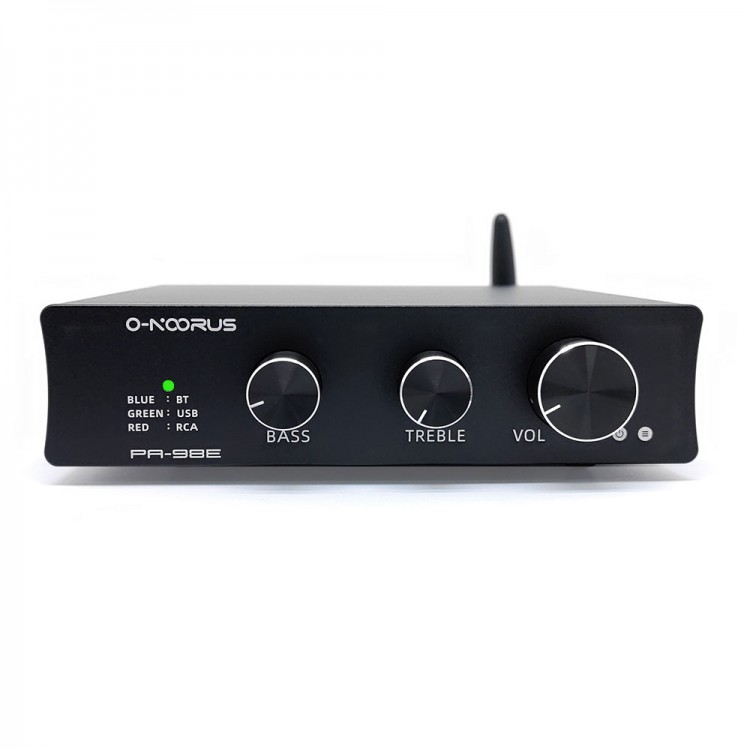

O-NOORUS PA-98E TDA7498E 160Wx2 Hifi Audio Digital Power Amplifier Power Amp Bluetooth Amplifier
Product Introduction:
- Hifi-level Bluetooth stereo 2.1-channel home theater amplifier with exquisite appearance and excellent performance parameters.
- It adopts an electronic volume control chip NJW1194 from Japan. High level of integration to avoid interference from other signals.
- Built-in TDA7498E using PBTL architecture with power up to 160Wx2 (4Ω 24V power supply)
Properties:
- Model: PA-98E
- Input: Bluetooth, PC-USB, RCA and USB
- Output: passive speakers, subwoofer and active speakers
- Amplifier IC chip: TDA7498E
- Electronic volume: NJW1194
- Treble/Bass: NJW1194
- Power adapter: DC24/6.5A
- U disk support: WAV/APE/FLAC/MP3
- Bluetooth version: 5.0, supporting SBC and AAC

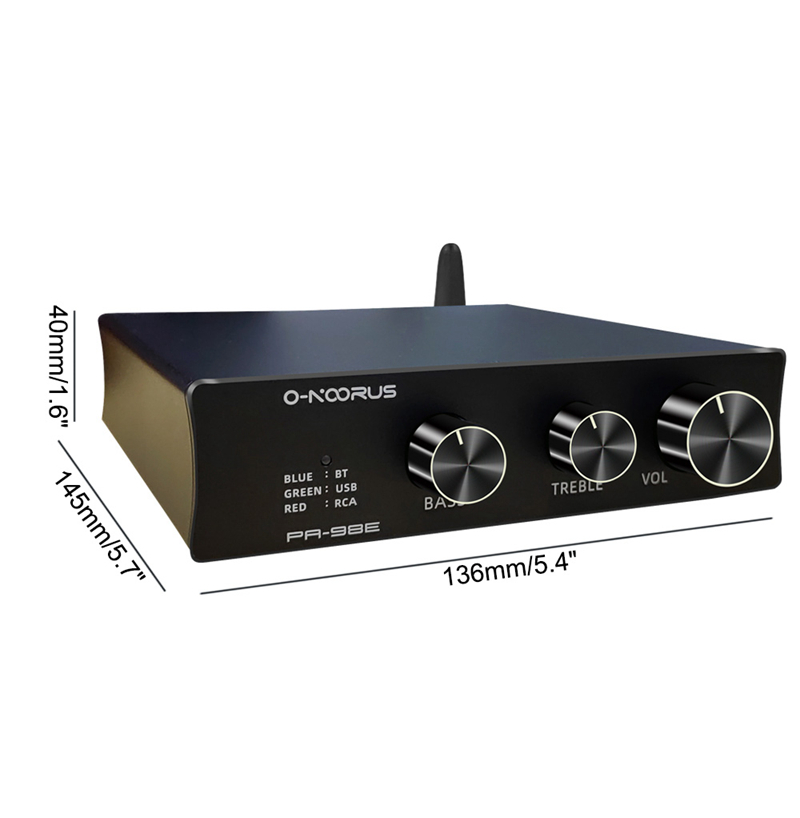

- Size: 145 x 136 x 40mm/5.7 x 5.4 x 1..6"
Performance:
- Frequency range: 10Hz-30kHz
- Input sensitivity: 200mv
- THD+N Ratio: 0.34%
- THD+N Level: 7.626 mVrms
- THD Ratio: 0.357%
- THD Level: 12.788 mVrms
- Signal to Noise Ratio: 90.974 dB
- Noise Level: 208.1 uVrms
- Maximum power: 160W * 2 (4Ω)
- Terminal impedance: 2 Ohms - 8 Ohms
Package Included:
- 1 x PA-98E amplifier
- 1 x 24V 6.5A power adapter
- 1 x USB data cable
- 1 x Bluetooth antenna
- 1 x Manual
